Panic Bar (PBE003)
Verified by manufacturer 10 months ago

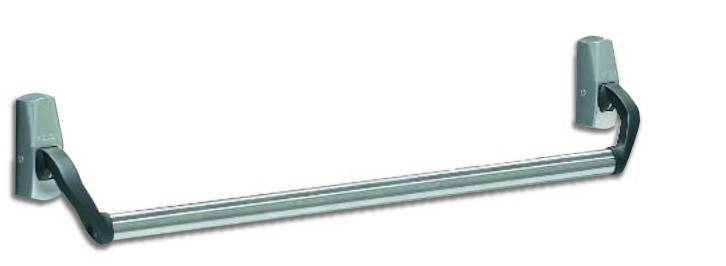

Exit door panic bar for narrow profile panic exit doors.
Application
Suitable for narrow profile panic exit doors.
Description
Exit door panic bar for mechanical and electromechanical lock cases, tested and certified to EN 1125.
Features and benefits:
- Available in satin chrome finish.
- Standard length of the bar is 900 mm.
- Several alternative finishes available for the fittings.
- Includes security plate for the outside.
General information
Color | Silver |
Finish | Chrome Satin Guidance for specification option: Chrome. Brushed Guidance for specification option: Nickel. Antimicrobial Guidance for specification option: Coating - ACTIVE Val/ Mus/ Har/ Gra. |
Material | Steel |
Size | Guidance for specification option: Standard length of bar. |

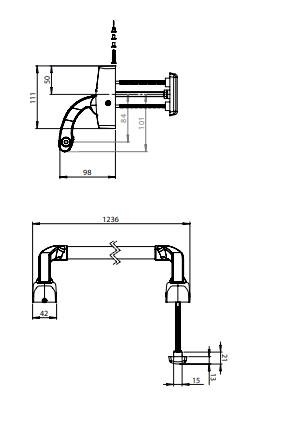

Length | 98 mm |
Width | 900 mm |
Height | 111 mm |
Uniclass | |
CAWS | P21/32 Panic exit devices P21/577 Panic exit devices |
Specification data - Panic exit devices
Standard | To BS EN 1125. |
Classification grades (minimum) | |
Suitability for use on fire and smoke doors | To BS EN 1125, grade 1. |
Material and finish | Chrome plated steel.Satin chrome plated steel.Brushed nickel plated steel.Antimicrobial coating, steel.Guidance for specification option: ACTIVE - Val/ Mus/ Har/ Gra. |
Colour | Self-coloured. |
Execution | Fasteners for hardware. |
Product Reference | Panic Bar (PBE003) |
Literature
Exit Hardware
