PAS 68 HVM Terra Blocker – 7.5t at 30 mph - HVM Crash Terra Blocker
Verified by manufacturer 2 months ago
Secured By Design
Certificate type
PAS 68 HVM Terra Blocker – 7.5t at 30 mph.
Application
Suitable for high security sites such as banks, embassies, bullion depots, cargo parks, ports and lorry parks.
Description

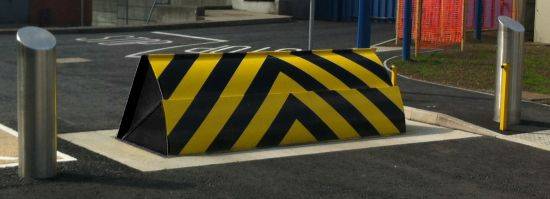

The Terra Blocker has been impact tested to BSi PAS 68 Specification, stopping a 7.5 tonne vehicle travelling at 30 mph. Hydraulically driven hostile vehicle mitigation (HVM) blocker. Classification code: 7.5 t at 30 mph. V/7500[N2]/48/90:0.0/0.0.
The system includes a hydraulic control cabinet, which is recommended to be installed within 10 m of the road blocker system. Operational speed of 4–6 seconds. Extra fast operation available, contact manufacturer for more information. Blocker foundations are dependent on length requirements, contact manufacturer for more information.
Features and benefits:
- All made to order with size and safety system options available depending on individual site risk assessments.
- Compliant with BS EN 13849.
- Secured by Design and a PSSA verified product.
- Listed on the CPNI List of IWA 14 and PAS 68 products.
General information
Color | Black Yellow |
Finish | Painted Guidance for specification option: Shot blasted, hot zinc sprayed, primed and finished with a final coat of polyurethane paint. This process provides a 20-year corrosion protection system for exterior, industrial non-polluted inland sites to BS 5493. |
Material | Steel |
Shape | Other Guidance for specification option: Wedge. |
Length | Bespoke |
Width | Bespoke Manufacturer guidanceup to 5000mm |
Height | 810 mm |
Warranty description | One year |
Uniclass | |
CAWS | Q41/210 Vehicle flow plates Q41/212 Vehicle stops |
Product range |
Specification data - Rising kerbs
Standard | In accordance with PAS68 and PAS69. |
Mounting type | Recessed.Guidance for specification option: Deep. |
Method of operation | Hydraulic. |
Dimensions | |
Height | 5000 x 810 mmGuidance for specification option: Lift height 810 mm. |
Span | Manufacturer guidanceInsert requirement. 5000 mm maximum. |
Material | Steel. |
Finish | |
Applied finish | Polyurethane painted.Guidance for specification option: Hot zinc sprayed, primed and finished with a final coat of polyurethane paint. This process provides a 20-year corrosion protection system for exterior, industrial non-polluted inland sites to BS 5493. |
Colour | Black and yellow. |
Electrical supply | 400 V a.c.Manufacturer guidanceThree phase. |
Accessories | None.100 mm-diameter red/ green LED traffic light head with monitored safety circuit.Anti-tamper alarms.Extra fast operation.Guidance for specification option: Contact manufacturer for details. High Security Cabinet.Warning sign. |
Safety | Not required. Audible alarms. Flashing beacons. Induction loop/ vehicle detector loop system. Laser. |
Power fail operation | Accumulator. Guidance for specification option: Allows a number of operations in power failure mode. Manual hand pump. Guidance for specification option: Standard. |
Access control | ANPR – Automatic number plate recognition. Audio intercom. Biodegradable oil. Card reader. GSM intercom. |
Sustainability data
Contains Red List materials | No |
Country of material origin | United Kingdom |
Country of product manufacture | United Kingdom |
Recyclability | 100 |
Recycled contentAs defined in clause 7.8 of BS EN ISO 14021 | 100 % |
Third party certifications
Secured By Design
Secured by Design accredited
Literature
IWA 14 & PAS 68 HVM Terra Blockers
