PAS 68 HVM Terra Surface Mounted Blocker – 7.5t at 50 mph - HVM Surface Mount Blocker

Verified by manufacturer 21 days ago

Frontier Pitts Ltd Third party certifications:
  • Secured By Design

    Secured By Design

    Certificate type

PAS 68 surface mounted blocker – 7.5t at 50 mph.

Jump to:
+44 (0)1293 548301 Website

Application

Suitable for high-security sites such as banks, embassies, bullion depots, cargo parks, ports and lorry parks.

Description

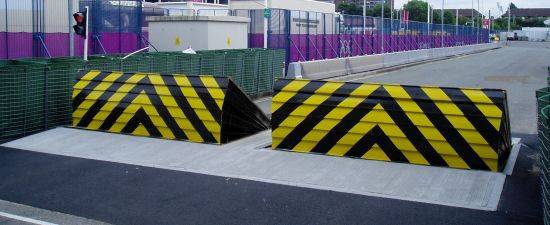

The Surface Mount Blocker has been impact-tested to PAS 68, stopping a 7.5-tonne vehicle travelling at 50 mph. Hydraulically-driven hostile vehicle mitigation (HVM) blocker. V/7500[N3]/80/90:0.0/7.6. Compliant with BS EN 13849, A PSSA verified product, Secured by Design approved and listed on the CPNI List of IWA 14 and PAS 68 products. The system includes a hydraulic control cabinet, which is recommended to be installed within 10 m of the road blocker system. Blocker foundations are dependent on length requirements; contact the manufacturer for more information.


Features and benefits:

  • All made to order with size and safety system options available depending on individual site risk assessments.
  • The operational speed is 4–6 seconds. Extra fast operation is also available; contact the manufacturer for more information.

General information

Color

Black

Yellow

Finish

Painted

Guidance for specification option:

Shot blasted, hot zinc sprayed, primed and finished with a final coat of polyurethane paint. This process provides a 20-year corrosion protection system for exterior, industrial non-polluted inland sites to BS 5493.

Material

Steel

Length

Bespoke

Width

Bespoke

Height

1100 mm

Warranty description

One year

Uniclass

Pr_25_30_86_72 Rising kerbsPrimary

CAWS

Q41/210 Vehicle flow plates

Q41/212 Vehicle stops

Product range

Anti Terra HVM (Hostile Vehicle Mitigation) IWA14 & PAS68

Specification data - Rising kerbs

Standard

To PAS68/ 69.

Mounting type

Surface mounted.

Method of operation

Hydraulic.

Dimensions

-

Height

1100 mm.

Guidance for specification option:

Lift height.

Span

-

Manufacturer guidance

Up to 4000 mm; insert requirement.

Material

Steel.

Finish

-

Applied finish

Polyurethane painted.

Guidance for specification option:

Shot blasted, hot zinc sprayed, primed and finished with a final coat of polyurethane paint. This process provides a 20-year corrosion protection system for exterior, industrial non-polluted inland sites to BS 5493.

Colour

Black and yellow.

Electrical supply

400 V a.c.

Manufacturer guidance

Three phase.

Accessories

None.

100 mm-diameter red/ green LED traffic light head with monitored safety circuit.

Anti-tamper alarms.

Extra-fast operation.

Guidance for specification option:

Contact manufacturer for details.

High security cabinet.

Warning sign.

Actuation

Hydraulically driven.

Safety

Audible alarms.

Flashing beacons.

Induction loop/ Vehicle detector loop system.

Laser.

Photocell.

Show more

Power fail operation

Accumulator.

Guidance for specification option:

Allows a number of operations in power failure mode.

Manual hand pump.

Guidance for specification option:

Standard.

Access control

ANPR – Automatic number plate recognition.

Audio intercom.

Biodegradable oil.

Card reader.

Digital keypad.

Show more

Sustainability data

Contains Red List materials

No

Country of material origin

United Kingdom

Country of product manufacture

United Kingdom

Recyclability

100

Recycled content

As defined in clause 7.8 of BS EN ISO 14021

100 %

Third party certifications

Secured By Design

Secured By Design

Secured by Design accredited
