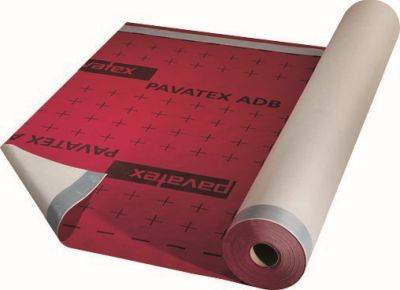

Pavatex ADB

Verified by manufacturer 5 months ago

Soprema UK

Permeable sarking membrane with self-adhesive strips.

Jump to:
+44 (0)330 058 0668 Website

Application

Used on Pavatex sarking boards and with Pavatex over-rafter insulation systems on Swisstherm/ Pavatherm and Swisstherm-Combi/ Pavatherm-Combi.

Description

A permeable sarking membrane with two-way integrated self-adhesive strips. The longitudinal joints are glued using the integrated two-way self-adhesive strips. The transverse joints are glued with Pavatape 12. Screws and nails are sealed with Pavafix SN Band. Connections and penetrations are sealed with Pavtex sealing products. If mechanically secured, it can be left exposed to the weather for four months.


Features and benefits:

  • Approved and tested sarking membrane with many years of practical experience for increased requirements.
  • Proof against wind, water and driving rain, can be exposed to the weather for four months.
  • Efficient installation with two-way integrated self-adhesive strips and verified system accessories.
  • CE marked to BS EN 13859-1.

General information

Material

Polypropylene

Guidance for specification option:

Three-layer polypropylene composite.

Size

1.5 x 50 m

3 x 25 m

Uniclass

Pr_25_57_65_60 Plastics sheetsPrimary

CAWS

P10/310 Air and vapour control layer

Product range

Pavatex Membranes

Specification data - Plastics sheets

Material

Polypropylene.

Guidance for specification option:

Three-layer polypropylene composite.

Performance characteristics

-

Tensile strength (minimum)

Longitudinal, 270 N/50 mm / Transversal, 230 N/50 mm.

Tear resistance

110 N.

Elongation to break

35%.

Fire performance

To BS EN 13501–1, Class E.

Physical properties

-

Dimensions

-

Thickness (minimum)

0.5 mm.

Width (minimum)

1.5 m.

Guidance for specification option:

50 m long.

3 m.

Guidance for specification option:

25 m long.

Roll length (minimum)

25 m.

Guidance for specification option:

3 m long.

50 m.

Guidance for specification option:

1.5 m long.

Sd value

0.05 m.

Specific weight

150 g/m².

Resistance to water penetration

W1.

Temperature resistance

-40 to +100°C.

Dimensional stability

Longitudinal, 0.1% / Transversal: 0.2%.
