Pavatex Pavadry
Verified by manufacturer 5 months ago

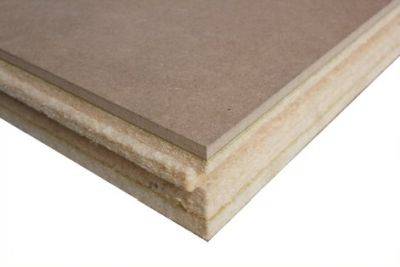

Insulation board with integrated vapour control bonded with hardboard.
Application
To prevent the formation of damaging moisture.
Description
A natural, ecological, innovative thermal insulation board based on wood fibre bonded with hardboard for dry fit installation. The integrated vapour control, together with the hygroscopic properties of the wood fibre, ensures a controlled moisture transport which prevents the formation of damaging moisture.
Features and benefits:
- Multi-layer insulation board with integrated vapour control.
- Moisture buffering properties for a pleasant indoor environment.
General information
Finish | Manufacturer guidanceStandard plaster board. |
Material | Wood fibre Hardboard |
Size | 1200 x 600 mm |
Uniclass | |
CAWS | P10/212 Insulation fixed across inner face of stud walling P10/217 Insulation slabs fixed to backing wall P10/220 Sound insulation within timber framed separating wall |
Product range |
Specification data - Wood fibre batt insulation
Thickness | 51 mm.Guidance for specification option: 1.2 m²K/W thermal resistance. 71 mm.Guidance for specification option: 1.65 m²K/W thermal resistance. 91 mm.Guidance for specification option: 2.1 m²K/W thermal resistance. |
Density | 180 kg/m³ / 740 kg/m³.Guidance for specification option: Insulating board / Composed board. |
Edges | Tongued and grooved. |
Thermal conductivity (maximum) | 0.043 W/mK. |
Reaction to fire (to EN 13501-1) | Class E. |
Water vapour diffusion resistance | 25 μ / 60 μ. Guidance for specification option: Insulating board / Composed board. |
Compressive Strength (at 10% deformation) | 70 kPa. |
SpecificHeatCapacity | 1700 J/kgK / 2100 J/kgK. Guidance for specification option: Composed board / Insulating board. |
