Pendock Ducting - MCFDT Multi Compartment - Floor Screed Ducting System

Verified by manufacturer 4 months ago

Pendock Third party certifications:
  • Constructionline Gold

    Constructionline Gold

    Certificate type

Floor ducting system for electrical services within a floor screen.

Jump to:
+44 (0)1952 580 590 Website

Application

For carrying data, telecom and power wiring within and across screeded floors in separate compartments.

Description

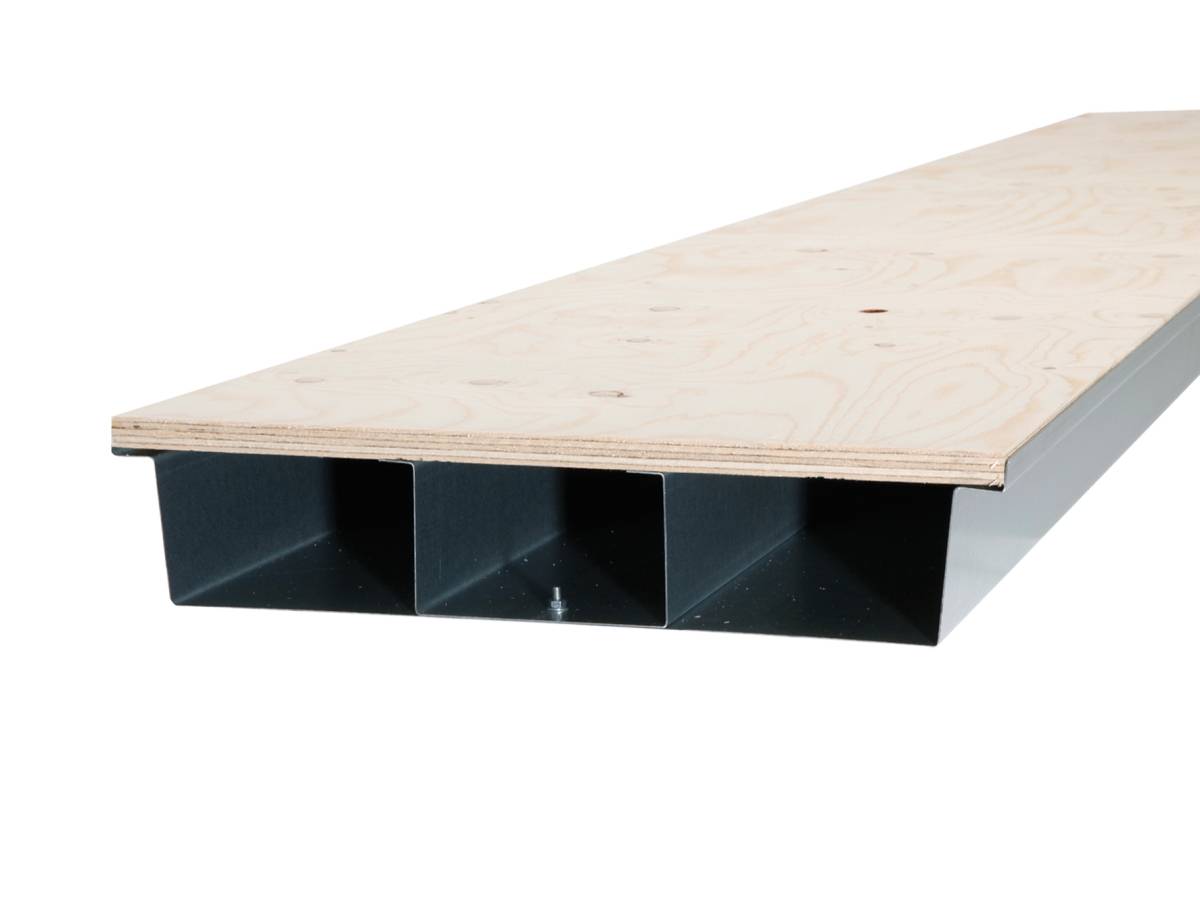

A purpose-made duct designed for carrying data, telecom and power wiring within and across screeded floors in separate compartments, whilst allowing easy access for maintenance and replacement during the life of the building.


Features and benefits:

  • Floor finishes can be laid over the installation, with subsequent access gained by the use of hand tools.
  • It is permissible to lay continuous floor finishes, including tiling and carpeting, over the duct cover board, provided that building plans identify the location of the duct.
  • The tray section and dividers are produced from 22 gauge hot-dipped galvanized carbon steel, to BS 2989 class Z2 and linked by location to an integral fixing and earthing stud detailed along the tray length.
  • Once fixed, compartmentalization is achieved, offering equal divisions of 110 mm, giving a nominal overall working space width of 335 mm (standard size).
  • The cover board is produced from 12 mm plywood to BS 1203.
  • Floor ducts are available to suit screed depths of 35 and 70 mm.
  • Non-standard ducting can be supplied to virtually any size.

General information

Color

Silver

Finish

Galvanized

Guidance for specification option:

Hot dipped galvanized steel tray with plywood cover board.

Material

Steel

Plywood

Shape

Trapezoid

Length

2500 mm

Width

Bespoke

Height

Bespoke

Uniclass

Pr_65_70_11_31 Floor-mounted cable trunking and ductingPrimary

CAWS

P31/300 Floor ducting/ trunking

Specification data - Floor-mounted cable trunking and ducting

Standards

To BS 2989, class Z2.

Access method

With tools.

Accessories and fittings

-

Types

None.

Corner junctions.

Guidance for specification option:

Complete with flyovers, each leg length 625 mm.

Flyover four way length, 1250 mm.

Stop ends.

Tee junctions.

Guidance for specification option:

Complete with flyovers, each leg length 625 mm.

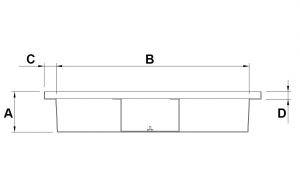

Depth

35 mm.

70 mm.

Finish:

Hot dipped galvanized steel tray with plywood cover board.

Width

335 mm.

Length

Tray is 2500 mm and plywood lid is 2440 mm.

Sustainability data

Contains Red List materials

No

Country of material origin

United Kingdom

Country of product manufacture

United Kingdom

Material

Steel

Plywood

Recyclability

Galvanized steel can be recycled easily with other steel scrap in the electric arc furnace (EAF) steel production process. Zinc volatilises early in the process and is collected in the EAF dust that is then recycled in specialist facilities and often returns to refined zinc production.

Recycled content

As defined in clause 7.8 of BS EN ISO 14021

95 %

Third party certifications

Constructionline Gold

Constructionline Gold

Constructionline Gold

Literature

Floor Ducting

Floor Ducting
