Perforated door Access Panel
Verified by manufacturer 5 months ago
Single Door - 2280 x 1000 mm
Single Door - 2280 x 1000 mm

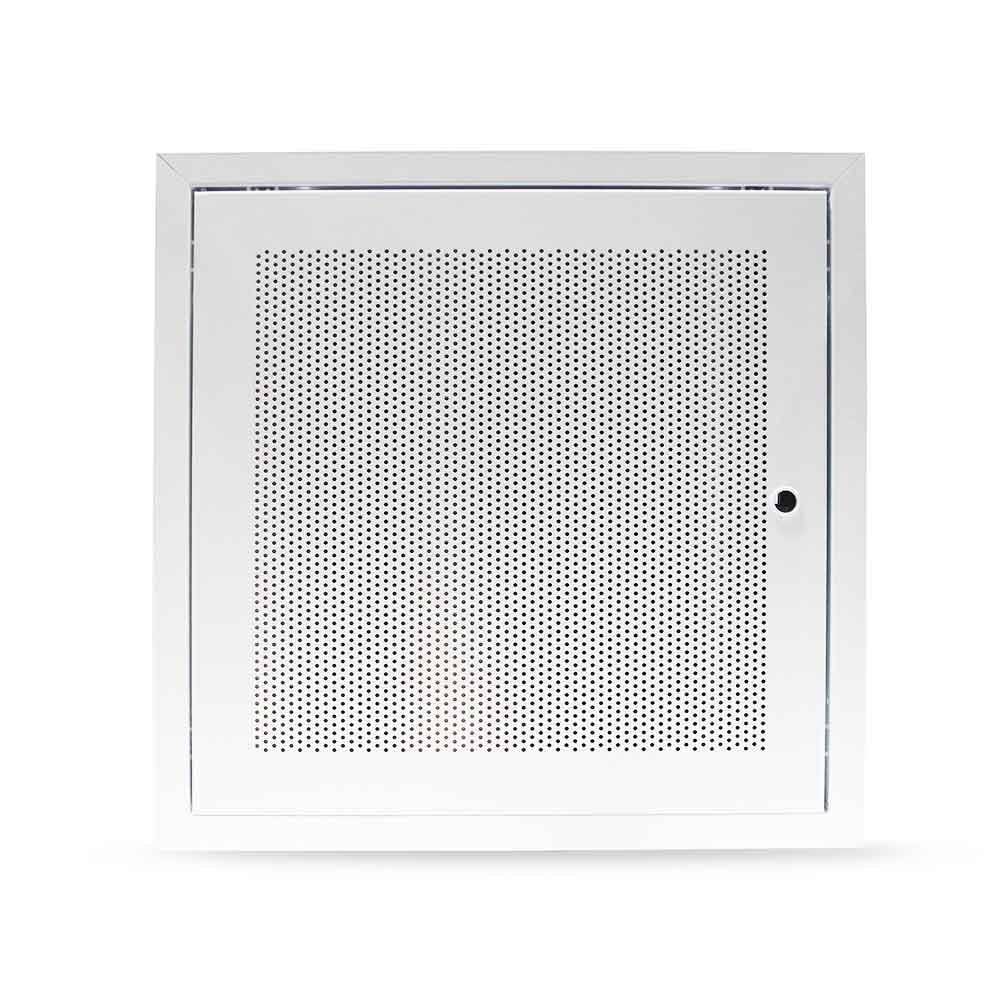

Steel access panel with perforated door.
Application
Wall mounted access panel.
Description
Steel access panel with perforated door. Available with picture or beaded frame in sizes up to 2280 x 1000 mm (single door) and 2280 x 2200 mm (double door).
Features and benefits:
- Perforated door with Ø3 mm holes at a 6 mm square pitch (measurement between hole centres).
- Enhances airflow for ventilation and/ or aesthetics.

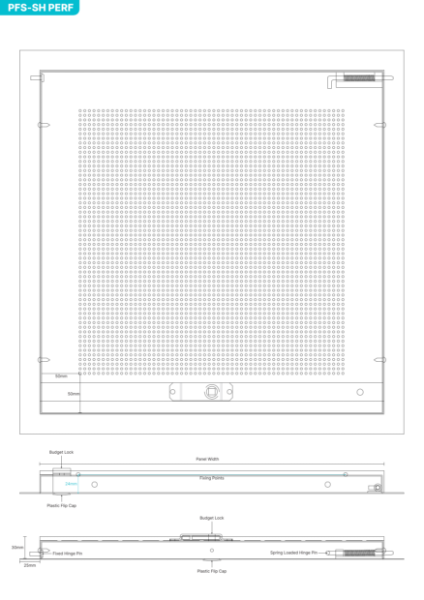

- Punched perforations start inside a 25 mm border from the edge of the door on three sides and 50 mm from the edge of the door on the lock edge.
- High quality access panel.
- Budget lock with T-Key supplied.
- Powder-coated in white RAL 9016.
General information
Color | White |
Finish | Powder-coated |
Material | Zintec steel |
Shape | Square Rectangle |
Length | 2280 mm |
Width | 1000 mm Guidance for specification option: Single door. 2200 mm Guidance for specification option: Double door. |
Warranty description | Two year |
Uniclass | |
CAWS | L20/630 Hatches K10/430 Access panels |
Specification data - Access panels
Position | Wall-mounted. |
Size | 2280 x 1000 mm.Guidance for specification option: Single door. Manufacturer guidanceAllow + 5 mm when creating the structural opening e.g. a 600 x 600 mm access panel will fit a 605 x 605 mm structural opening. The inner frame has pre-punched fixing holes to make fitting quicker and easier. |
Frame | Exposed picture frame type.Bead for taping and jointing. |
Panel | |
Material | Steel.Guidance for specification option: Zintec steel. |
Integral finish | Powder-coated. |
Latch or lock type | Budget lock.Guidance for specification option: Operated with T-Key. |

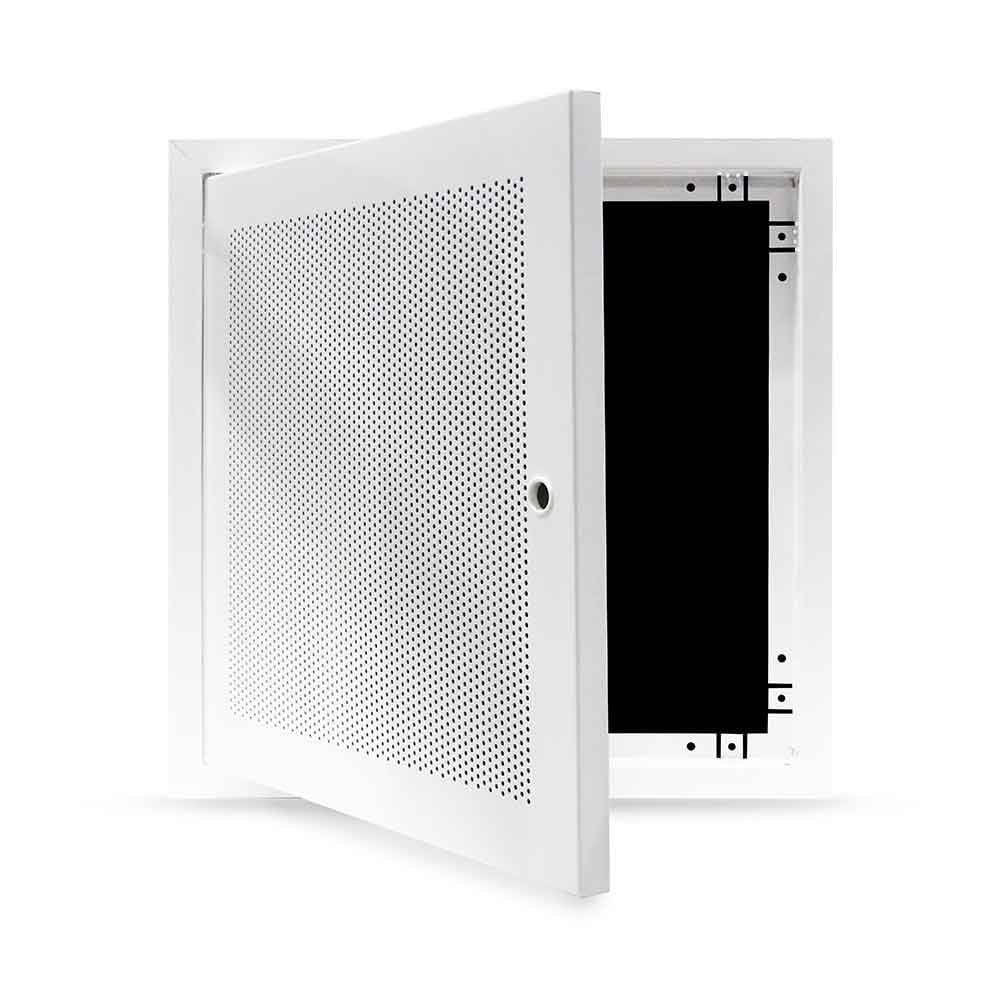

Operation | Concealed steel hinges, outward opening.Guidance for specification option: Full length piano hinge. |
Integral accessories | Guidance for specification option: Consult manufacturer and insert requirements or omit. |
Colour | Traffic white, RAL 9016. |
Structural opening size | 2285 x 1005 mm. |
Sustainability data
Contains Red List materials | No |
Country of material origin | United Kingdom |
Country of product manufacture | United Kingdom |
Recyclability | 100% |
Recycled contentAs defined in clause 7.8 of BS EN ISO 14021 | 40 % |
BIM objects
| Platform | Compatible | Version |
|---|---|---|
 Revit | - | 1 |
Literature

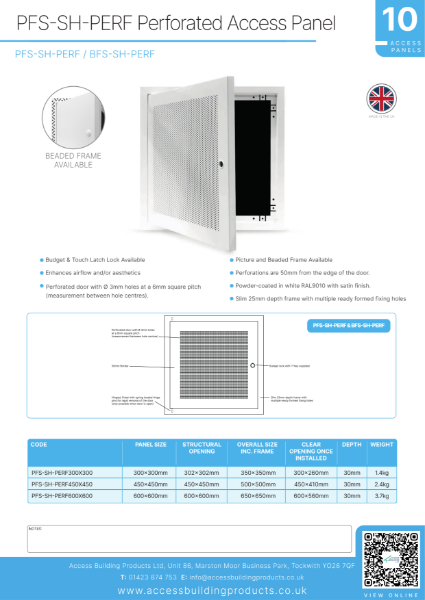

Perforated Access Panel
Perforated Access Panel Tech
