PhotonCheck - Vapour Control Membrane

Verified by manufacturer 3 months ago

Thermic Technology Ltd Third party certifications:
  • CE Marking

    Certificate type

  • UK Conformity Assessed (UKCA)

    UK Conformity Assessed (UKCA)

    Certificate type

  • ISO 9001 Quality Management

    Certificate type

High performance reflective vapour control membrane.

Jump to:
+44 (0)1257 241084 Website

Application

Suitable for use in many external wall types: timber frame, metal stud, concrete etc.

Description

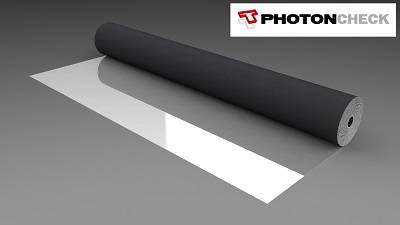

PhotonCheck is a high-performance reflective vapour control membrane specifically designed to enhance the thermal performance of wall, ceiling or floor structures.


Features and benefits:

  • Installed on the warm side of the structure.
  • Also available as A1 non-combustible.
  • Low emissivity surface boosts thermal performance.
  • Excellent vapour resistance.
  • Reduces unwanted air leakage.
  • UV, heat and corrosion resistant.
  • Roll size 50 x 1.35 m.


The product has been independently tested and certified to the latest European Standards by accredited European test houses.

General information

Color

Silver

Black

Finish

Foil

Material

Foil

Polypropylene

Shape

Rectangle

Length

50000 mm

Width

1350 mm

Uniclass

Pr_25_57_65_60 Plastics sheetsPrimary

CAWS

H92/450 Air and vapour control layer

H92/780 Air and vapour control layer

P10/310 Air and vapour control layer

H30/30 Air and vapour control membrane

H31/45 Air and vapour control membrane

P10/60 Air and vapour control layer

H31/261 Air and vapour control membrane

H30/261 Air and vapour control membrane

Specification data - Plastics sheets

Material

Non-woven polypropylene and aluminium foil composite.

Purpose

Air and vapour control layer.

Standard

To BS EN 13984.

Performance characteristics

-

Tensile strength (minimum)

Longitudinal: 16 0N/50 mm, Transverse: 100 N/50 mm.

Water vapour resistance (minimum)

To EN 1931: Sd 41; 190 MNs/g.

Fire performance

To BS EN 13984: Class E.

Form

Non-woven.

Physical properties

-

Colour

Silver/black.

Weight (minimum)

100 g/m².

Dimensions

-

Thickness (minimum)

0.2 mm.

Width (minimum)

1.35 m.

Roll length (minimum)

50 m.

Emissivity

To EN 16012: 0.05

Thermal resistance

To BS EN ISO 6946: 0.78 m²K/W.

Watertightness

W1.

Sustainability data

Contains Red List materials

No

Country of product manufacture

United Kingdom

Third party certifications

CE Marking

CE Marking

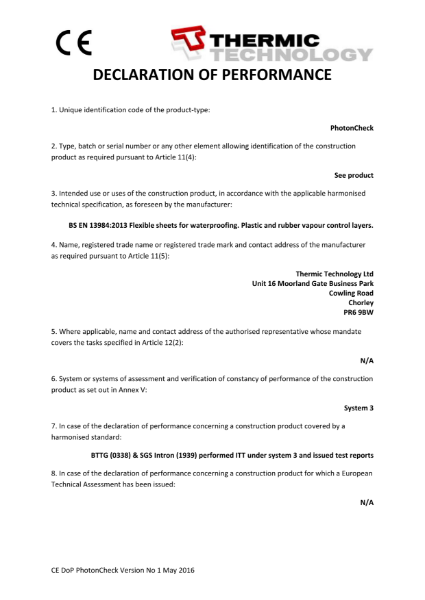

PhotonCheck (standard) CE DoP

UK Conformity Assessed (UKCA)

UK Conformity Assessed (UKCA)

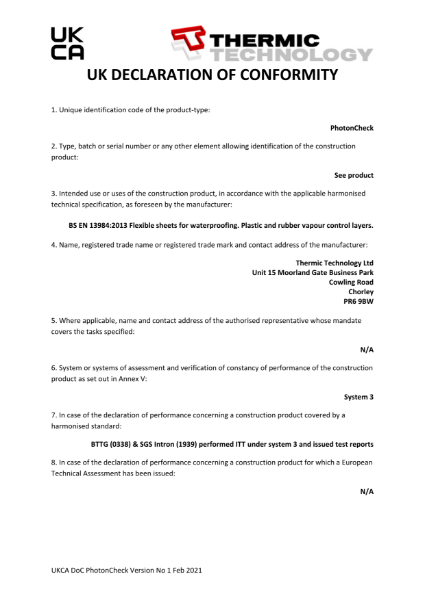

PhotonCheck (standard) UKCA DoC

ISO 9001 Quality Management

ISO 9001 Quality Management

Thermic Technology ISO 9001:2015

Literature

PhotonCheck (standard) Installation Instructions

PhotonCheck (standard) Installation Instructions

PhotonCheck (standard) Technical Datasheet

PhotonCheck (standard) Technical Datasheet
