PhotonFoil-A1 - Multifoil Insulation

Name: PhotonFoil-A1 - Multifoil Insulation
Brand: Thermic Technology Ltd
SKU: 74CvuLQRjwujd6gAB1Bde1

Verified by manufacturer 1 month ago

Thermic Technology Ltd

Third party certifications:

BRE Certificate
Certificate type
CE Marking
Certificate type
Statement of compliance
Certificate type
UK Conformity Assessed (UKCA)
Certificate type
ISO 9001 Quality Management
Certificate type

Non combustible, multi-foil insulation for loft conversions, timber frame walls and re-roofing projects.

Jump to:

+44 (0)1257 241084 Website

Application

Suitable for loft conversions, timber frame walls and re-roofing projects.

Description

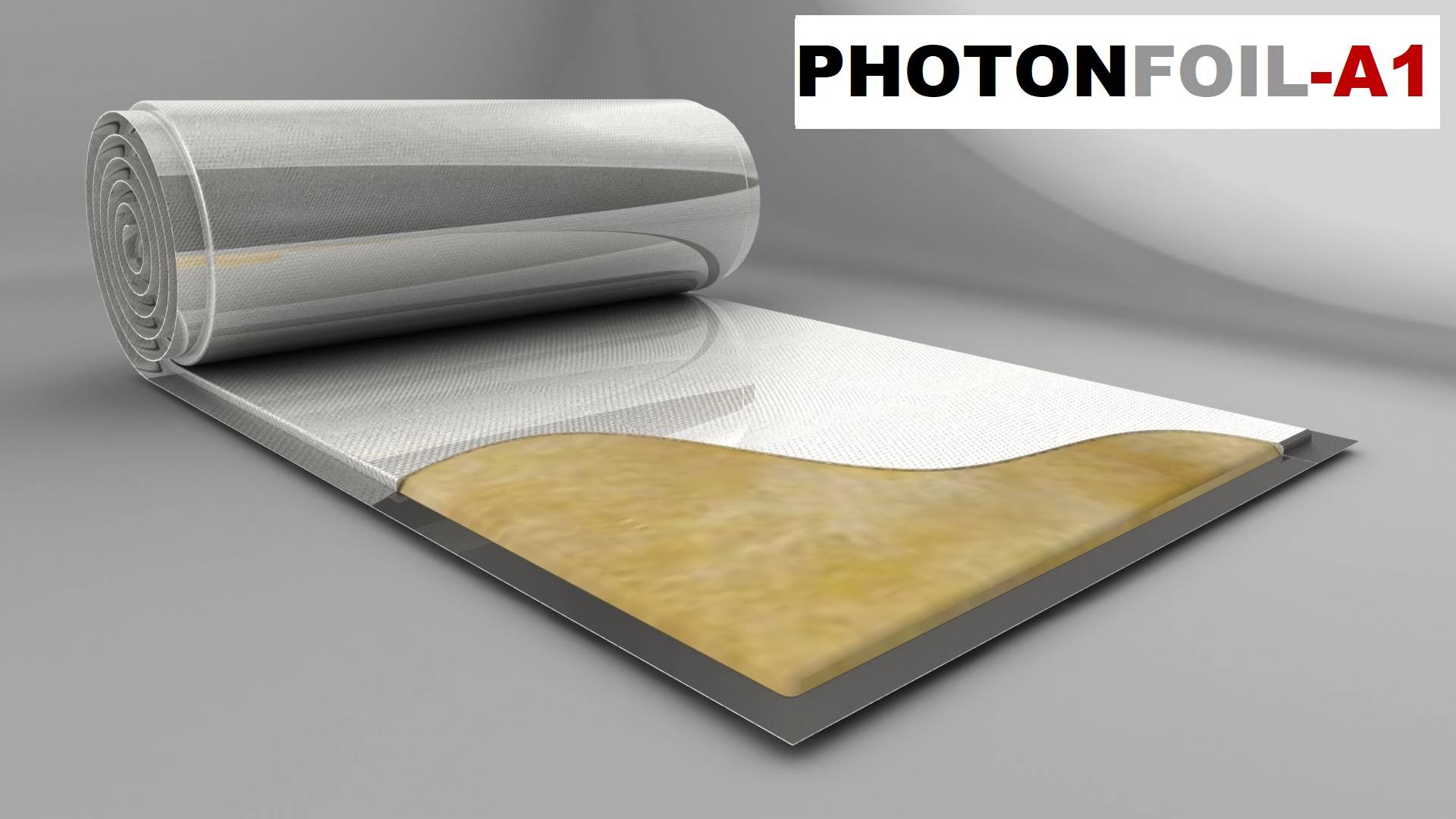

Constructed as an excellent vapour and air leakage barrier PhotonFoil has a high density glasswool core, encased in very low emissivity outer layers. PhotonFoil-A1 has been certified as A1 non-combustible in accordance with BS EN13501-1 by BRE Global Ltd (Report Number Q100799-1003).

The use of high density glasswool at its core gives the product a number of benefits over traditional polyester based multi foil insulation:

A1 non-combustible to BS EN13501-1.
50 mm flaps on all sides, avoiding double thickness under battens.
Easier to cut and screws without snagging.
Better λ90/90 thermal performance.

The product has been independently tested and certified to the latest European Standards by accredited European test houses and has achieved LABC (Local Authority Building Control) Registered Details.

General information

Color	Silver
Finish	Foil
Material	Glass mineral wool
Shape	Rectangle
Length	10000 mm
Width	1200 mm
Height	33 mm Guidance for specification option: Thickness.
Warranty description	Lifetime Guidance for specification option: For the lifetime of the building element Manufacturer guidance Product liability insurance

Uniclass	Pr_25_57_06_57 Multifoil blanket insulationPrimary
CAWS	P10/212 Insulation fixed across inner face of stud walling P10/148 Multilayer blanket insulation fixed under or above rafters P10/160 Loose laid loft insulation

Specification data - Multifoil blanket insulation

Third-party certification	BRE Certificate.
Thermal performance	To EN 16012: 2.35 m²K/W.
Reflective facing	Foil.
Thickness	33 mm.
Fire performance	To BS EN 13501-1: Class A1.

Watertightness	Class W1.
Water vapour resistance	CIBSE Guide A: Sd 800, 4000 MNs/g.
Emissivity	To EN 16012: 0.05
Weight	0.95 kg/m².
TensileStrength	To EN 12311-1: MD 5730 N/50mm, XD 4390 N/50mm.

Sustainability data

Contains Red List materials	No
Country of product manufacture	United Kingdom
Recyclability	Yes Manufacturer guidance Manufactured from fibreglass and aluminium
Recycled content As defined in clause 7.8 of BS EN ISO 14021	85 %
