PhotonFrame-A1 - Breathable Multi Foil Insulation

Verified by manufacturer 1 month ago

Thermic Technology Ltd Third party certifications:
  • BRE Certificate

    BRE Certificate

    Certificate type

  • CE Marking

    Certificate type

  • UK Conformity Assessed (UKCA)

    UK Conformity Assessed (UKCA)

    Certificate type

  • ISO 9001 Quality Management

    Certificate type

Non combustible and breathable version of PhotonFoil-A1, designed for cold side installation.

Jump to:
+44 (0)1257 241084 Website

Application

Suitable for timber frame construction. Whilst PhotonFrame-A1 was developed for timber frame new build housing it is widely used in offsite construction of volumetric modular units where energy and moisture management are critical. It is also suitable for use in many external wall types (metal stud, concrete etc.).

Description

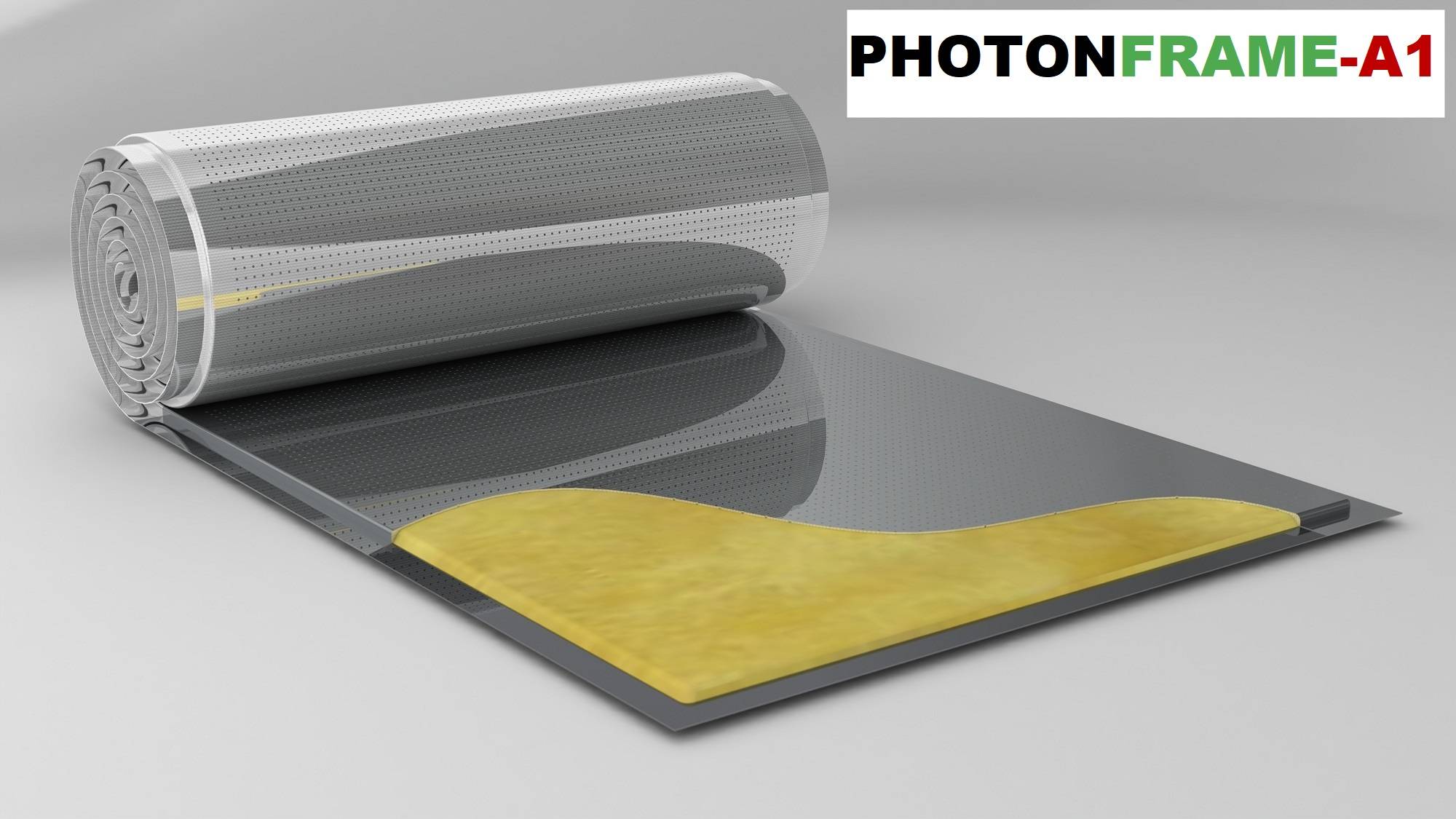

PhotonFrame-A1 is a highly breathable multi foil insulation designed for installation on the cold side of timber frame structures. It is constructed with a high density glasswool core encased in micro-perforated low emissivity outer layers. PhotonFrame-A1 has been certified as A1 non-combustible in accordance with BS EN13501-1 by BRE Global Ltd (Report Number Q100799-1003).


The product can be installed in combination with PhotonFoil to deliver Passivhaus standards of insulation with regular 140 mm glass filled studs.


The product has been independently tested and certified to the latest European Standards by accredited European test houses and has achieved LABC (Local Authority Building Control) Registered Details.

General information

Color

Silver

Finish

Foil

Material

Glass mineral wool

Shape

Rectangle

Length

10000 mm

Width

1200 mm

Height

33 mm

Guidance for specification option:

Thickness.

Warranty description

Lifetime

Guidance for specification option:

For the lifetime of the building element

Manufacturer guidance

Product liability insurance

Uniclass

Pr_25_57_06_57 Multifoil blanket insulationPrimary

CAWS

P10/212 Insulation fixed across inner face of stud walling

Specification data - Multifoil blanket insulation

Third-party certification

BRE Certificate.

Thermal performance

2.35 m²K/W with two cavities.

Reflective facing

Foil.

Thickness

33 mm.

Fire performance

To EN 13501-1: A1.

Water vapour resistance

To BS EN 13859-2: Sd 0.072 (0.36 MN.s/g.m)

Emissivity

To EN 16012: 0.05

Thermal resistance

To EN 16012: 2.35 m²K/W.

TensileStrength

To EN 12311-1: MD 5730 N/50mm, XD 4390 N/50mm.

Class (minimum)

W2.

Weight (minimum)

1.2 kg/m².

Sustainability data

Contains Red List materials

No

Country of product manufacture

United Kingdom

Recyclability

Yes

Manufacturer guidance

Manufactured from fibreglass and aluminium

Recycled content

As defined in clause 7.8 of BS EN ISO 14021

85 %

Third party certifications

BRE Certificate

BRE Certificate

PhotonFrame-A1 (non-combustible) BRE Fire Classification

CE Marking

CE Marking

PhotonFrame-A1 (non-combustible) CE DoP

UK Conformity Assessed (UKCA)

UK Conformity Assessed (UKCA)

PhotonFrame-A1 (non-combustible) UKCA DoC

ISO 9001 Quality Management

ISO 9001 Quality Management

Thermic Technology ISO 9001:2015
