PhotonWrap-A1 - Reflective Breather Membrane

Verified by manufacturer 1 month ago

Thermic Technology Ltd Third party certifications:
  • BRE Certificate

    BRE Certificate

    Certificate type

  • CE Marking

    Certificate type

  • UK Conformity Assessed (UKCA)

    UK Conformity Assessed (UKCA)

    Certificate type

  • ISO 9001 Quality Management

    Certificate type

Non combustible, high-performance reflective breather membrane.

Jump to:
+44 (0)1257 241084 Website

Application

A non-combustible reflective breather membrane that is designed to enhance the thermal performance of walls and is suitable for use in many external wall types (timber frame, metal stud, concrete etc.) for buildings which pose a higher risk for fire safety: residential blocks of flats, student accommodations, care homes, sheltered housing, hospitals, dormitories in boarding schools with a storey above 18 m in height and high risk residential buildings (HRRB).

Description

PhotonWrap-A1 is a non-combustible, high-performance reflective breather membrane specifically designed to enhance thermal performance of external walls whilst minimizing the risk of interstitial condensation. Its durable design gives enhanced protection of external walls during the construction process and is suitable for buildings over 18m tall.


Features and benefits:

  • Suitable for over 18m high-rise/high risk.
  • Reflective breather membrane, external fitting.
  • A1 non-combustible.
  • Excellent vapour permeability.
  • Low emissivity surface boosts thermal performance.
  • UV, heat and corrosion resistant.
  • Roll size 50 x 1.35 m.


The product has been independently tested and certified to the latest European Standards by accredited European test houses.

General information

Color

Silver

White

Finish

Foil

Material

Glass Fibre

Shape

Rectangle

Length

50000 mm

Width

1350 mm

Warranty description

Lifetime

Guidance for specification option:

Lifetime of the building element

Manufacturer guidance

Product liability insurance

Uniclass

Pr_25_57_10_94 Vapour-permeable sheetsPrimary
Pr_25_57_65_60 Plastics sheets

CAWS

H31/280 Breather membrane

H21/20 Breather membrane

H31/55 Breather membrane

H21/130 Breather membrane

P10/320 Breather membrane

P10/65 Breather membrane

Specification data - Vapour-permeable sheets

Standard

To BS EN 13859-2.

Third-party certification

BRE Certificate.

Performance criteria

-

Water vapour properties

Water vapour resistance to BS EN ISO 12572; 0.095 m, +/- 0.01 m. Sd 0.019.

Fire performance

Reaction to fire: To BS EN 13501-1, Class A1.

Tensile properties

Tensile strength to BS EN 12311-1; MD 2865 N/50mm, XD 2195 N/50mm.

Class (minimum)

W2.

Recycled content

85%.

Material

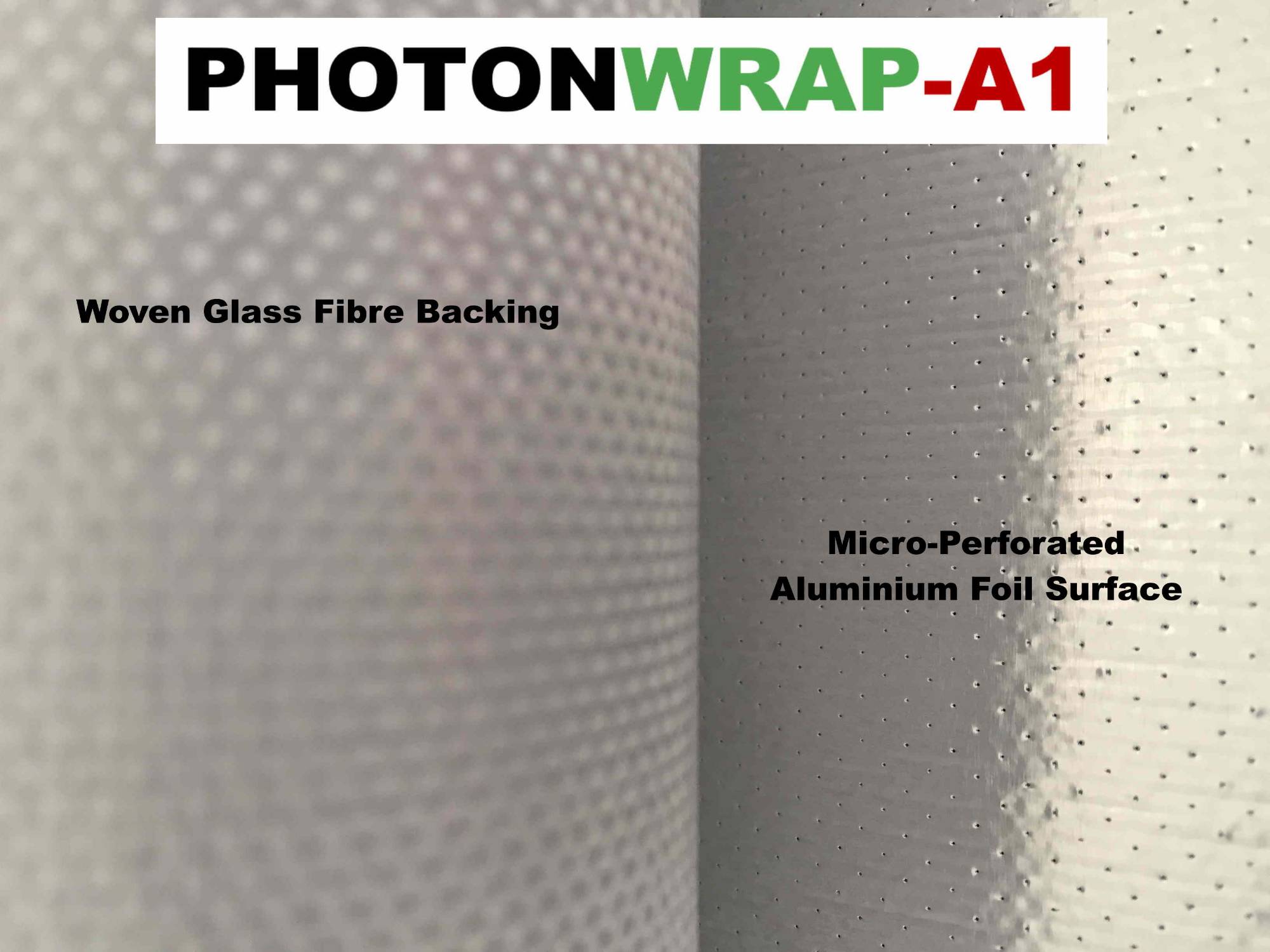

Woven fibreglass and aluminium foil composite.

Form

Micro-perforated (needle-punched).

Woven.

Weight (minimum)

204 g/m².

Thickness (minimum)

0.15 mm.

Reflective face

Aluminium Foil. (micro-perforated).

Emissivity

To EN 16012: 0.05

Thermal resistance

To BS EN ISO 6946: 0.78 m²K/W.

Resistance to tearing

To EN 12310-1: MD 208 N, XD 302 N.

Elongation

To EN 12311-1: 5%.

Sustainability data

Contains Red List materials

No

Country of product manufacture

United Kingdom

Recyclability

Yes

Recycled content

As defined in clause 7.8 of BS EN ISO 14021

85 %

Manufacturer guidance

Manufactured from woven fibreglass and aluminium foil

Third party certifications

BRE Certificate

BRE Certificate

PhotonWrap-A1 (non-combustible) BRE Fire Classification

CE Marking

CE Marking

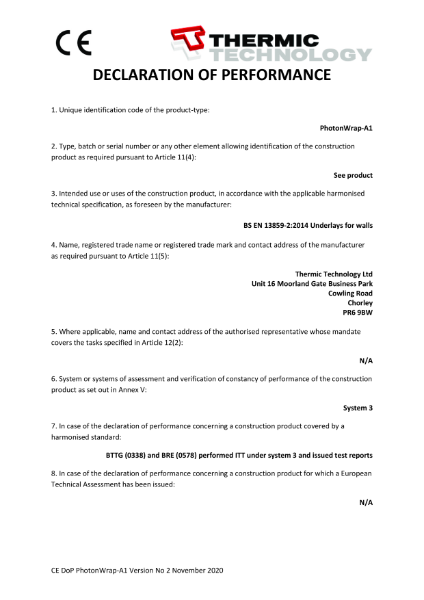

PhotonWrap-A1 (non-combustible) CE DoP

UK Conformity Assessed (UKCA)

UK Conformity Assessed (UKCA)

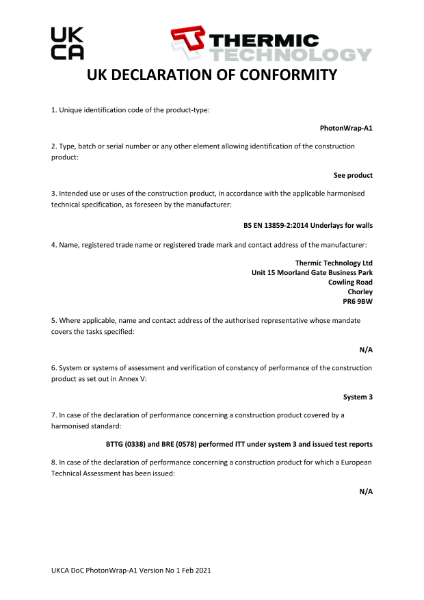

PhotonWrap-A1 (non-combustible) UKCA DoC

ISO 9001 Quality Management

ISO 9001 Quality Management

Thermic Technology ISO 9001:2015

Literature

PhotonWrap-A1 (non-combustible) Installation Instructions

PhotonWrap-A1 (non-combustible) Installation Instructions

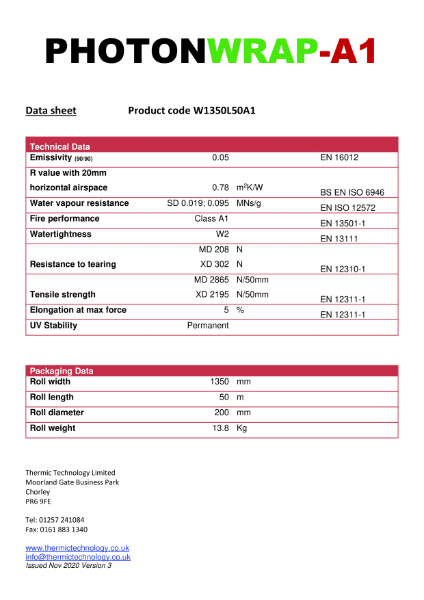

PhotonWrap-A1 (non-combustible) Technical Datasheet

PhotonWrap-A1 (non-combustible) Technical Datasheet
