Pipe in Pipe Oil Sensor - Liquid and Oil Leak Detection

Verified by manufacturer 3 months ago

Andel Ltd

A sensor for liquid and oil leak detection in double containment pipes and tanks.

Jump to:
+44 (0)1484 845000 Website

Application

For use in pipe-in-pipe systems, double contained tanks and other projects where interstitial monitoring is required.

Description

The Andel Floodline DP01 Pipe-in-Pipe Sensor is designed for use either as a stand-alone leak detection system which can be connected directly to a standard monitoring system or can be interfaced either singly or in multiples with one of Andel’s range of Floodline leak detection control panels.


The sensor uses infra-red to detect the presence of any liquid touching the sensor dome. When liquid is detected the relay within the local control unit will turn off and this is detected by either a monitoring system or a Floodline panel. The relay will also turn off if the sensor should become disconnected or if the power should fail.

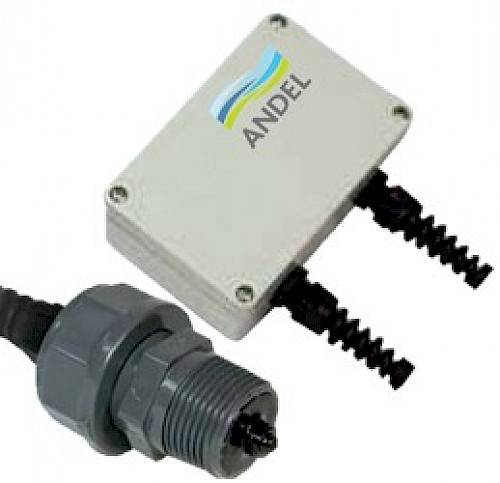

The Sensor consists of two components; the sensor head and the control box. The control box is the interface between either a central Floodline alarm panel or other monitoring system capable of monitoring volt-free contacts. The sensor head is encapsulated and supplied in either a ½” or 1” BSP male threaded socket for fitting into the outer pipe at the lowest point or within a specially fitted ‘catchpot’. The sensor is then connected to the local control box.


Features and benefits:

  • Sensor and control box are IP65 rated.
  • Oil and liquid entering the cavity activates the sensor alarm.
  • Multiple re-use.
  • Two metre length sensor cable.
  • Used as a stand alone system connected to a stand alone monitoring system or interfaced with Andel's range of control panels.
  • Uses Infra-red to detect presence of liquid.
  • Encapsulated sensor head.

General information

Color

Grey

Finish

Satin

Material

PVC-U

Polycarbonate

Shape

Rectangle

Length

55 mm

Manufacturer guidance

Depth.

Width

120 mm

Height

80 mm

Warranty description

Ten year

Uniclass

Ss_75_50_50_45 Liquid presence detection and alarm systemsPrimary

Specification data - Liquid presence detection and alarm systems

Sensor types

Water-sensing and oil-sensing sensor head.

Guidance for specification option:

  • ½” or 1” BSP male threaded socket for fitting into the outer pipe at the lowest point or within a specially fitted ‘catchpot’, insert requirement.
  • Encapsulated UPVC, mid/dark grey.
  • IP65 rated.

Control panel

Liquid presence control interface.

Guidance for specification option:

  • Interface between either a central Floodline alarm panel or other monitoring system capable of monitoring volt-free contacts.
  • Polycarbonate enclosure, light grey (RAL 7035).
  • IP65 rated.
  • 120 x 80 x 55 mm (length x width x height).

Connection cable to sensors

-

Cable type

2 m length sensor cable.

Rewireable installation

Required.

Alarm indication

-

Manufacturer guidance

Consult manufacturer for details.

System accessories

-

Manufacturer guidance

Consult manufacturer for details and insert requirements.

Power

Supply voltage: 9–30 V d.c.
Supply current: 18 mA (standby); 7 mA (alarm).

Sustainability data

Contains Red List materials

No

Country of material origin

United Kingdom

Country of product manufacture

United Kingdom

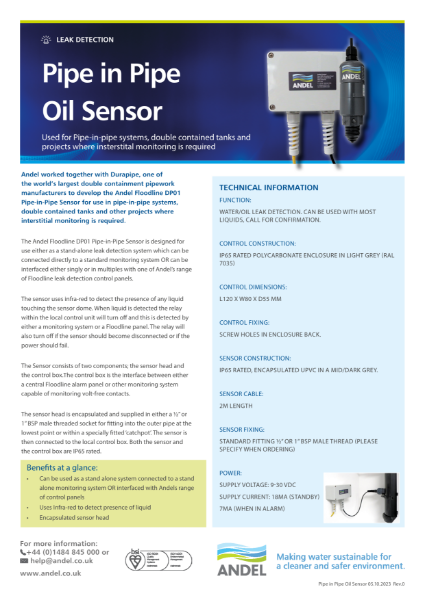

Literature
