PL235 - Rytons Push & Lock® Ventilator

Verified by manufacturer 2 months ago

PL235BL - Black

Rytons Building Products Ltd Variant:

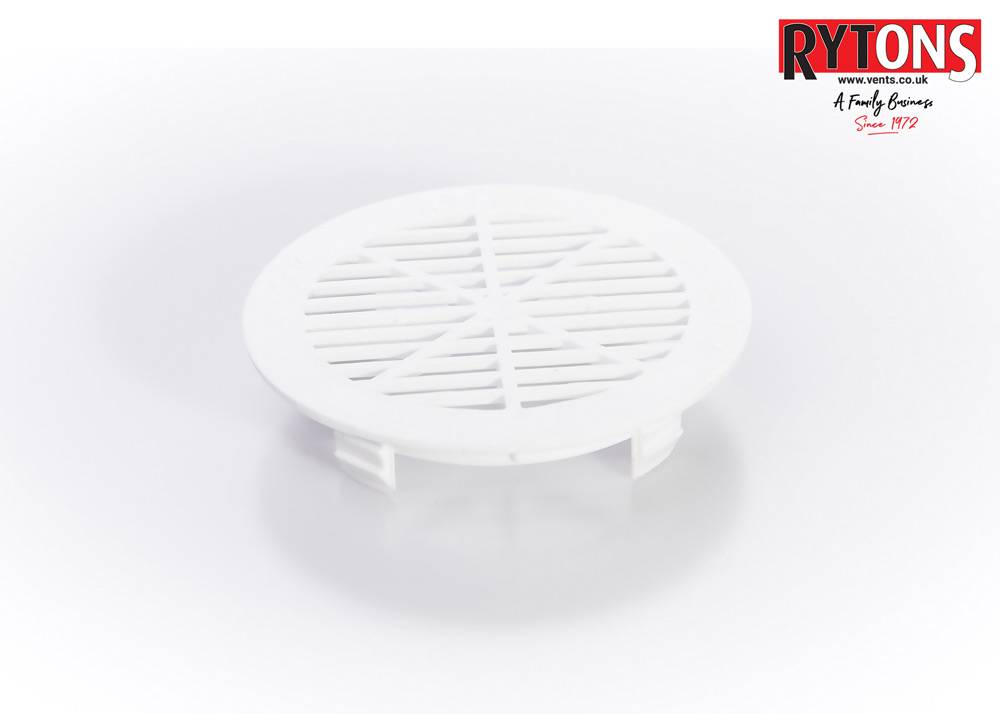

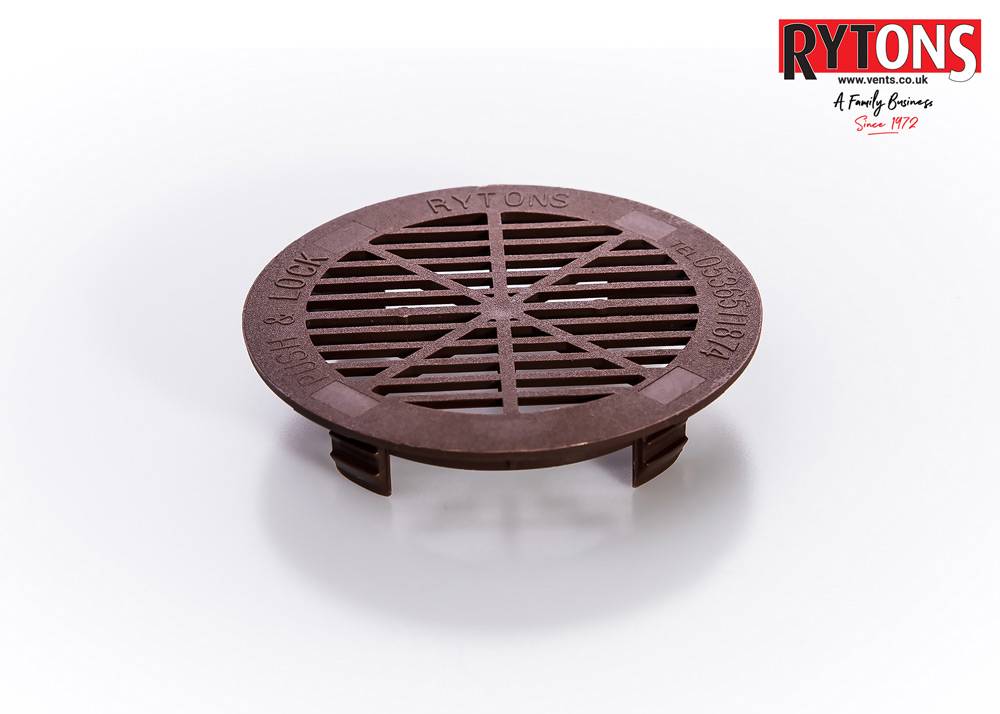

Circular soffit ventilator.

Jump to:
+44 (0)1536 511874 Website

Application

To allow air into the roof void through the soffit area.

Description

Circular soffit ventilator.


Features and benefits:

  • Distinctive grips suit any thickness of new or existing soffit boards in wood and plastic.
  • Slim design for an almost flush finish with the soffit board.
  • 4 mm ventilation slots promote unrestricted air flow and prevent the entry of birds and large insects.
  • Made in Britain.

General information

Color

Black

Brown

White

Material

Plastic

Guidance for specification option:

Polypropylene.

Shape

Circle

Width

70 mm

Guidance for specification option:

70mm Internal Dia.

83mm External Dia.

Height

70 mm

Guidance for specification option:

70mm Internal Dia.

83mm External Dia.

Uniclass

Pr_30_59_94_78 Soffit grillesPrimary

CAWS

G20/900 Eaves soffit ventilators

G20/97 Eaves soffit ventilators

Product range

Rytons Soffit Ventilators

Specification data - Soffit grilles

Ventilation opening

4 mm.

Colour

Black.

Free area

2358 mm².

Internal diameter

70 mm.

External diameter

83 mm.

Sustainability data

Contains Red List materials

No

Country of product manufacture

United Kingdom

Recyclability

Recyclable
