Planet US Pivot Module Set

Name: Planet US Pivot Module Set
Brand: Lorient
SKU: fsXqt3UYCMYQYL7NT5E4Vp

Verified by manufacturer 2 days ago

Lorient

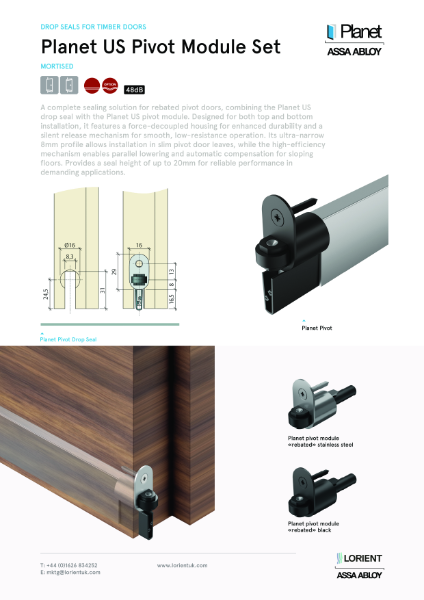

A complete sealing solution for rebated pivot doors, combining the Planet US drop seal with the Planet US pivot module.

Jump to:

+44 (0)1626 834252 Website

Application

Pivot doors.

Description

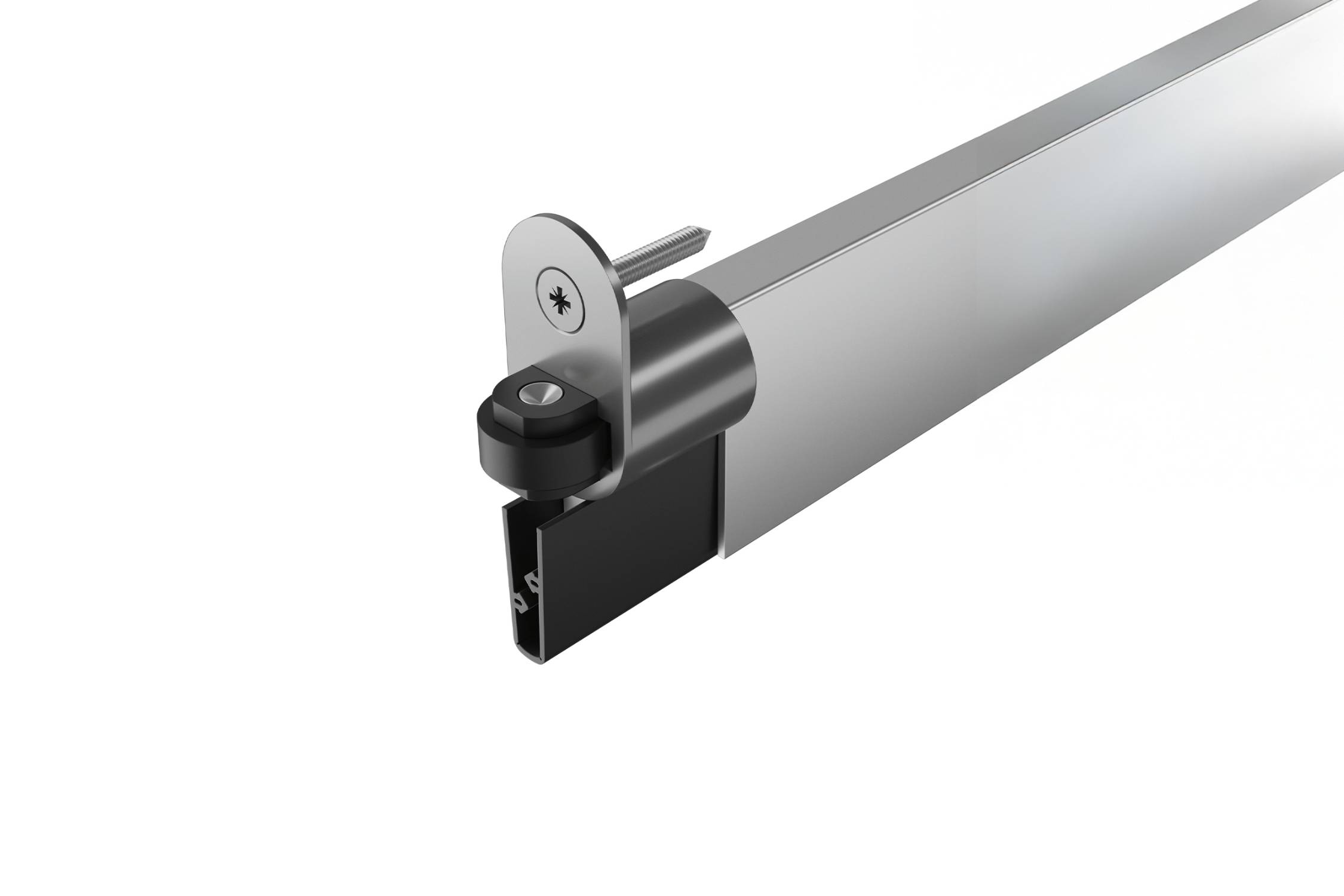

A complete sealing solution for rebated pivot doors, combining the Planet US drop seal with the Planet US pivot module. Designed for both top and bottom installation, it features a force-decoupled housing for enhanced durability and a silent release mechanism for smooth, low-resistance operation. Its ultra-narrow 8 mm profile allows installation in slim pivot door leaves, while the high-efficiency mechanism enables parallel lowering and automatic compensation for sloping floors.

Features and benefits:

Stainless steel or black finish.
Ultra-narrow profile.
Force-decoupled housing for enhanced durability.
Silent release mechanism for smooth, low-resistance operation.
Provides a seal height of up to 20 mm for reliable performance in demanding applications.

General information

Color	Silver Black
Finish	Other
Material	Aluminium
Shape	Rectangle
Length	460 mm 585 mm 710 mm 835 mm 960 mm 1085 mm 1210 mm 1335 mm 1460 mm 1585 mm Show more
Width	16 mm
Height	29 mm

Uniclass	Pr_35_90_33_22 Door and window weatherstrips and sealsPrimary
CAWS	L20/30 Wood doors L20/410 Wood doorsets L20/430 Wood doorsets L20/420 Wood doorsets L20/60 Doors L20/270 Wood doors L20/230 Wood flush doors L20/20 Wood flush doors L20/480 Doorsets L20/55 Doorsets

Specification data - Door and window weatherstrips and seals

Classification data
Functions	Smoke seals.
Seal type	Motorised drop seal.
Size	To suit performance requirements.
Materials	-
Carriers	Aluminium.
Colour	Stainless steel. Black.
Acoustic performance	Sound absorption level up to 48 dB.
