Plastic Access Panel
Verified by manufacturer 4 months ago
A plastic acess panel range for wall and ceiling use.
Application
Suitable for wall and ceiling use.
Description
Plastic access panel range, lightweight, easy to fit with a 20 dB acoustic reduction.
Features and benefits:
- Available in seven stock sizes.
- Picture frame.
- Snap friction lock, or key lock.
- All sizes are guaranteed not to sag when used in ceilings.
- UV stable, will not discolour.
- Can be painted.
General information
Color | White |
Finish | Textured |
Material | Plastic |
Shape | Rectangle Square |
Width | 150 mm 200 mm 300 mm 350 mm 450 mm |
Height | 150 mm 200 mm 230 mm 300 mm 350 mm |
Warranty description | Two year |
Uniclass | |
CAWS | L20/630 Hatches K10/430 Access panels |
Specification data - Access panels
Position | Ceiling-mounted.Wall-mounted. |
Size | 150 x 150 mm.200 x 200 mm.230 x 150 mm.300 x 300 mm.350 x 350 mm.450 x 450 mm.550 x 550 mm. |
Frame | Exposed picture frame type. |
Panel | |
Material | Plastic. |
Latch or lock type | Snap friction lock.Key lock. |
Operation | Outward opening. |
Sustainability data
Contains Red List materials | No |
Country of material origin | United Kingdom |
Country of product manufacture | United Kingdom |
Recyclability | Yes |
Recycled contentAs defined in clause 7.8 of BS EN ISO 14021 | 0 % |
BIM objects
| Platform | Compatible | Version |
|---|---|---|
 Revit | - | 1 |
Literature

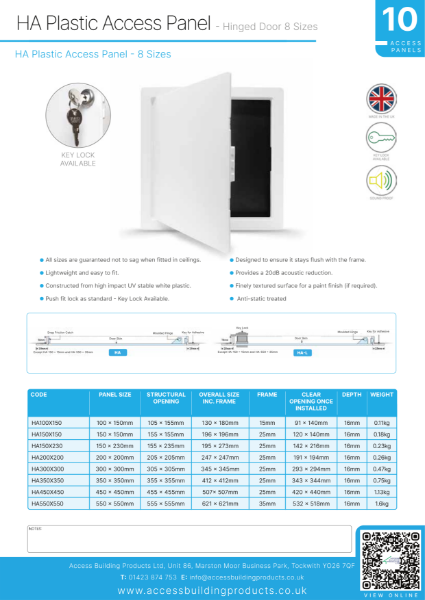

HA Plastic Access Panel

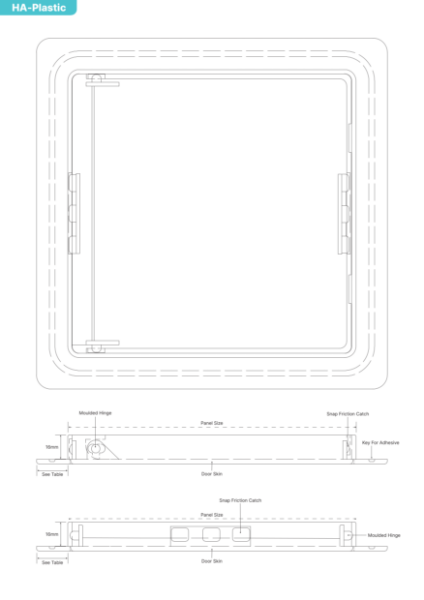

HA-Plastic Tech
