Platform Floor - Acoustic Floating Floor

Verified by manufacturer 22 days ago

Platform Floor 21

Thermal Economics Ltd Variant:

A range of tongue and groove acoustic boards for soundproofing and noise reduction applications.

Jump to:
+44 (0)1582 450814 Website

Application

  • For use on concrete and timber floors.
  • Suitable for use below carpet, wooden floor finishes, vinyl and floor tile.

Description

Platform Floor is an acoustic floating floor product. It is primarily used in concrete and timber floor systems to achieve Approved Document Part E compliance, but can also be used in general soundproofing applications. It is also a Robust Detail compliant Floating Floor Treatment (FFT 5) and can be used as the main acoustic component of the Robust Detail E-FC- 1 and E-FC-2 constructions.


Features and benefits:

  • Robust Detail FFT5 compliant.
  • Continues to perform for the lifetime of the building.
  • Suitable for use with underfloor heating.
  • Simple installation.
  • Global Warming Potential of Zero and an Ozone Depletion Potential of Zero.


Platform Floor is available in three variants:

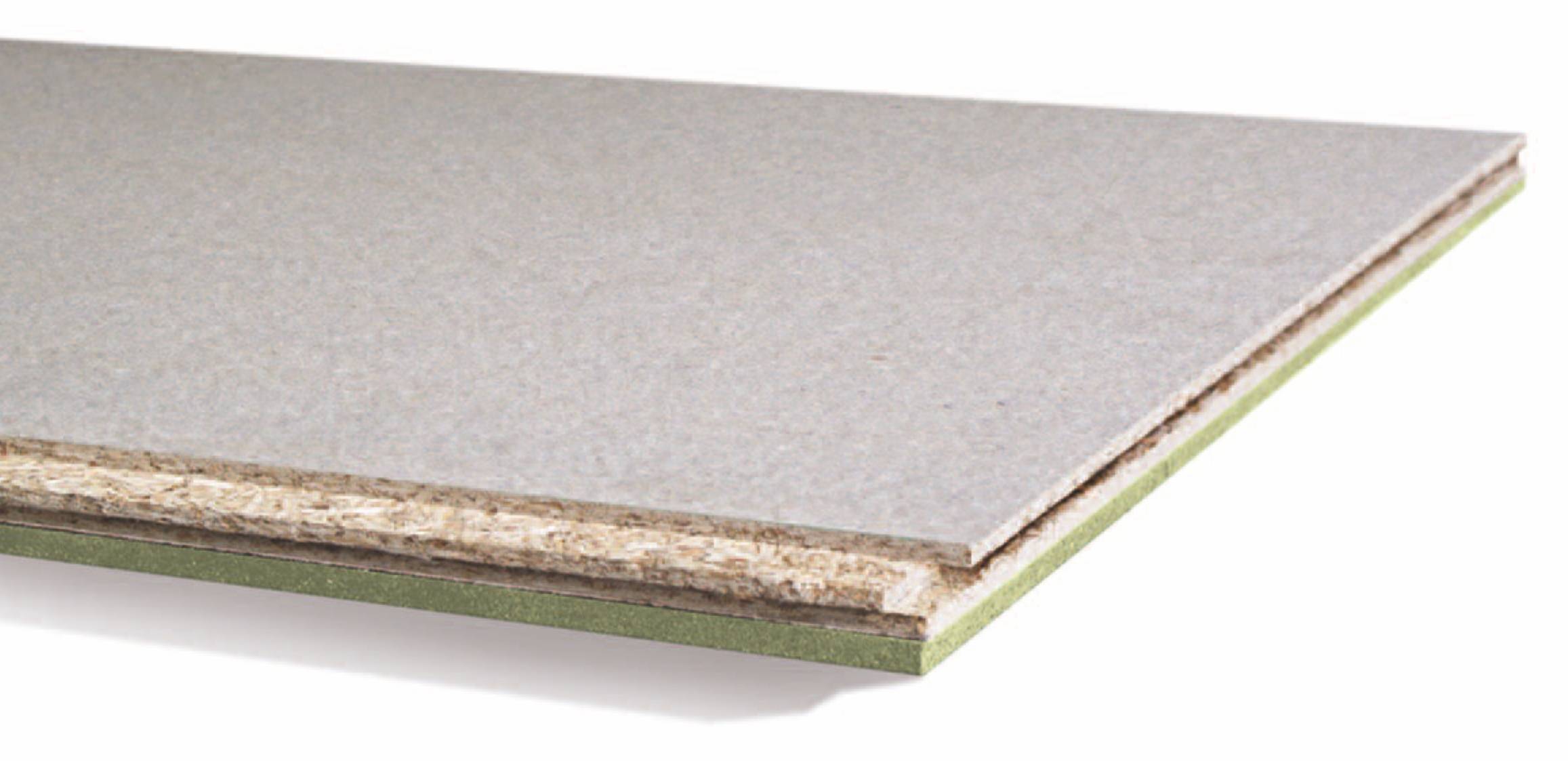

  • PF21: 18 mm P5 T&G chipboard with 3 mm isorubber bonded to the underside.
  • PF25: 18 mm P5 T&G chipboard with 7 mm low compression acoustic layer bonded to the underside.
  • PF30: 18 mm P5 T&G chipboard with 12 mm low compression acoustic layer bonded to the underside.

General information

Color

Beige

Finish

Other

Material

Chipboard

Felt

Rubber

Shape

Rectangle

Length

2400 mm

Width

600 mm

Height

21 mm

25 mm

30 mm

Warranty description

Other

Uniclass

Pr_25_71_18_90 Timber-lined composite sound-insulating boardsPrimary

CAWS

K11/25 Particleboard floating floor

K11/225 Particleboard floating floor

K11/275 Acoustic separating floor system

Specification data - Timber-lined composite sound-insulating boards

Sound insulation rating

Impact ΔLW: 17 dB.

Thickness

21 mm.

Sustainability data

Contains Red List materials

No

Country of material origin

Europe

Country of product manufacture

United Kingdom

Recyclability

Recyclable

Literature

Platform Floor Brochure

Platform Floor Brochure

Platform Floor SDS

Platform Floor SDS

IsoSonic Platform Floor - Installation Details

IsoSonic Platform Floor - Installation Details

Platform Floor 21 Technical Data Sheet

Platform Floor 21 Technical Data Sheet

Platform Floor 25 Technical Data Sheet

Platform Floor 25 Technical Data Sheet

Platform Floor 30 Technical Data Sheet

Platform Floor 30 Technical Data Sheet
