Premcrete Exafoam HD - High Density Polyethylene Fillerboard

Verified by manufacturer 7 months ago

Premcrete

High-density polyethylene fillerboard.

Jump to:
+44 (0) 23 80276166 Website

Application

EXAFOAM HD is typically bonded to an existing structure or previously poured concrete slab using a suitable contact adhesive. If the joint is to be sealed using a joint sealant then a plastic strip joint former should be placed on top of the EXAFIBRE which is removed once the concrete is poured to form a rebate for the sealant to fill.

Description

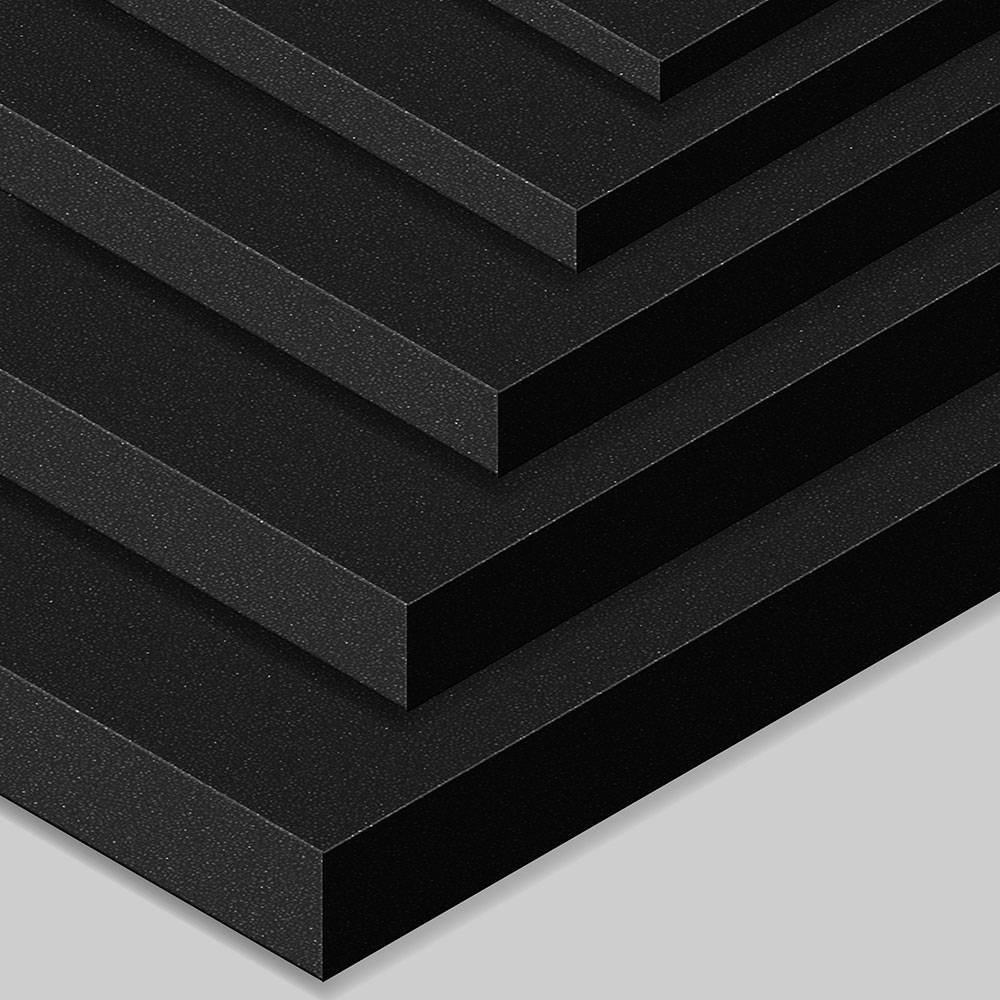

EXAFOAM HD is a high-density close cell polyethylene fillerboard which is used to form and fill expansion joints between adjacent cast in-situ concrete.

When installed it provides excellent support to join sealants and is particularly suitable for application in water retaining structures.

General information

Color

Black

White

Material

Polyethylene

Shape

Rectangle

Length

Bespoke

Width

Bespoke

Height

Bespoke

Uniclass

Pr_25_71_63_27 Extruded polyethylene (PE) foam boardsPrimary

CAWS

E40/520 Sheet joint filler

E60/330 Expanded polystyrene void formers

F30/615 Movement joints without sealant

F30/78 Fire-resisting movement joints without sealant

Product range

Movement Joints

Specification data - Extruded polyethylene (PE) foam boards

Material

Cross linked closed cell polyethylene foam.

Compressive strength

25% compression: 68 kN/m²; 50% compression: 164 kN/m².

Thickness

10 mm.

15 mm.

20 mm.

25 mm.

Elastic recovery

50%.

CompressionEfficiency

100%.

Elongation

110%.

TensileStrength

470 kN/m².

CompressiveStrength

25% compression: 68 kN/m²; 50% compression: 164 kN/m².

Literature

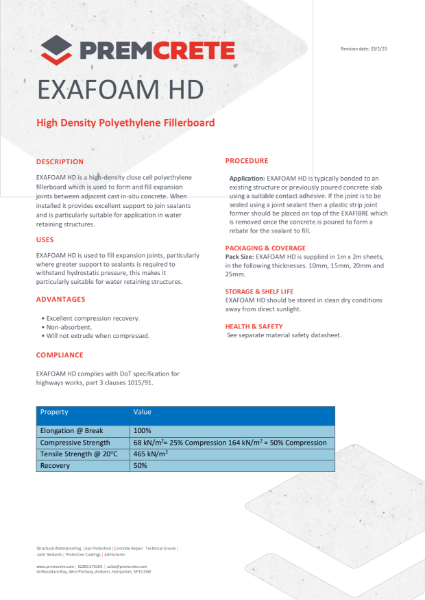

Exafoam HD TDS

Exafoam HD TDS
