Premium Range Metal Door Access Panels - Access Panels

Name: Premium Range Metal Door Access Panels - Access Panels
Brand: The Access Panel Company Ltd
SKU: sKhWeSR2onVgGXBuecvr1Q

Verified by manufacturer 2 days ago

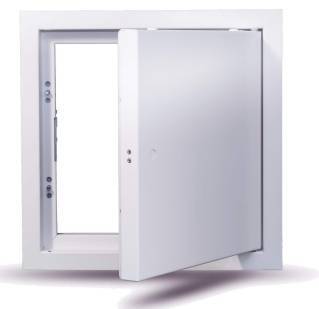

Metal door access panels

The Access Panel Company Ltd

Product certifications:

UKAS
Certificate type
UKAS
Certificate type

Acoustic and fire-rated premium metal door access panels.

Jump to:

+44 (0)1724 853 090 Website

Application

Premium Metal Door Access Panels Provide openings in ceilings and walls for access to building engineering services. Can be used in all types of wall or ceiling construction.

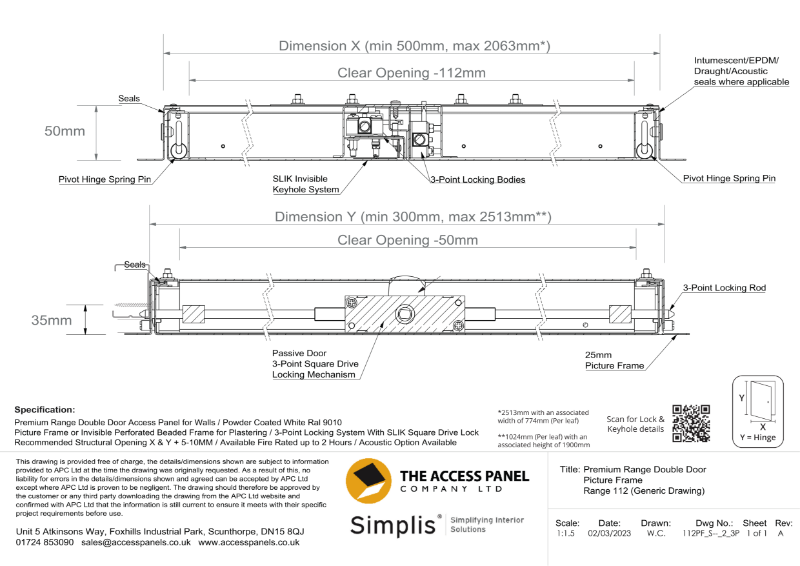

Double door wall access panels are for access to building engineering services.

Description

Premium range access panels provide high-quality openings in ceilings and walls for access to building engineering services (double door wall access panels are for access to walls only).

Features and benefits:

The mild steel doors are finished in powder-coated white and can be over painted to blend with the surrounding surface.
Two frame options:
- Beaded frame type (SBF) with perforated flange to key into the surrounding membrane. This is used where the surface has yet to be skimmed or tape and jointed.
- Picture frame (PF), where the solid flange sits on the surface of the wall or ceiling. This covers the cut edge of the aperture and is used when the surface has already been finished and decorated.
Supplied as standard with the patented Spring Loaded Invisible Keyhole (SLIK) system.
Versatility to be specified with insulation, fire rating, acoustic reduction and a range of locking mechanisms.

General information

Color	White Guidance for specification option: RAL 9010; standard. Other Guidance for specification option: Any RAL.
Finish	Galvanized Powder-coated
Material	Zintec steel
Shape	Square Rectangle
Length	200 mm 300 mm 450 mm 550 mm 600 mm 900 mm 1200 mm Bespoke Show more
Width	200 mm 300 mm 450 mm 550 mm 600 mm 1200 mm 1800 mm Bespoke Show more
Height	50 mm 56 mm
Warranty description	Five year

Uniclass	Pr_30_59_36_01 Access panelsPrimary Pr_30_59_24_52 Carbon steel doorsets
CAWS	L20/55 Doorsets L20/280 Doors K40/135 Board-suspended ceiling system K40/10 Unit/ modular suspended ceilings K10/50 Suspended ceiling system on metal framing L20/630 Hatches K10/25 Ceiling lining on timber K10/30 Metal stud K10/15 Lining on timber K10/245 Ceiling lining on timber K10/220 Proprietary suspended ceiling system K10/215 Suspended ceiling system K10/125 Metal stud partition system K10/115 Metal stud partition system K40/280 Access units K40/115 Unit/ modular suspended ceiling system K40/105 Suspended ceiling system K10/430 Access panels

Specification data - Access panels

Classification data
Fire performance	-
Fire resistance	Non-fire rated. 60 minutes to BS 476-22 and BS EN 1634-1. 120 minutes to BS 476-22 and BS EN 1634-1. Manufacturer guidance Fire testing undertaken independently meeting EN and BS standards in UKAS approved test laboratories. Certification available upon request; consult manufacturer.
Position	Ceiling mounted. Wall mounted.
Size	200 x 200 mm. 300 x 300 mm. 450 x 450 mm. 550 x 550 mm. 600 x 300 mm. 600 x 600 mm. 900 x 600 mm. 1200 x 550 mm. 1200 x 600 mm. Custom. Guidance for specification option: Bespoke sizes available, consult with manufacturer.
Frame	Beaded frame (SBF). Guidance for specification option: For use where the surface has yet to be skimmed or tape and jointed. Picture frame (PF). Guidance for specification option: The solid flange sits on the surface of the wall or ceiling. This covers the cut edge of the aperture and is used when the surface has already been finished and decorated.
Panel	-
Material	Zintec electrogalvanized mild steel. Guidance for specification option: The door tray and frame are formed from 1.0 and 1.2 mm Zintec electrogalvanized mild steel with a 25 mm-wide perforated or solid frame.
Integral finish	Powder-coated, RAL 9010. Guidance for specification option: Factory finished as standard. Powder-coated, RAL. Guidance for specification option: On request; insert requirements.
Latch or lock type	Square drive operated lock with ‘SLIK’ invisible keyhole. Guidance for specification option: Standard. Euro cylinder. Radial pin tumbler. Three point lock.
Operation	Pivot or piano hinge, outward opening. Guidance for specification option: Using the "T" key supplied, push the SLIK invisible keyhole system aside, engage the key into the locks then open and close while supporting the door. The SLIK system springs back automatically to conceal the keyhole.
Air tightness	Thermally-insulated and air-sealed ranges available complying with Building Regulations Parts L1 and L2, BS EN 12207:2000, BS EN 1026:2000. Guidance for specification option: Consult manufacturer for details.
Sound insulation	Manufacturer's standard. To BS EN ISO 140-3:1995, 63 dB Rw. Guidance for specification option: Available to a maximum reduction of 63 dB Rw. Testing carried out under laboratory conditions to BS EN ISO 140-3:1995 by an independent test centre.

Sustainability data

Contains Red List materials	No
Country of material origin	United Kingdom
Country of product manufacture	United Kingdom
Material	Zintec steel
Recyclability	Recyclable
