Profiled filler blocks - EPDM
Verified by manufacturer 6 months ago

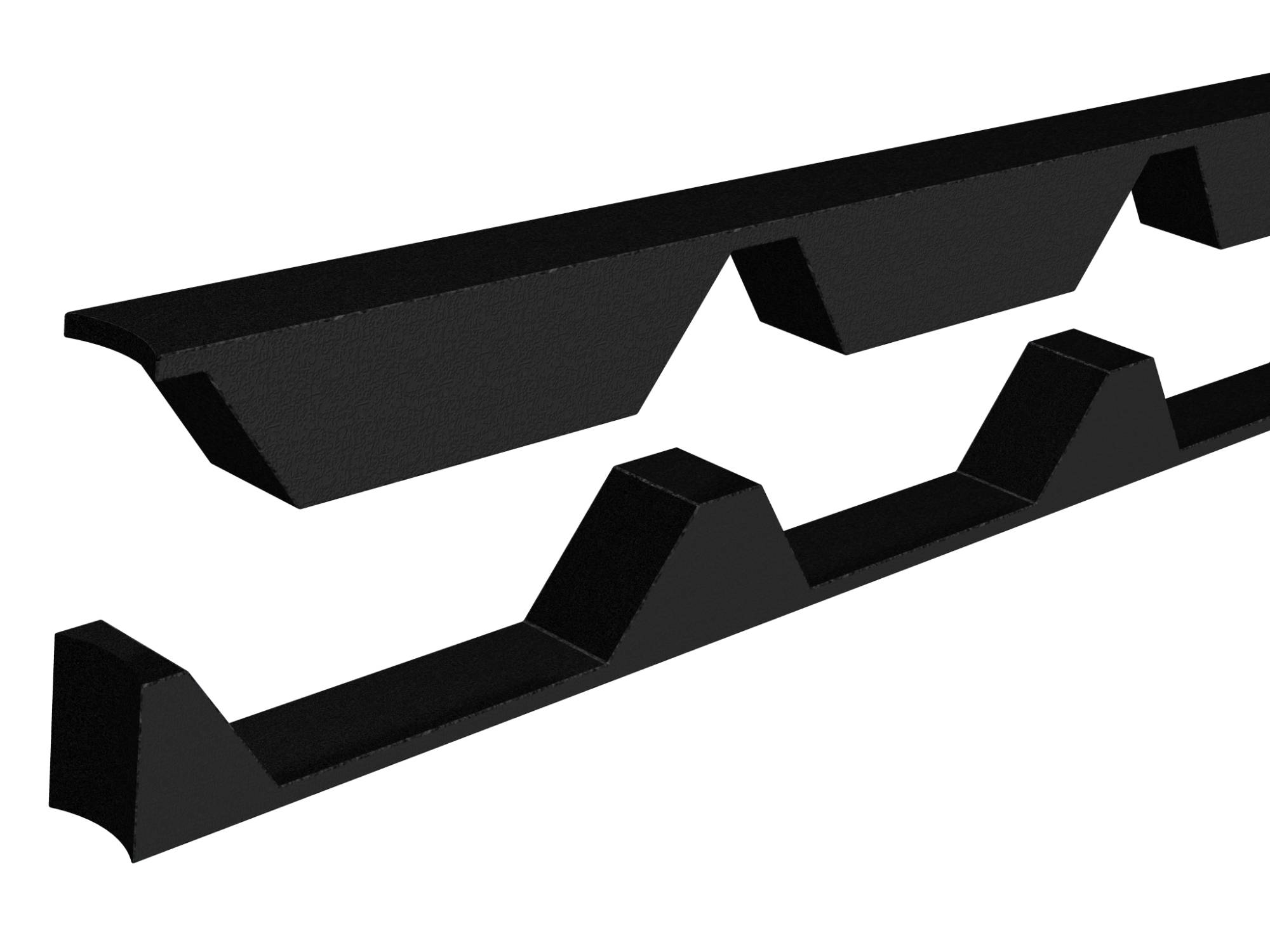

Filler blocks to seal cavities formed between profiled sheet materials and flashings.
Application
Sealing and weatherproofing between profiled sheet materials and flashings.
Description
Made-to-order filler block range is available to suit most profiles, sheets and panels available – cut to suit the exact dimensions of the profile, to bespoke manufacturer's specifications.
Features and benefits:
- Available to suit any internal and external profiled sheet
- Cut to match the exact dimensions of the profile flutes. Can be rake-cut to suit the plan and pitch angle of the roof
- EPDM synthetic rubber for greater life expectancy
- Options available for vented with or without insect mesh
General information
Color | Black |
Finish | Mill |
Material | EPDM |
Shape | Manufacturer guidanceCut to specific sheeting profile. |
Length | 1000 mm |
Width | 25 mm |
Height | Bespoke |
Uniclass | |
CAWS | H30/360 Profile fillers generally H31/300 Profile fillers generally H43/300 Profile fillers generally H32/220 Profile fillers H32/220 Profile fillers H30/60 Profile fillers H31/65 Profile fillers H43/40 Profile fillers |
Specification data - Ethylene propylene diene monomer (EPDM)-coated expanded polyethylene (PE) foam profile fillers
Profile | Guidance for specification option: Consult manufacturer and insert requirements. |
Thickness | 25 mm. |
Colour | Black. |
Fixing method | Self-adhesive tape.Mastic strip sealant.Manufacturer guidanceFillers can be supplied with a pre-applied self-adhesive tape or mastic strip sealant to aid positioning and sealing and save installers time on-site. Please specify which sealant is required and order ‘mastic to base’, ’mastic to profile’ or ‘mastic all round’. |
Density | 100–150 kg/m*. |
TemperatureRange | –56℃ to +70℃. |
Sustainability data
Country of product manufacture | United Kingdom |
