Profiles Panel Cubicle
Verified by manufacturer 5 months ago
MFC
MFC

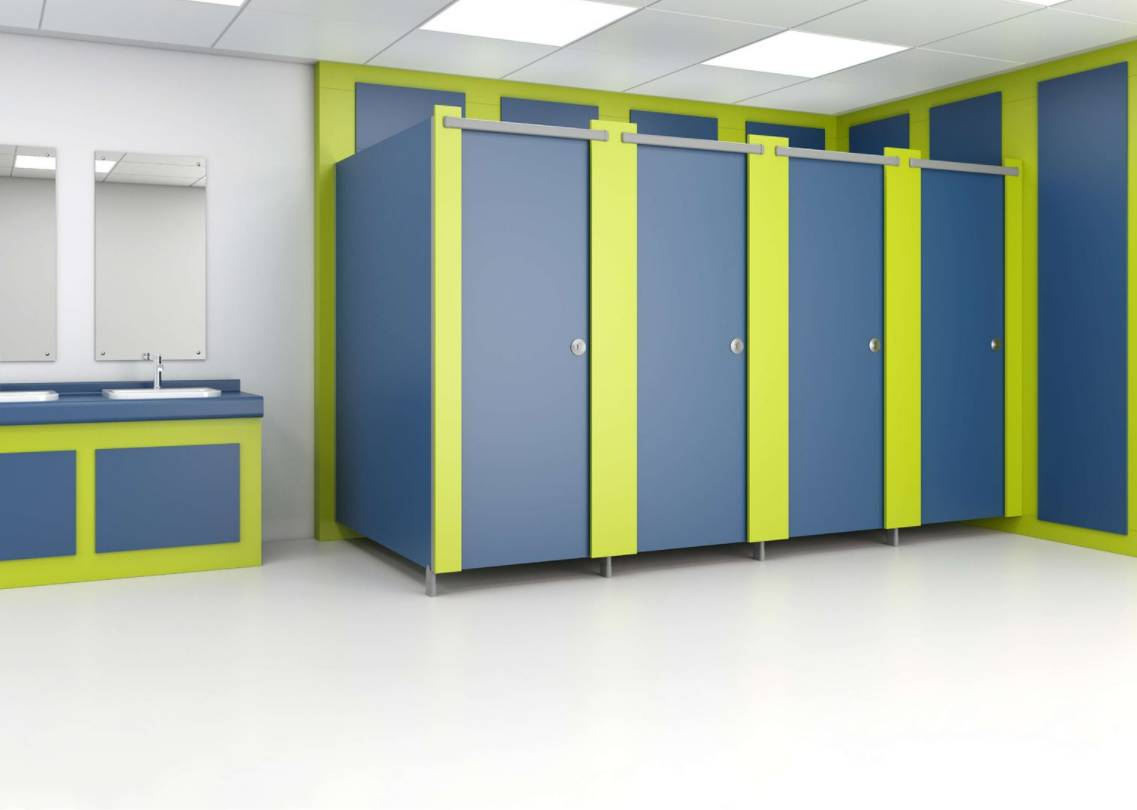

A robust and hardwearing panel cubicle; developed to be flexible enough to meet the needs of most environments and economical enough to meet most budgets.
Application
Suitable for most environments.
Description
A cubicle that delivers functional style and features shaped pilasters and a distinct lintel style headrail.
Features and benefits:
- Versatile and economical cubicle.
- Individual headrails for durability.
- Can also be specified with curtain rail or integral cubicle benching for changing rooms.
- Features sturdy aluminium feet and through-fixed headrail for strength.
- Cubicle hardware satin anodised aluminium with light grey ABS lock.
Components:
- HPL: High pressure laminate panels, supplied with square edge and 1.0 mm matching PVC lipping.
- MFC: Melamine faced chipboard panels, supplied with square edge and 1.0 mm matching PVC lipping.
- SGL: Solid grade laminate panels, supplied with polished black radiused edges.
- Frame comprising: Headrail, pilaster, legs, hinges and channel.
General information
Color | Blue Green Manufacturer guidancePanels: 34 laminate options and 3 digital prints; select from manufacturer literature. |
Finish | Smooth Laminated Guidance for specification option: Panels. Powder-coated Guidance for specification option: Aluminium components. |
Material | Laminate Guidance for specification option: Panels Chipboard Guidance for specification option: Backing, water resistant. Aluminium Guidance for specification option: Frame components. |
Shape | Rectangle |
Uniclass | |
CAWS | K32/10 Panel cubicles K32/120 Panel cubicles |
Product range |
Specification data - Panel cubicle systems
Panels | MFC, 650 kg/m³ grade chipboard backing, square edged.Guidance for specification option:
|
Panel supports | Powder-coated aluminium frame and legs, plastic moulded shroud. |
Pilasters | MFC. |
Doors | MFC, 650 kg/m³ grade chipboard backing, square edged.Guidance for specification option:
|
Lippings | 1 mm PVC lipping.Guidance for specification option: Supplied. |
Hardware | Headrail, pilaster, legs, hinges and channel. |
System accessories | Not required.Soap dispensers.Paper towel dispensers.Toilet roll holders.Hand dryers.Coat hooks.Door handles.Manufacturer guidanceSelection available, consult manufacturer literature. |
Pilaster shape | Square. Arrowhead. Crescent. |
Pilaster edge | Square with matching 1mm PVC lipping. Postformed vertical edges. |
Other requirements | Not required. Stylex printed doors. |
Overall thickness | 19 mm (nominal). |
Floor Clearance | 100 mm. |
Height: | 2140 mm. |
Headrail & Pedestal Foot | Satin anodised aluminium. |
Hinges & Channels | Satin anodised aluminium. |
Faceplate | Light grey. |
Panels & Pilasters | Manufacturer guidanceChoice of colours available; refer to manufacturer standard colour range. |
BIM objects
| Platform | Compatible | Version |
|---|---|---|
 DWG | - | 1 |
Literature
Bushboard Washrooms Brochure
Colour Selector
