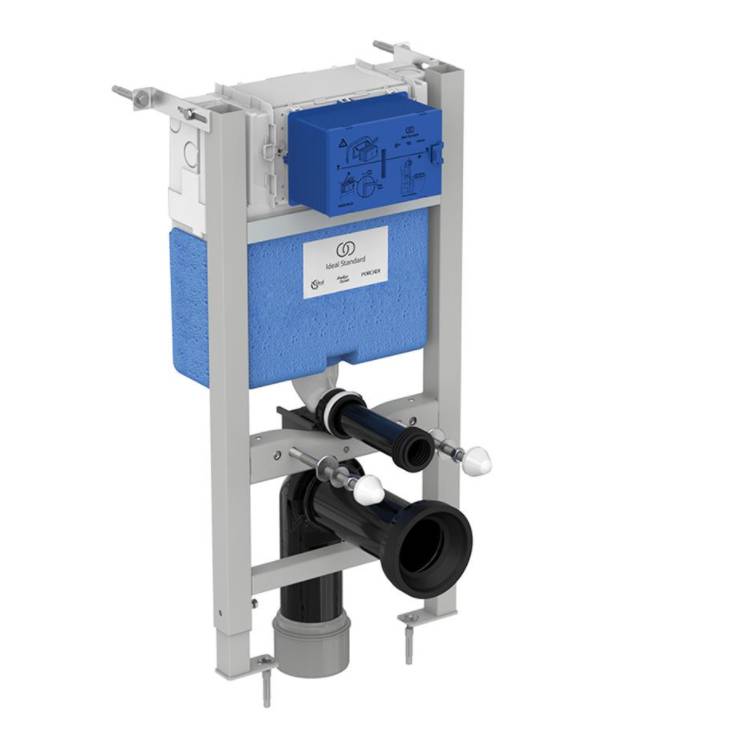

ProSys 820 mm height, mechanical wall hung WC frame

Verified by manufacturer 7 months ago

Ideal Standard (UK) Ltd

820 mm height, mechanical wall hung WC frame, 150 depth, front or top actuation.

Jump to:
+44 (0)870 122 8822 Website

Application

For use as mechanical wall hung WC frame.

Description

ProSys 820mm height, mechanical wall hung WC frame, 150 depth, front or top actuation.


Features and benefits:

  • Mechanical actuation.
  • Low height WC frame.
  • Tool-free maintenance.
  • Wide range of contemporary flush plates.
  • Water-saving smart valve (delay fill).
  • Easy adjustment to low water volume.
  • Weight: 9.41 kg.
  • Flush capacity: 6/4 Litres.
  • Suitable for use with selected Ideal Standard & Armitage Shanks wall hung WC bowls at 6/4 litre or 4.5/3 litre dual flush.
  • For use with Oleas and Septa Pro mechanical flush plates.
  • Not suitable for electronic actuation flush plates.
  • Front or top actuation.
  • Where top actuation is required use the R017667 front to top conversion kit.

General information

Color

Other

Finish

Other

Material

Plastic

Guidance for specification option:

Cistern material.

Steel

Guidance for specification option:

Frame material.

Length

150 mm

Width

400 mm

Height

820 mm

Warranty description

Ten year

Uniclass

Pr_40_20_93_87 WC cistern fittingsPrimary

CAWS

N13/500 Pre-plumbed frame system

N13/10 WC pans and flushing arrangements

N13/300 WCs and cisterns

N13/66 Pre-plumbed frame system

Specification data - WC cistern fittings

Approvals

Water Regulations Advisory Scheme (WRAS)-approved.

Integral accessories

Fixing bolts.

Dimensions

820 x 400 x 150 mm.

Guidance for specification option:

H x W x D.

Sustainability data

Contains Red List materials

No

Country of product manufacture

Portugal

BIM objects

Platform Compatible Version
Revit
-

1

Literature

Prosys

Prosys
