Verified by manufacturer 6 months ago

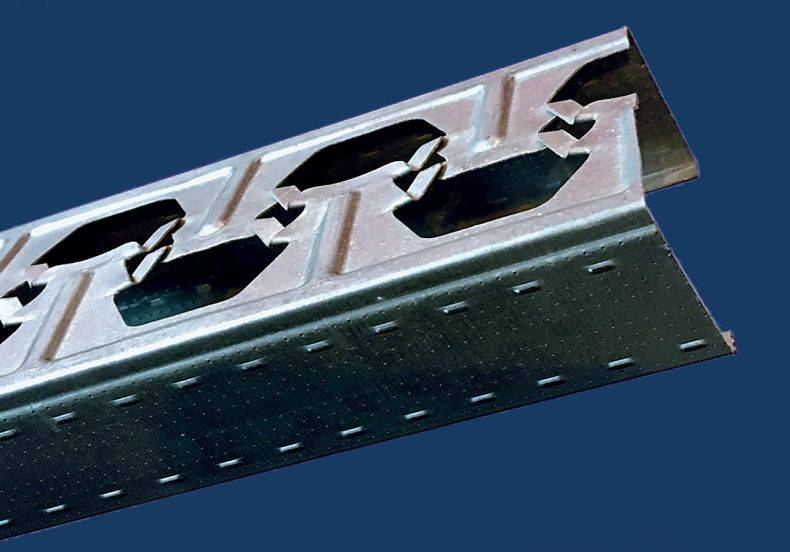

48.8 mm C stud
Steel partition profile range to DIN.
MAXI-TEC is an environmentally friendly steel partition profile range to actively contribute to ensure that sustainable guidelines can be reached and show how ecology, economy and ergonomics can be combined in drywall construction.
The design uses less raw material in the manufacturing process when compared to traditional drywall products, which in turn means reduced energy consumption and less
CO2 emissions.
MAXI-TEC stud and track profiles are a low cost, sustainable, high quality metal friction fit construction used to form the support frame for non-load bearing gypsum and specialist board partitions.
Color | Silver |
Finish | Galvanized |
Material | Carbon steel |
Shape | Rectangle |
Length | 2500 mm Guidance for specification option: Stud profiles only. 3000 mm Guidance for specification option: Stud profiles only. 3500 mm Guidance for specification option: Stud profiles only. 4000 mm 4500 mm Guidance for specification option: Selected stud profiles only. |
Width | 48.8 mm 73.8 mm 98.8 mm Manufacturer guidanceStud profiles only. |
Uniclass | |
CAWS | K10/125 Metal stud partition system K10/30 Metal stud |
Material | Galvanized lightweight cold-rolled steel.Guidance for specification option: 0.6 mm thick as standard. |
Component types | |
Partitions | Maxi-Tec C stud, 48.8 mm with U standard track, 50 mm.Guidance for specification option: Track: 40 mm deep; 4 m long as standard. Maxi-Tec C stud, 48.8 mm with U deep track, 50 mm.Guidance for specification option: Track: 60 mm deep; 4 m long as standard. Manufacturer guidanceMaxi-Tec C stud, 48.8 mm: Available in lengths of 2.5, 3.0, 3.5 and 4.0 m. Insert requirements or refer to drawing/ schedule etc. |
Accessories | Fire rated and acoustic sealant. Guidance for specification option: Available in 300 and 600 mL. Isolation foam strip, 45 mm. Guidance for specification option: 3 mm thick; supplied in 30 m rolls as standard. Self-adhesive on one side. Can be easily applied on site or where requested at time of order can be pre-applied to the tracks ready for use on site. Acoustic foam open cell strip, 45 mm. Guidance for specification option: 10 mm thick; supplied in 10 m rolls as standard. Self-adhesive on one side. Designed to isolate the track or stud profiles from the substrate hence reducing the possibility of flanking transmission through the frame. Installed on the underside of the track when laying out and to the back of the stud profile when starting a frame from an existing wall or flat surface. Flanking strip, 100 x 5 mm. Guidance for specification option: Supplied in 50 m rolls as standard. Self-adhesive on one side. Flanking strip with polythene skirt, 100 x 5 mm. Guidance for specification option: Supplied in 50 m rolls as standard. Self-adhesive on one side. |
Contains Red List materials | No |
Country of material origin | Europe |
Country of product manufacture | United Kingdom |
Recyclability | 100 |
Recycled contentAs defined in clause 7.8 of BS EN ISO 14021 | 25 % |
