ProTherm Quantum XPS Infill
Verified by manufacturer 3 months ago
Thickness: 20 mm.
Thickness: 20 mm.
BBA Agrément Certificate
Certificate type
Extruded polystyrene (XPS) board with integral high density skin to match the thickness of an adjacent Quantum Vacuum Insulated Panel. Infill zones installed to areas where VIP cannot be accommodated.
Application

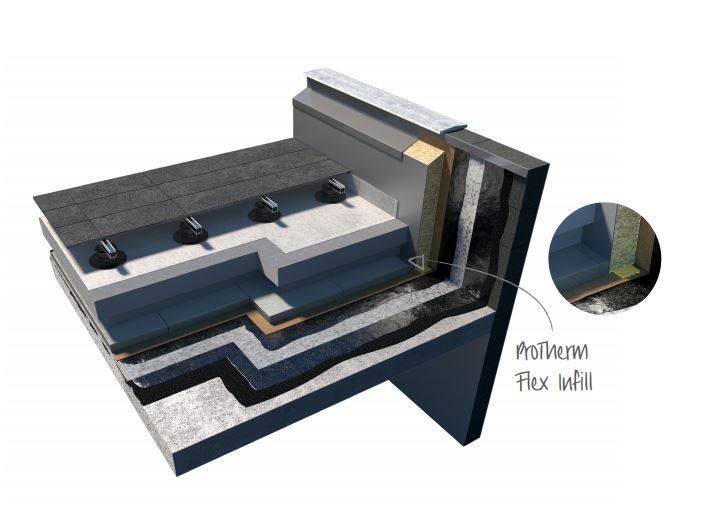

- Used to infill at perimeters and around penetrations in conjunction with ProTherm Quantum VIP Panels, and as a packer board to achieve a required height in ProTherm Quantum ‘Hybrid’ systems.
- For use in the ProTherm Quantum VIP Insulation System installed over any BBA Certified Inverted roofing systems.
Description
Used to infill at perimeters and around penetrations in conjunction with ProTherm Quantum ‘Hybrid’ and ‘Pure’ VIP insulation boards, ProTherm Infill Boards are an all-round thermal insulation board with smooth surface and overlap.
Ensure a complete design of a ProTherm Quantum system is completed by our in-house design team by submitting a scale 2D layout with any roof penetrations (service pipes, balustrade posts, rainwater outlets) clearly marked. U-values are calculated based on a ratio of Quantum VIP to XPS infill, so a detailed scheme is essential.
Features and benefits:
- A rigid, closed cell type extruded polystyrene board with integral high density skin.
- Has a Zero Ozone Depletion Potential (ODP).
- Global Warming Potential (GWP) of less than 5.
- A rating in accordance with the Green Guide to Specification.
- Certifications: ISO 9001@2008 Quality Management System, ISO 14001 :2004 Environmental Management System, EPD as per ISO 14025 and EN 1580.
General information
Color | Grey |
Finish | Unfinished |
Material | High density extruded polystyrene (XPS) Guidance for specification option: Extruded polystyrene board. |
Shape | Other |
Length | Bespoke |
Width | Bespoke |
Height | Bespoke |
Warranty description | 40 year |
Uniclass | |
CAWS | J31/332 Extruded polystyrene (XPS) insulation J42/415 Extruded polystyrene (XPS) insulation J42/27 Thermal insulation J21/25 Warm deck roof insulation J21/415 Extruded polystyrene (XPS) insulation J21/10 Warm deck roof coating |
Specification data - Extruded polystyrene (XPS) boards
Standard | To BS EN 13164. |
Third party product certification | British Board of Agrément (BBA) Certification. |
Fire performance | To BS EN 13501-1, Class E. |
Compressive strength (minimum) at 10% compression | To BS EN 826, 300 kPa. |
Thermal conductivity (maximum) | 0.035 W/mK. |
Thickness | 20 mm. |
Face size (length x width) | 1250 x 600 mm. |
Facing | Skin. |
Edges | Shiplap. |
Density | To BS EN 1602, 34 kg/m³. |
Compressive creep (design load) maximum 2% deflection after 50 years | To BS EN 1606, 130 kN/m². |
Water absorption | To BS EN 12087, <0.7 %. Guidance for specification option: (Long term water absorption by diffusion: to BS EN 12088 <3%). Manufacturer guidanceLong term water absorption by immersion (28 days). |
Water vapour diffusion resistance | To BS EN 12086, 80–200 %. |
Freeze thaw cycle | To BS EN 12091, <1 %. Manufacturer guidanceAfter 300 cycles. |
Linear thermal expansion coefficient | 0.07 E. |
Service temperature | +75 E. Manufacturer guidanceMaximum. |
Sustainability data
Contains Red List materials | Yes |
Country of material origin | Europe |
Country of product manufacture | Europe |
Recyclability | 0 |
Recycled contentAs defined in clause 7.8 of BS EN ISO 14021 | 0 % |
Third party certifications

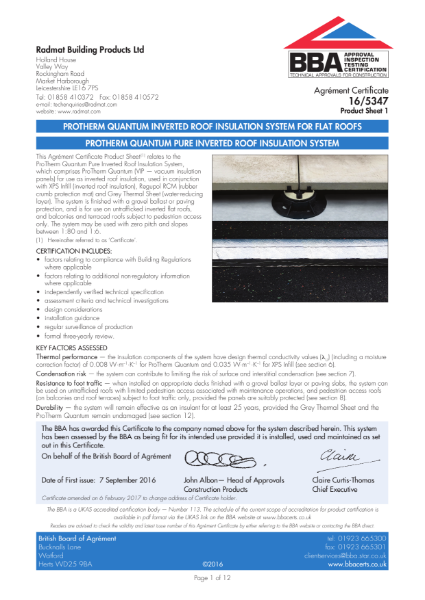

BBA Agrément Certificate
16/5347 ProTherm Quantum Hybrid
BBA Agrément Certificate
16/5347 ProTherm Quantum Pure
