ProTherm ROCKWOOL HARDROCK Multi-fix (DD) Insulation
Verified by manufacturer 4 months ago
60 mm
60 mm
BBA Agrément Certificate
Certificate type

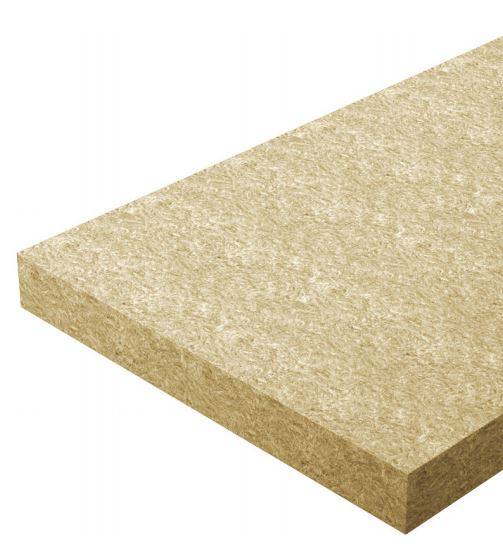

Non-combustible dual-density mineral wool insulation board.
Application
Suitable for use with EshaFlex, EshaGum, EshaPlan, EshaUniversal and ParaFlex roofing systems either bonded to an EshaBase vapour control layer using EshaStik adhesive or mechanically fastening using appropriate ProFast fasteners and pressure plates.
Description
Non-combustible dual-density mineral wool insulation board.
Features and benefits:
- Manufactured from volcanic rock, producing a non-combustible dual-density mineral wool insulation board that provided distinctive fire and acoustic performance.
- Achieves LPC LPS 1181: Part 1 EXT A rating, complies with Zurich School and Academy Design guide and HTM05-03 guidance for healthcare.
- Chemically inert and safe to use; see manufacturer's safety data sheet for further information.
General information
Color | Beige |
Finish | Unfinished |
Material | Mineral wool |
Shape | Rectangle |
Length | 1200 mm |
Width | 1000 mm |
Height | 60 mm 85 mm 105 mm 115 mm 150 mm |
Warranty description | 25 year |
Uniclass | |
CAWS | J42/27 Thermal insulation J41/26 Thermal insulation J21/425 Mineral wool insulation J31/334 Mineral wool insulation J41/425 Mineral wool (MW) insulation Q37/310 Inverted roof insulation J31/26 Thermal insulation J21/25 Warm deck roof insulation J42/425 Mineral wool (MW) insulation J42/10 Warm deck roof covering |
Specification data - Mineral wool slab insulation
Standard | Achieves LPC LPS1181: Part 1 EXT A rating, complies with Zurich School and Academy Design guide and HTM05-03 guidance for healthcare. |
Thickness | 60 mm. |
Edges | Butt. |
Density | 160 kg/m³.Guidance for specification option: (typical.) |
Thermal conductivity (maximum) | 0.039 W/mK. |
Length x width | 1200 x 1000 mm. |
Weight | 28.8 kg. Manufacturer guidanceTypical weight 150 mm thick board |
Water vapour resistance | 5.9 MNs/g. Guidance for specification option: (Typical.) |
R-Value | 1.54 m²k/W. |
U-value | 0.59/0.57/0.55 Wm²k. Manufacturer guidanceTypical U value on metal deck/ concrete deck/ timber deck: |
Sustainability data
Contains Red List materials | No |
Country of material origin | Europe |
Country of product manufacture | Europe |
Recyclability | 100 |
Recycled contentAs defined in clause 7.8 of BS EN ISO 14021 | 60 % |
Third party certifications
Literature

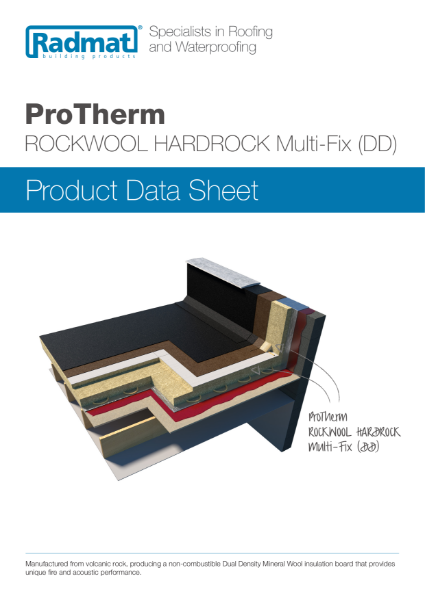

ProTherm ROCKWOOL HARDROCK Multi-Fix DD Product Data Sheet
