PURe® Slide Lift & Slide Door

Verified by manufacturer 5 days ago

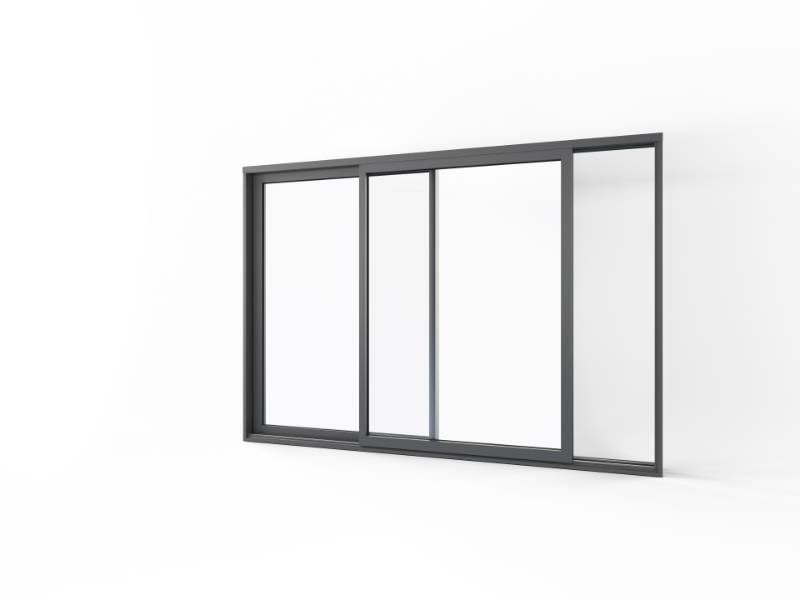

PURe® SLIDE Lift & Slide Door System Double Track - OXX

Senior Architectural Systems Ltd Variant:

Robust, enhanced performance lift and slide track door system.

Jump to:
BOS
+44 (0)1709 772600 Website

Description

Lift and slide door system available with a single, double or triple track offering enhanced weathering performance and multiple fixed/ opening combinations.


Features and benefits:

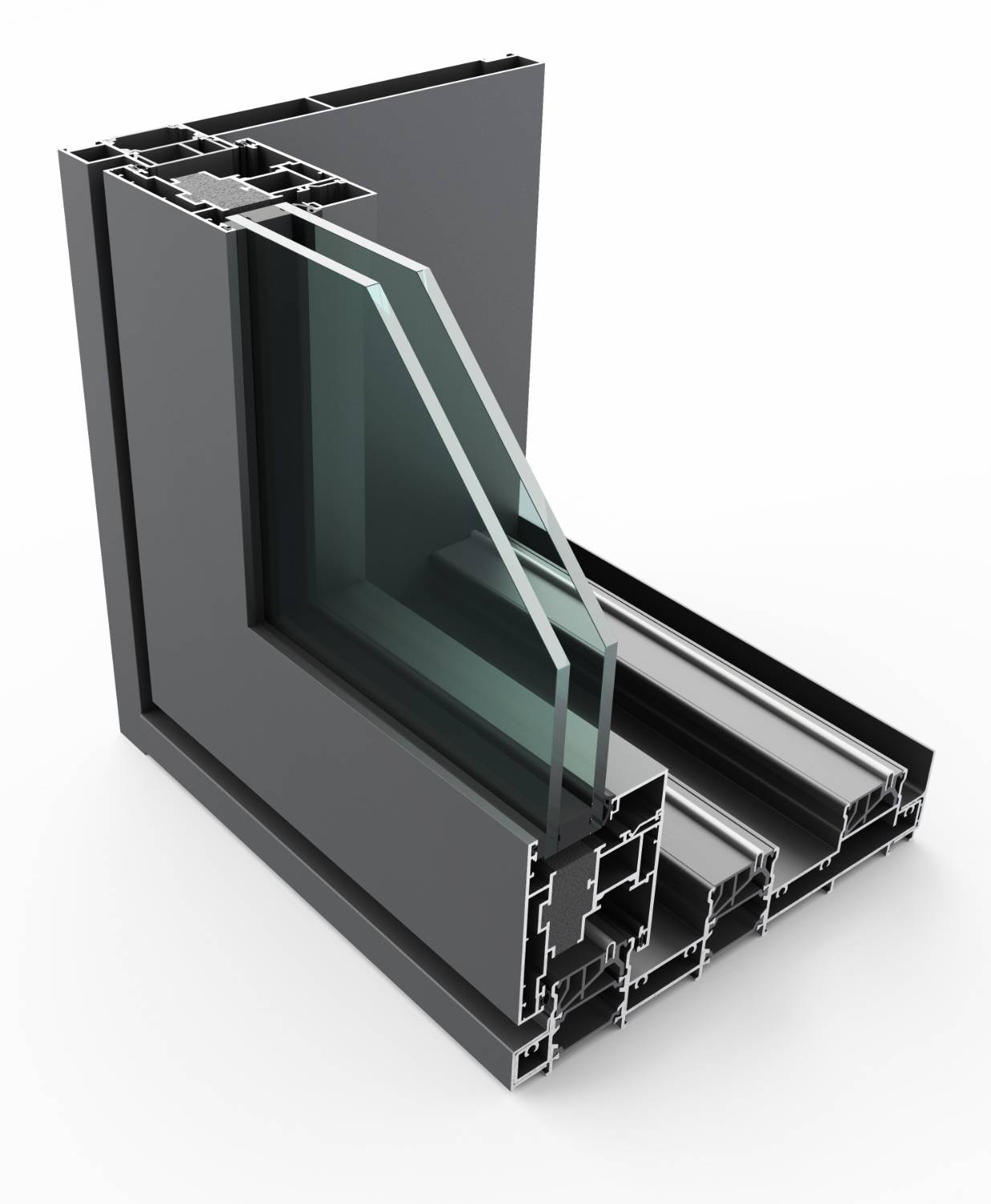

  • Innovative PUR thermal break.
  • Precision engineering to glide effortlessly open.
  • Full flexibility with heights up to 3000 mm.
  • Easy to fabricate, install and adjust.


Size limitations:

  • Minimum frame height = 1900 mm.
  • Maximum frame height = 3000 mm.
  • Minimum door Sash Height = 1816 mm.
  • Maximum door Sash Height = 2916 mm.
  • Minimum door Sash width = 800 mm.
  • Maximum door Sash width = 3005 mm.
  • Maximum door Sash weight = 200 Kg.
  • Width to height ratio 1:2.5 Maximum.

General information

Finish

Powder-coated

Anodized

Material

Aluminium

Length

Bespoke

Width

Bespoke

Height

Bespoke

Uniclass

Pr_30_59_24_80 Sliding door and partition setsPrimary

CAWS

H11/135 Doors

L20/520 Sliding doors

L20/60 Doors

Product range

PURe® SLIDE

Specification data - Sliding door and partition sets

Performance

External.

Arrangement

Multi-leaf bottom rolling.

Track system

Double track.

Door leaves

-

Finish and colour

Anodized.

Guidance for specification option:

Insert colour requirements, 25 µm (minimum), satin or polished finish available.

Polyester powder coated.

Guidance for specification option:

Insert colour requirements, 40 µm standard and 60 µm available for marine environments.

Operation

Manual.

Air permeability

600 Pa.

Wind load resistance

1200 Pa.

Watertightness

600 Pa.

Thickness

28–52 mm.

Glazing unit

Double.

Triple.

SecurityRating

To PAS24: 2012; Q-Mark fully certified.

Sustainability data

Country of product manufacture

United Kingdom

Recyclability

100

BIM objects

BOS

NBS BIM Object Standard

This BIM object has been authored to meet the requirements of the NBS BIM Object Standard.

Find out more about the NBS BIM Object Standard.

Platform Compatible Version
IFC
-

1

Revit

Revit 2016

1

Literature

PURe® Slide Lift & Slide Door Technical Datasheet

PURe® Slide Lift & Slide Door Technical Datasheet

Introduction to Senior Architectural Systems Brochure

Introduction to Senior Architectural Systems Brochure

SAS BREEAM Brochure

SAS BREEAM Brochure

SAS CPD Seminars 2023

SAS CPD Seminars 2023

SAS Featured Projects Brochure

SAS Featured Projects Brochure

SAS Accommodation Brochure

SAS Accommodation Brochure

SAS Commercial Brochure

SAS Commercial Brochure

SAS Education Brochure

SAS Education Brochure

Similar products from Senior Architectural Systems Ltd

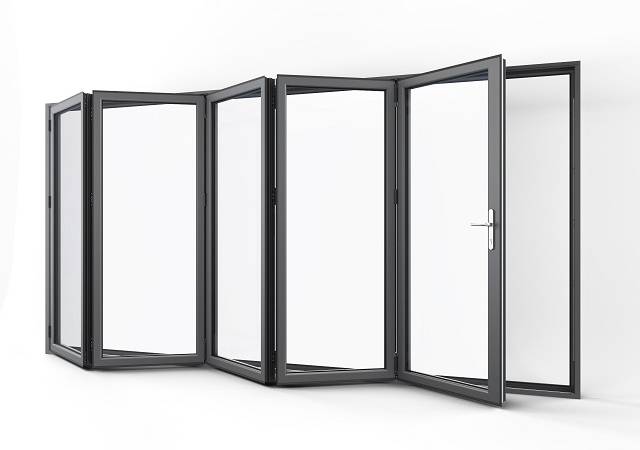

Ali FOLD Folding Door System

Ali FOLD Folding Door System

Ali SLIDE Inline Sliding Door

Ali SLIDE Inline Sliding Door

PURe® FOLD Folding Door

PURe® FOLD Folding Door

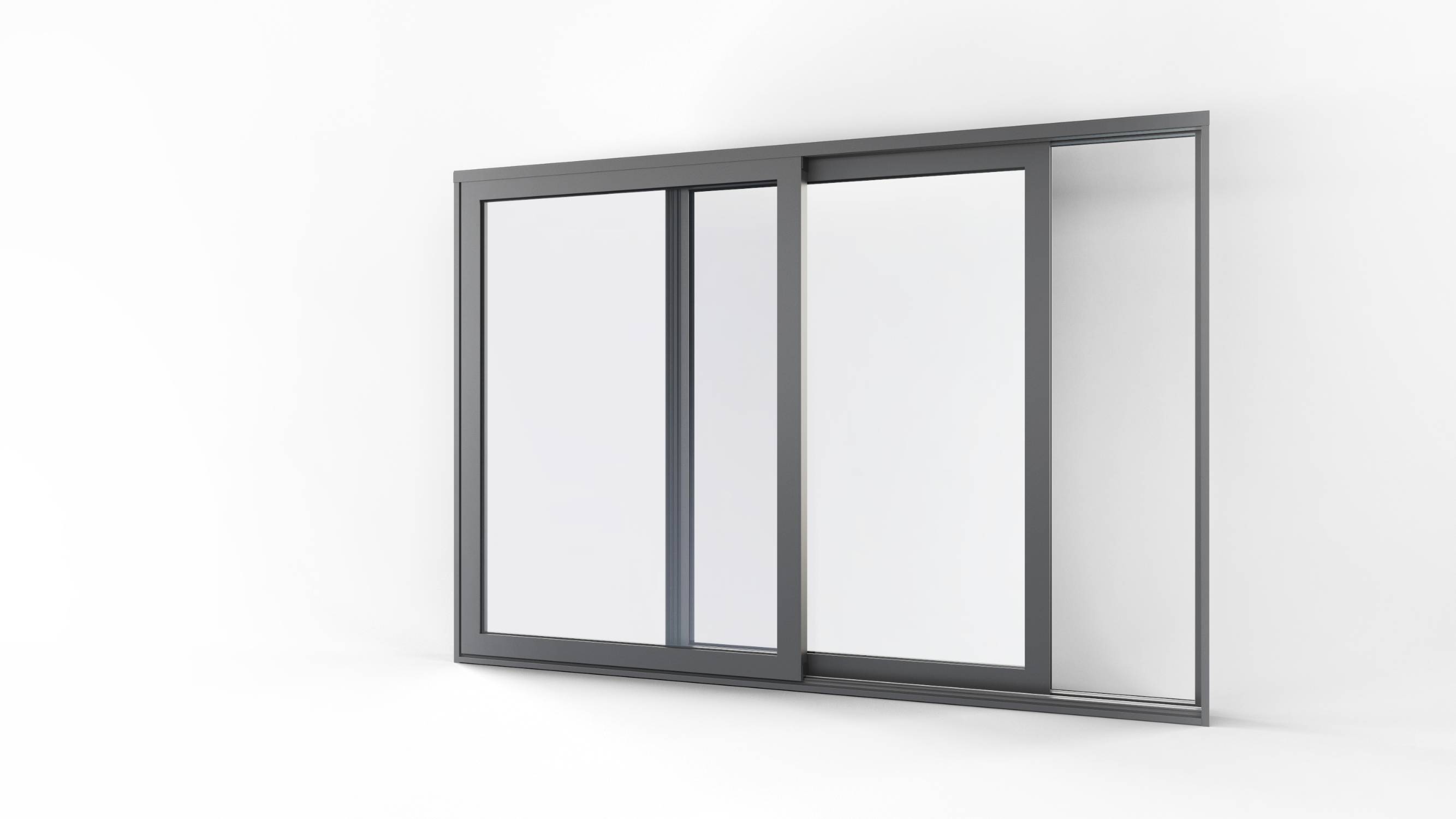

PURe® Slide Inline Sliding Door
