Pyrobel 16 VL
Cradle to Cradle Certified
Certificate type
Certifire Certificate
Certificate type
Butt-joined systems using multiple Pyrobel fire-resistant glass panes interconnected by means of a 4–5 mm silicone joint, which offers a maximum of light transparency.
Modern and stylish choice for glazed solutions without mullions. The typical frame material used is wood, aluminium or steel but it should only be installed in a system that has been fire tested with this glass.
Butt-joined systems using multiple Pyrobel fire-resistant glass panes interconnected by means of a 4–5 mm silicone joint, which offers a maximum of light transparency.

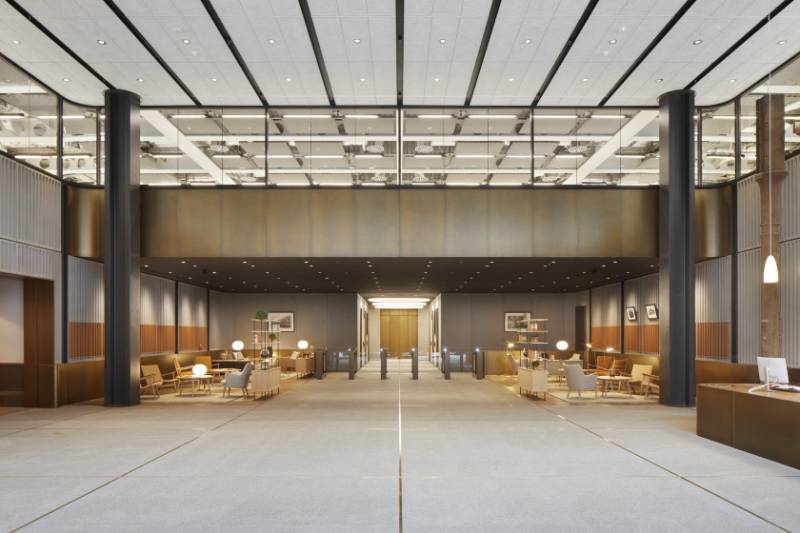

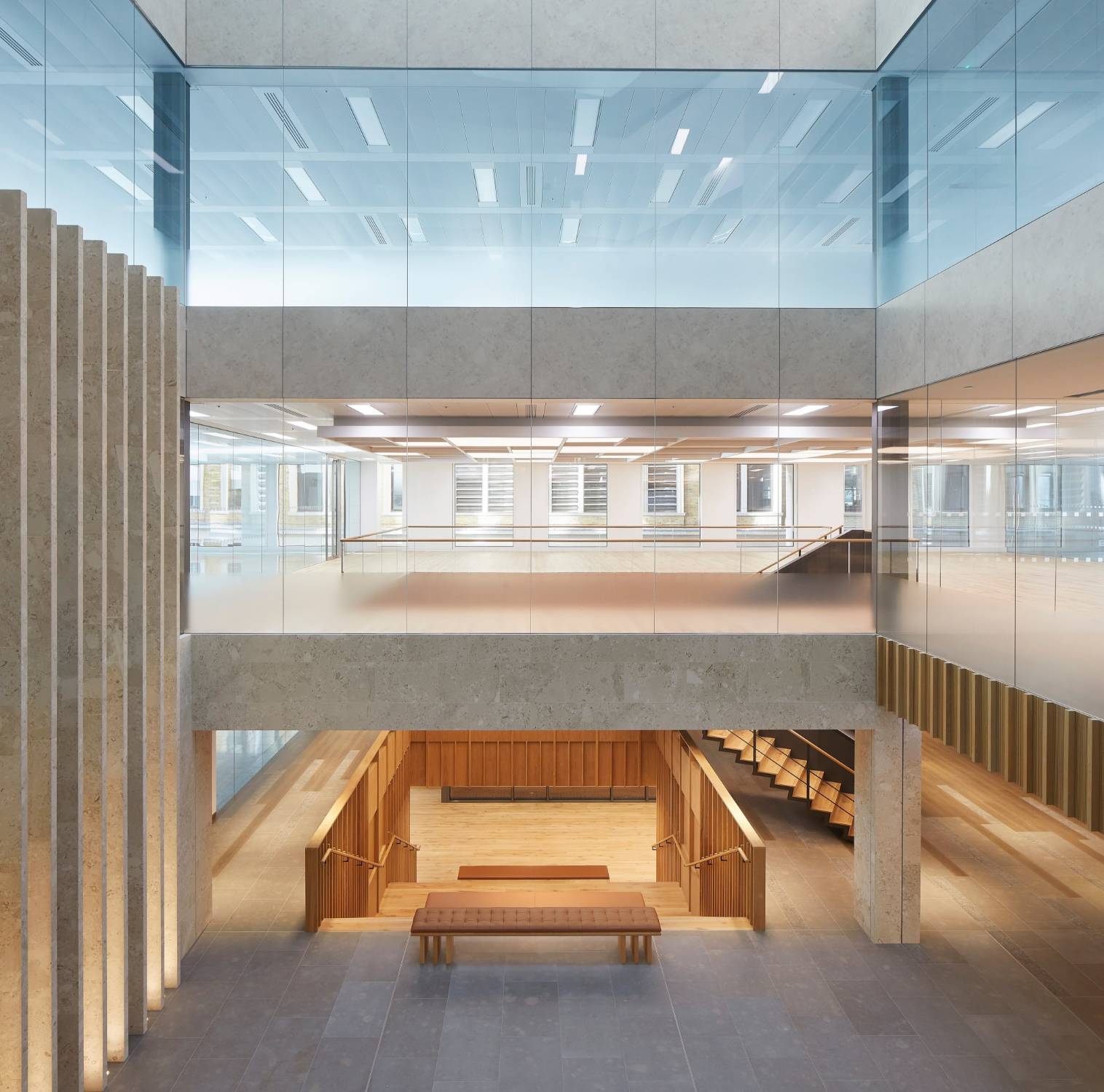

Pyrobel Vision Line delivers fire-resistant, unbroken walls of glass that ensures a broad field of vision, suited to modern fully glazed partitions. The glass delivers fire protection in both directions according to the standard EN 13501-2.
Features and benefits:
Also available in external grade versions with an extra glass pane that acts as a UV filter.
Color | Clear |
Finish | Smooth |
Material | Glass |
Length | Bespoke |
Width | Bespoke |
Height | Bespoke |
Warranty description | Five year |
Uniclass | |
CAWS | L10/51 Glazed screen system L10/560 Glazed screen system L10/550 Glazed metal screens L10/510 Glazed wood screens |
General requirements | Glass generally. |
Third-party certification | Cradle to Cradle Certified Silver; Environmental Product Declaration (EPD); Certifire CF377. |
Laminate glass type | Fire and safety. |
Thickness | 17.3 mm. |
Outer leaf | Manufacturer's standard. |
Inner leaf | Manufacturer's standard. |
Sealing | 4–5 mm silicone joint. |
Body colour | Clear. |
Pattern | Transparent. |
Performance requirements | |
Fire resistance | |
Integrity | To BS EN 13501-2, E 30 minutes. |
Insulation | To BS EN 13501-2, EI30. |
Light | Transmission: 85%; reflectance: 8%. |
Sound attenuation | To EN 12758 Rw (C; Ctr): 39 (-1; -3) dB. |
Impact resistance | To BS EN 12600, 2B2. |
Product Reference | Pyrobel 16 VL Guidance for specification option: Weight: ca 40 kg/m². |
Overall size | Guidance for specification option: Please consult manufacturer for maximum sizes approved within the appropriate fire performance certification. |
ShapeType | Rectangular. Special order. Guidance for specification option: Consult manufacturer for options. |
Thermal conductivity | To EN 673, 5.3 W/m²K. |
Contains Red List materials | No |
Country of material origin | Europe Manufacturer guidanceMaterials originate from around Europe. |
Country of product manufacture | Europe |
Recyclability | 100% |
