Stratobel Strong
Verified by manufacturer 18 days ago
44.2 (Two 4-mm panes, two clear interlayers)
44.2 (Two 4-mm panes, two clear interlayers)
A laminated glass sheet created for safety applications.
Application

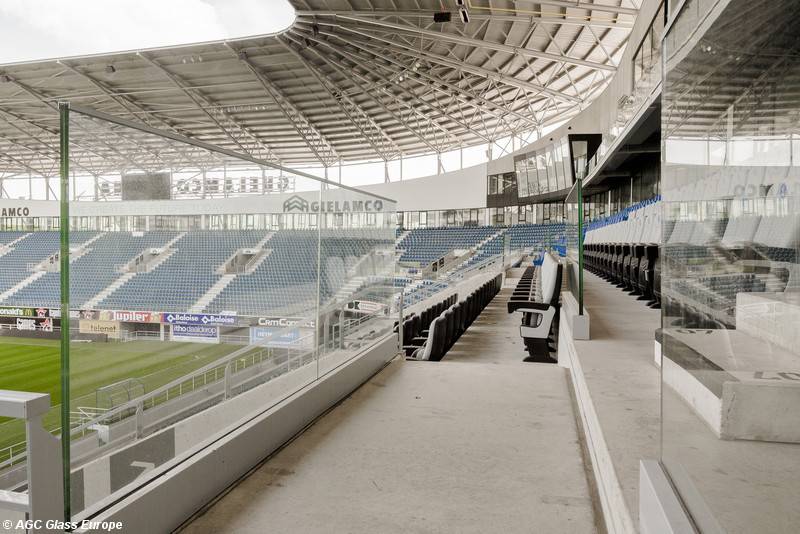

Suitable for glass applications in which safety is considered and necessary. Applications include free-standing glazed balustrades, glazed roofs, windows and partitions.
Description
A laminated glass sheet created with additional safety considerations.
Upon request, it is also possible to laminate sheets of Planibel Colour or coated glass products.
Features and benefits:
- Incorporates a plastic film that is 100 times more rigid than the PVB interlayers usually used in conventional safety and security glazing.
- Its stronger composition means enhanced mechanical properties including higher load capacity and lower glass deflection under load.
- Strong PVB adhesion to the glass results in lower sensitivity to moisture and better edge stability.
- Developed exclusively for AGC, this special PVB film also features a perfectly neutral appearance that does not alter the colour of the glass whatsoever. This is especially noticeable when the highly transparent Planibel Clearvision is used in the Stratobel Strong assembly.

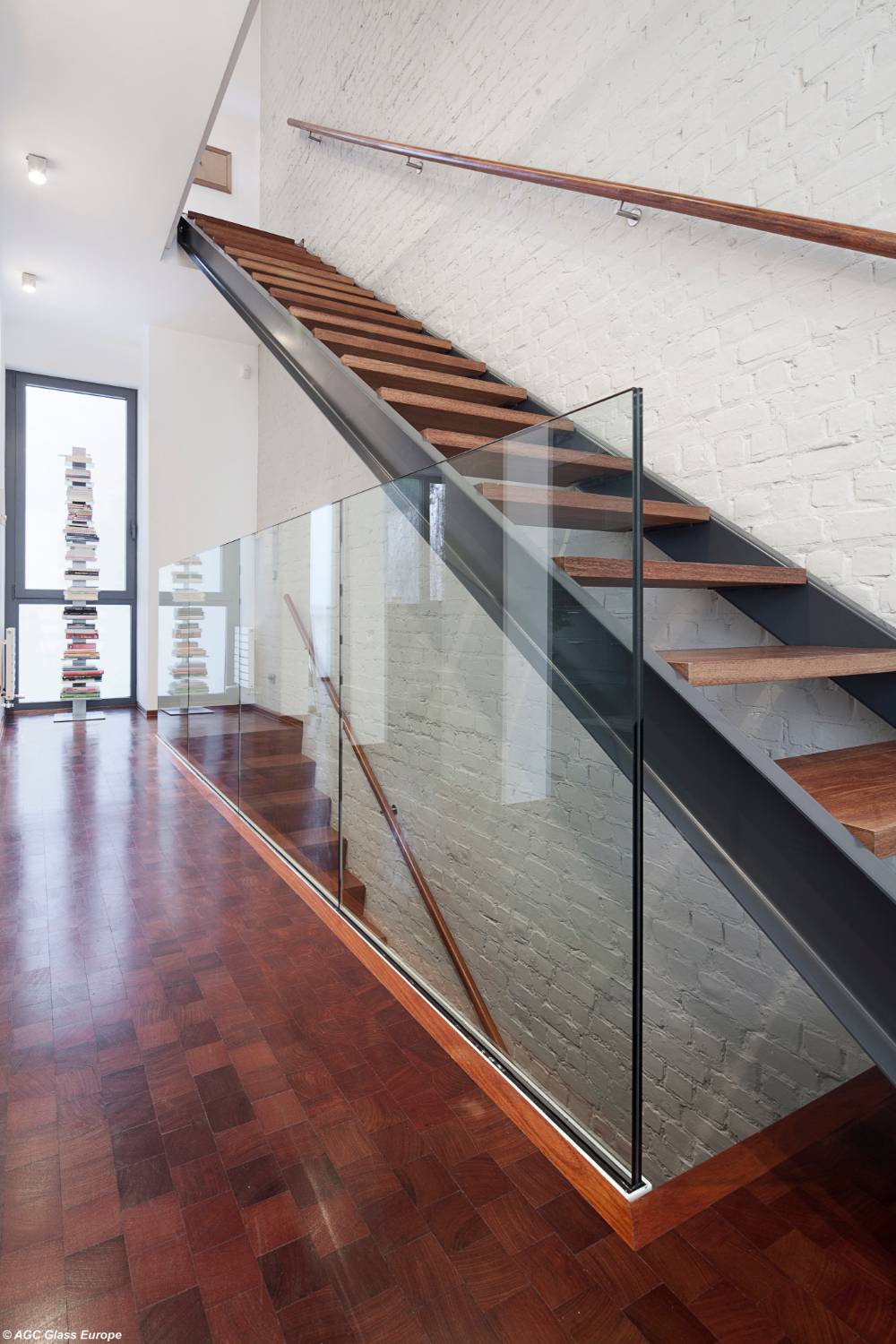

- Typically specified for free-standing (rail system) glazed balustrade. The special interlayer within the laminated glass provides safety and security properties, resistance to moisture and an excellent, fully transparent aesthetic.
- Can be applied to vertical and horizontal applications.
- Multiple size options, up to 6000 x 3210 mm.
- Numerous tests and certification available, along with technical support and expertise.
General information
Color | Clear |
Material | Glass |
Shape | Rectangle |
Length | 6000 mm Guidance for specification option: Maximum sheet size. |
Width | 3210 mm Guidance for specification option: Maximum sheet size. |
Warranty description | Ten year |
Uniclass | |
CAWS | L10/33 Proprietary windows L10/25 Aluminium windows L10/20 Steel windows L10/15 Wood windows L10/10 Wood windows L10/400 Composite windows L10/390 Proprietary windows L10/330 Aluminium windows L10/310 Steel windows L10/210 Wood windows |
Specification data - Laminated glass sheets
General requirements | Glass generally. |
Third-party certification | Cradle to Cradle™ Certified Silver; Environmental Product Declaration (EPD). |
Laminate glass type | Safety. |
Thickness | 8.8 mm. |
Outer leaf | Manufacturer's standard. |
Inner leaf | Manufacturer's standard. |
Interlayer to glass leaves | Two layers of Stratobel Strong PVB. |
Sealing | Manufacturer's standard.Guidance for specification option: Edge stability*: 26 months without delamination in extreme climatic conditions (four months for standard PVB). *Natural weathering in situ (Desert near Miami, Florida, USA - Tested during 56 months) - UV and humidity mixed, high temperature cycle daily. |
Body colour | Clear. |
Pattern | Transparent. |
Coating | |
Type | Clearlite.Clearvision. |
Colour or effect | Clear. |
Performance requirements | |
Fire resistance | |
Integrity | Manufacturer's standard. |
Insulation | Manufacturer's standard. |
Radiation | Manufacturer's standard. |
Light | Manufacturer's standard.Guidance for specification option: Clearlite: 83–89% (across standard thicknesses). Clearvision: 91% (across standard thicknesses). Final light transmission value is dependent is overall configuration specified; consult manufacturer's literature for details. |
Solar control | Manufacturer guidanceEnergy absorption (EA): Clearlite: 16–30% (across standard thicknesses). Clearvision: 10–14% (across standard thicknesses). Final EA value is dependent is overall configuration specified; consult manufacturer's literature for details. |
Sound attenuation | Manufacturer's standard. |
Impact resistance | To BS EN 12600, 1B1. |
Security | To EN 356, P2A. |
Sustainability data
Contains Red List materials | No |
Country of material origin | Manufacturer guidanceMaterials originate from around Europe. |
Literature
Stratobel Strong - Laminated Safety Glass
