RASCOtec Injection Channel
Verified by manufacturer 1 day ago
EPD
Certificate type
Injection channels for waterproofing all types of construction joints.
Application
Injection channels are suitable for waterproofing all types of construction joint in general building and civil engineering works.
Description
The RASCOtec injection channel is a distinctive system solution in comparison to the injection hoses. The main difference lies in the wider, flat support on the first concreting section. This support increases the contact with the injection gel considerably.
Features and benefits:
- Easy fixing.
- 25 mm wide contact surface over joint.
- No obstruction to steelfixing or formwork erection.
- Allows multiple injection.
- Remains flexible in cold conditions.
- Weather-independent installation.
General information
Color | Black Yellow |
Material | High density polyethylene (HDPE) Polyester |
Shape | Rectangle |
Length | 2000 mm |
Width | 30 mm |
Height | 20 mm 40 mm |
Warranty description | 25 year |
Uniclass | |
CAWS | E40/320 Hydrophilic waterstops E40/310 Flexible waterstops |
SKU Code | 1102.1011.020, 1102.1011.040 |
Specification data - Injectable hose waterstops
Classification data | |
Certification | German National Test Certificate. Guidance for specification option: Waterproofing system for construction joints. |
Injection material | Manufacturer guidanceA wide variety of grouting materials can be used in conjunction with the RASCOtec injection channels. Consult manufacturer and insert requirements. |
Channel | Black/ yellow polyethylene (HDPE) channel with polyester foam strip. |
Dimensions | 25 x 20 mm. Guidance for specification option: The standard injection channel with 20 mm foam insert. 25 x 40 mm. Guidance for specification option: Injection channels with a 40 mm high foam insert should be used in case of extreme irregularities in the base. Manufacturer guidanceWidth x height. |
Integral accessories | RASCOtec IC Feeder Cap, RASCOtec IC Connector Cap, RASCOtec Target, RASCOtec IC Angel 90°, RASCOtec IC sealing end, RASCOfix Nail Plugs, Nozzle hose. |
Sustainability data
Contains Red List materials | No |
Country of material origin | Switzerland |
Country of product manufacture | Switzerland |
Manufacturing plant location | |
Material | High density polyethylene (HDPE) Polyester |
Recyclability | 100% |
Expected Life | Lifetime |
Product certifications
Product certifications
EPD
Declaration of compliance with EPD (Environmental Product Declaration)
Literature
Literature type

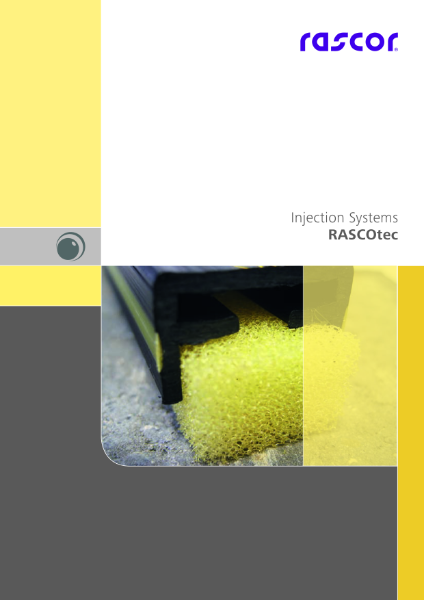

RASCOtec Injection Systems

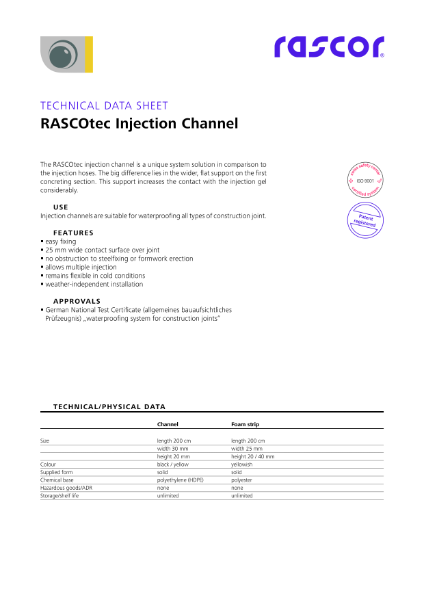

RASCOtec Injection Channel TDS

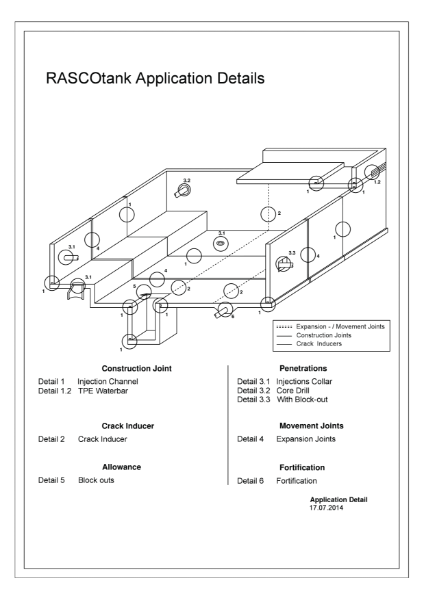

RASCOtank Application Details

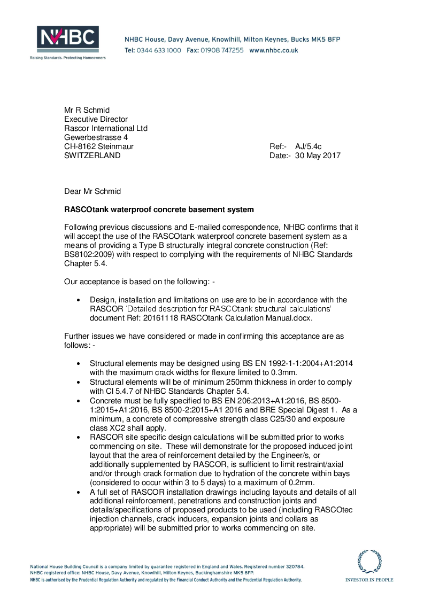

20170531 NHBC Acceptance RASCOtank
Declaration of conformity according to REACH regulation EN (10.2024)

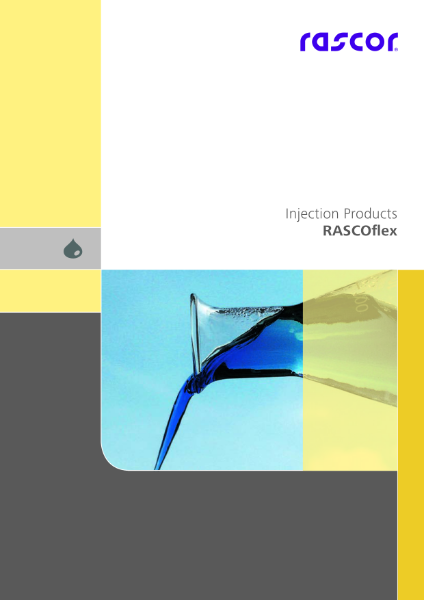

RASCOflex Injection Products

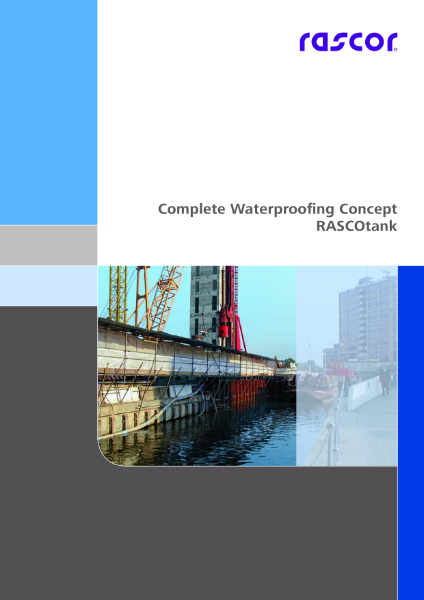

RASCOtank Complete Waterproofing Concept

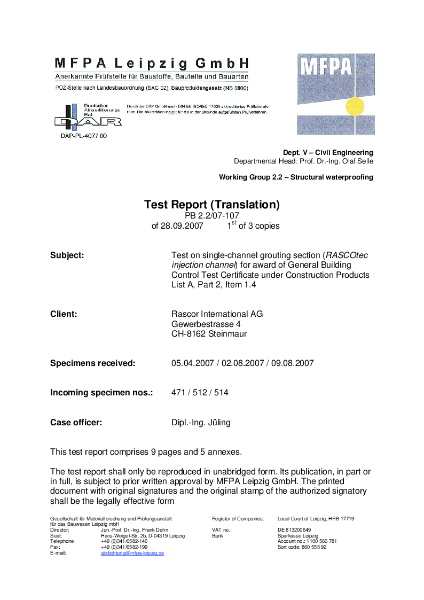

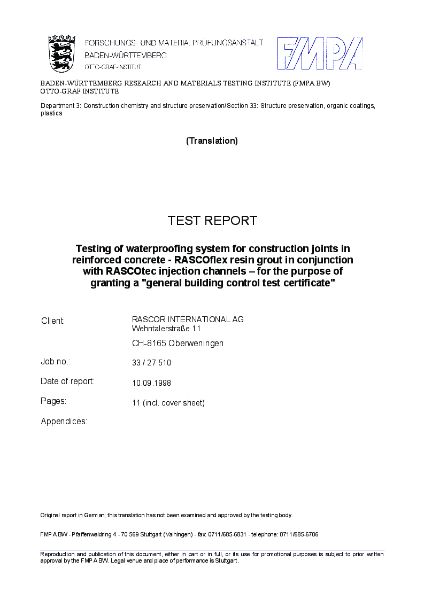

RASCOtec Inject-Channel PB25 AbP5 Test report-building regulation test cert (EN)
RASCOtec injection channel AbP6_EN

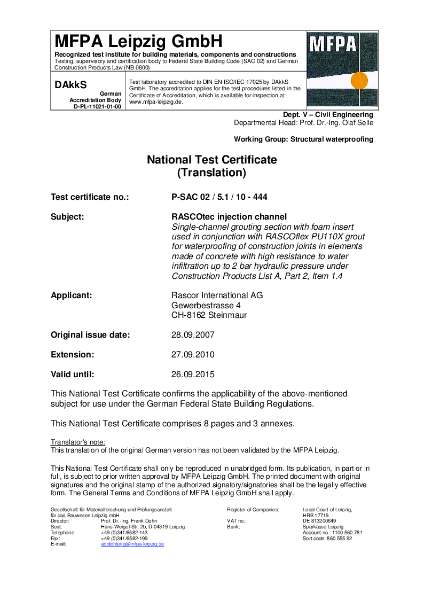

RASCOtec Injection Channel PB18 AbP1 General building regulations test cert.(EN)

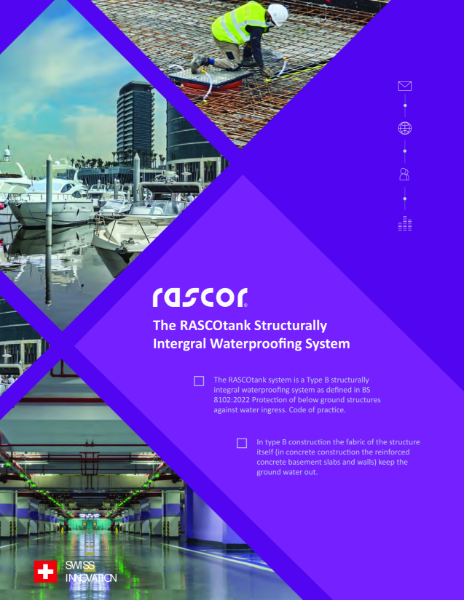

The RASCOtank Structurally Integral Waterproofing System
