RASCOtec Injection Channel

Verified by manufacturer 22 days ago

Rascor UK Ltd

Injection channels for waterproofing all types of construction joints.

Jump to:
020 3904 5689 Website

Application

Injection channels are suitable for waterproofing all types of construction joint in general building and civil engineering works.

Description

The RASCOtec injection channel is a distinctive system solution in comparison to the injection hoses. The main difference lies in the wider, flat support on the first concreting section. This support increases the contact with the injection gel considerably.


Features and benefits:

  • Easy fixing.
  • 25 mm wide contact surface over joint.
  • No obstruction to steelfixing or formwork erection.
  • Allows multiple injection.
  • Remains flexible in cold conditions.
  • Weather-independent installation.

General information

Color

Black

Yellow

Material

High density polyethylene (HDPE)

Polyester

Shape

Rectangle

Length

2000 mm

Width

30 mm

Height

20 mm

40 mm

Warranty description

25 year

Uniclass

Pr_35_90_15_42 Injectable hose waterstopsPrimary

CAWS

E40/320 Hydrophilic waterstops

E40/310 Flexible waterstops

Specification data - Injectable hose waterstops

Certification

German National Test Certificate.

Guidance for specification option:

Waterproofing system for construction joints.

Injection material

-

Manufacturer guidance

A wide variety of grouting materials can be used in conjunction with the RASCOtec injection channels. Consult manufacturer and insert requirements.

Channel

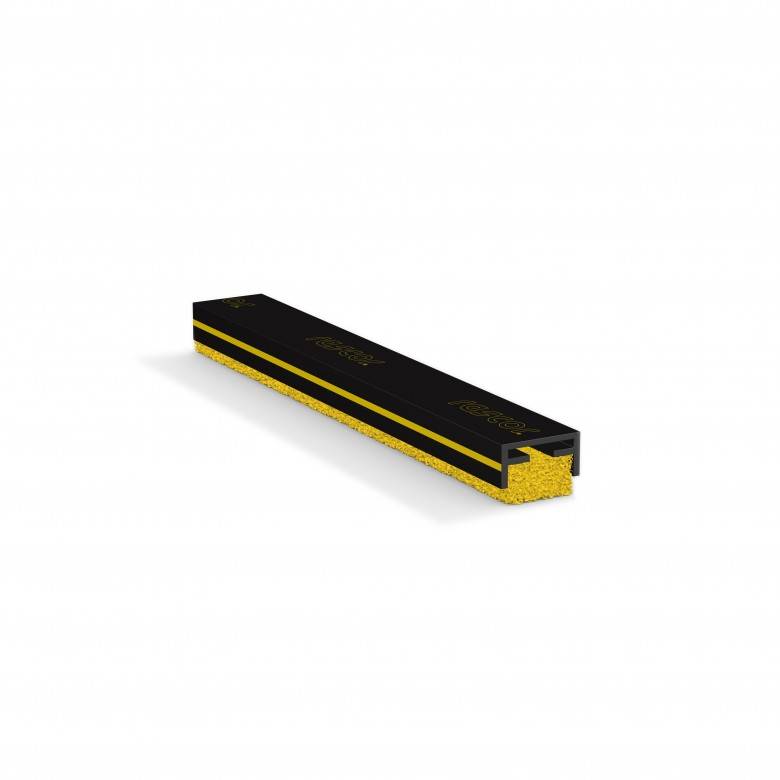

Black/ yellow polyethylene (HDPE) channel with polyester foam strip.

Dimensions

25 x 20 mm.

Guidance for specification option:

The standard injection channel with 20 mm foam insert.

25 x 40 mm.

Guidance for specification option:

Injection channels with a 40 mm high foam insert should be used in case of extreme irregularities in the base.

Manufacturer guidance

Width x height.

Integral accessories

RASCOtec IC Feeder Cap, RASCOtec IC Connector Cap, RASCOtec Target, RASCOtec IC Angel 90°, RASCOtec IC sealing end, RASCOfix Nail Plugs, Nozzle hose.

Sustainability data

Material

High density polyethylene (HDPE)

Polyester
