RAVATHERM XPS X 700 SL

Verified by manufacturer 2 months ago

50 mm

Ravago Building Solutions Variant:

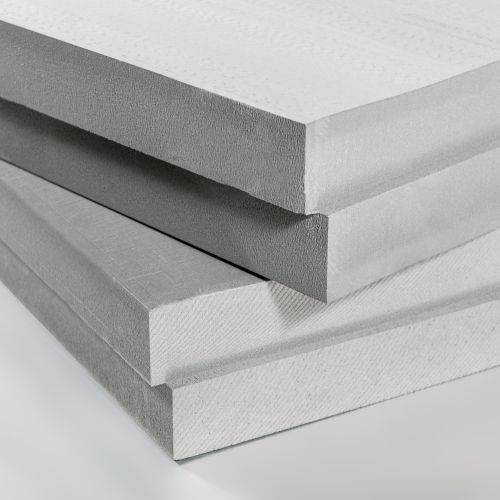

Extruded polystyrene (XPS) thermal insulation designed for very high loadbearing floors such as cold stores and aircraft hangars.

Jump to:
BOS
Website

Application

Suitable for load-bearing industrial floors, base slabs or high-load rooftop car parks.

Description

Ravatherm XPS X 700 SL closed-cell polystyrene foam thermal insulation, with its excellent thermal insulation capability, high compressive strength and resistance to moisture, can be safely used in locations where good thermal insulation capability is only one of many complex requirements.


Features and benefits:

  • Permanently high thermal insulation performance.
  • Water and frost resistance.
  • High compressive strength.
  • High flexible rigidity.
  • High vapor diffusion resistance.
  • Environmental friendly and a cost efficient solution.

General information

Color

Grey

Finish

Smooth

Guidance for specification option:

Smooth surface skin (extrusion skin)

Material

Polystyrene

Manufacturer guidance

Homogeneous, closed-cell material structure comprised of extruded polystyrene (XPS), a rigid form of insulation.

Shape

Rectangle

Length

1250 mm

Width

600 mm

Height

50 mm

75 mm

100 mm

Uniclass

Pr_25_71_63_29 Extruded polystyrene (XPS) boardsPrimary

CAWS

E20/200 Proprietary underslab insulation

E20/30 Underslab insulation

K11/115 Battened plywood floating floor

K11/125 Battened particleboard floating floor

K11/135 Battened oriented strand board floating floor

K11/145 Battened cement-bonded particleboard floating floor

K11/20 Battened particleboard floating floor

K11/215 Plywood floating floor

K11/225 Particleboard floating floor

K11/235 Oriented strand board floating floor

K11/245 Cement bonded particleboard floating floor

K11/25 Particleboard floating floor

K20/150 Battened timber board floating floor

K20/20 Battened timber board floating floor

K21/120 Battened wood flooring

K21/130 Battened wood floating floor

K21/30 Wood lining on battens

M10/290 Floating construction

M10/40 Floating construction

M13/260 Floating construction

M13/40 Floating construction

Specification data - Extruded polystyrene (XPS) boards

Standard

To BS EN 13164.

Third-party certification

CE 13164.

Fire performance

Euroclass E.

Guidance for specification option:

Products contain an ecologically safe flame-retardant additive.

Manufacturer guidance

To BS EN 13501-1.

Compressive strength (minimum) at 10% compression

700 kPa.

Guidance for specification option:

To EN 826. To plan the reinforcement steel requirements of floor slab used as a load-distribution structure over the thermal insulation layer, please consult a structural engineer.

Thermal conductivity (maximum)

0.031 W/m·K.

Guidance for specification option:

To EN 13164.

Thickness

50 mm.

Face size (length x width)

1250 x 600 mm.

Guidance for specification option:

The maximum installation depth of the thermal insulation is determined by the load: the horizontal pressure must not exceed the compressive strength of the boards, taking into account the value of the permanent load.

Facing

Smooth.

Guidance for specification option:

Smooth surface skin (extrusion skin). PE film separating and sliding layer between the thermal insulation and the concrete screed for installation on floor applications.

Edges

Ship lap.

Guidance for specification option:

A grooved edge allowing boards to overlap, minimizing gaps.

Compressive creep (design load) maximum 2% deflection after 50 years

250 kPa.

Guidance for specification option:

To EN 1606.

Temperature range:

-50°C to +75°C maximum.

Guidance for specification option:

Provides the permanent application temperature of Ravatherm XPS X products. At higher temperatures, the boards will start to soften and suffer permanent deformation.

Thermal resistance (R-value)

1.60.

Manufacturer guidance

(Rd m2 .K/W)

Sustainability data

Country of product manufacture

United Kingdom

Material

Polystyrene

Manufacturer guidance

Homogeneous, closed-cell material structure comprised of extruded polystyrene (XPS), a rigid form of insulation.

Embodied carbon

A1-A3 (production stage) as defined in BS EN 15804

2.77 kg CO₂ eq/kg

Self declared

Recyclability

100%

Recycled content

As defined in clause 7.8 of BS EN ISO 14021

-

Manufacturer guidance

Ravatherm XPS X uses carbon dioxide as a blowing agent, which gives it an ozone-depleting potential (ODP) of zero and a Global Warming Potential (GWP) of less than five
