Rectangular Washbasin with Apron

Verified by manufacturer over a year ago

(D20163N) 203.0000.057

KWC DVS Limited Variant:

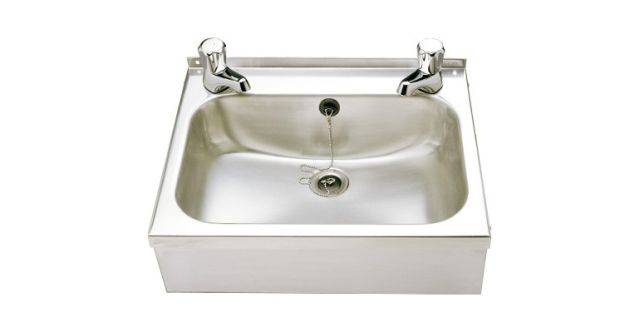

Model WB18 stainless steel washbasin.

Jump to:
+44 (0)1246 458900 Website

Description

Model WB18 stainless steel washbasin.


Features and benefits:

  • Washbasin top manufactured from 0.9 mm thick grade 1.4301 (304) stainless steel – satin polish finish.
  • The apron support is made from 0.9 mm (430) material – high polish finish.
  • Prepared for 32 mm waste outlet and overflow. Supplied with two tap holes in the rear ledge.
  • Wall mounting by using the fixing holes provided in both the rear upstand and the rear apron fixing brackets (screws and plugs are not supplied).

General information

Finish

Satin

High polish

Material

Stainless steel

Length

357 mm

Width

457 mm

Height

165 mm

Uniclass

Pr_40_20_96_96 Wall-hung washbasinsPrimary

CAWS

N13/30 Washbasins

N13/335 Washbasins

Product range

Washbasins

Specification data - Wall-hung washbasins

Form

Wall hung wash basin.

Materials

-

Body

Stainless steel.

Guidance for specification option:

  • Washbasin top: stainless steel grade 1.4301 (type 304).
  • Apron support: stainless steel grade 1.4301 (type 430).

Finish and colour

Satin polish.

Guidance for specification option:

Washbasin top.

Size

457 x 357 x 165 mm.

Water supply, overflow and waste holes

-

Water supply

Two tap holes.

Overflow

Rear overflow hole.

Waste

32 mm waste outlet.

Integral accessories

Apron support.

Waste kit.

Product Reference

(D20163N) 203.0000.057

Guidance for specification option:

Model WB18 washbasin with apron support and waste kit.

(D20163N-FL) 203.0581.026

Guidance for specification option:

Washbasin with lever taps.

(D20163N-FX) 203.0581.027

Guidance for specification option:

Washbasin with crosshead taps.

Steel thickness

1 mm.
