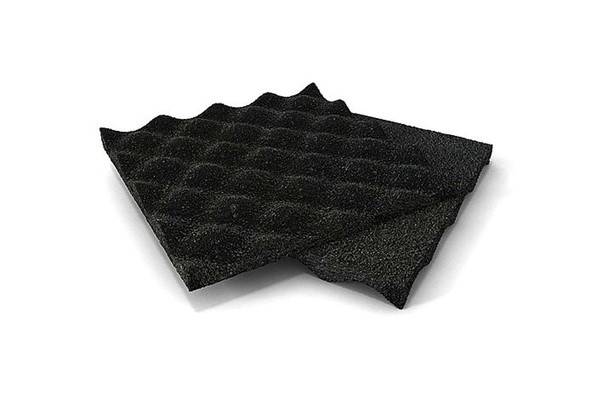

REGUPOL sonus curve 17
Verified by manufacturer 29 days ago
ISO 45001 Health and Safety Management
Certificate type
EPD
Certificate type
ISO 9001 Quality Management
Certificate type

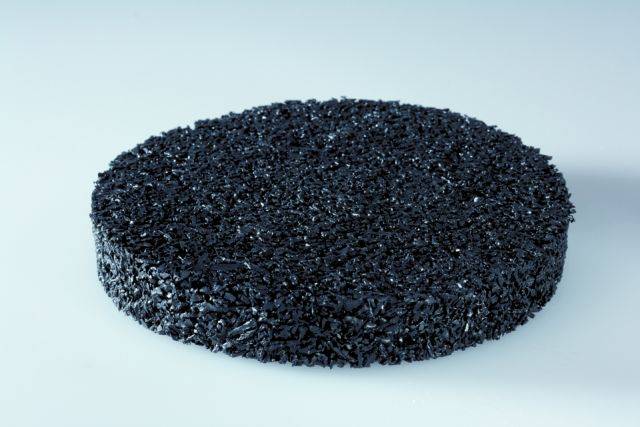

High load, resilient layer manufactured from recycled rubber fibres.
Application
Sonus Curve 17 delivers a high end isolation solution for prestigious developments and areas where heavy loads are apparent. These include:
- Luxury apartments and penthouses
- Hotels
- Cinemas/theatres
- Schools and libraries
- Hospitals
- Retail
- Gymnasiums
Description
High load bearing screed isolation solution, manufactured from recycled crumb, delivering effective isolation and impact sound insulation, even under heavy loads. Sonus Curve 17 is often the preferred choice for premium developments and those where superior acoustic performance is critical.
Sonus Curve 17 meets the requirements of Approved Document E (England & Wales), Technical Booklet G (Northern Ireland) and Section 5 of the Building Regulations (Scotland).
Features and benefits:
- Excellent impact and airborne performance.
- Minimal creep, even under high loads.
- Resistant to ageing and deformation.
- Quick and easy to install.
- Mildew and moisture proof.
- Product manufactured using recycled materials and 100% recyclable
General information
Color | Black |
Finish | Other |
Material | Rubber |
Shape | Rectangle |
Length | 10000 mm |
Width | 1250 mm |
Height | 17 mm |
Warranty description | One year Other |
Uniclass | |
CAWS | K21/10 Wood laminate flooring K21/111 Wood floating floor K21/115 Wood laminate flooring K21/145 Composite laminate flooring K21/146 Laminate flooring K21/20 Composite laminated flooring M10/295 Floating construction (thin sheet impact sound insulation) M10/40 Floating construction |
Product range |
Specification data - Resilient layer insulation
Material | Recycled rubber mat. |
Density | 575 kg/m³. |
Thickness | 17 mm. |
Sound insulation rating | Manufacturer guidanceRefer to the Technical Data Sheet for assemblies and test values. |
Indoor Air Emissions (to EN 16516) | Compliant with EU-LCI list and German AgBB scheme;“A+” as per décret n°2011-321. |
LoadBearingCapacity | 50 kN/m² (maximum). |
Temperature resistance | -20 to +60° C. |
Thermal resistance (R-value) | 0.167 (m2K)/W. |
ThermalConductivity | To DIN EN 12667, λ = 0.075 W/(mK). |
Sustainability data
Country of product manufacture | Germany |
Material | Rubber |
Recyclability | 100% recyclable |
Third party certifications
Third party certifications
ISO 45001 Health and Safety Management
ISO 45001:2018

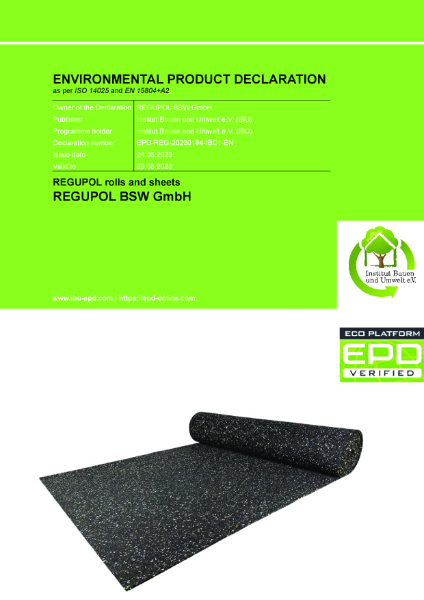

EPD
REGUPOL rolls and sheets - EPD
ISO 9001 Quality Management
SIG ISO 9001
Literature
REGUPOL sonus curve 17 - Technical Data Sheet
