REGUPOL sonus multi 4.5 - Resilient Underlayment

Verified by manufacturer 2 months ago

CMS Danskin Acoustics Third party certifications:
  • ISO 14001 Environmental Management Systems

    Certificate type

  • ISO 45001 Health and Safety Management

    Certificate type

  • EPD

    EPD

    Certificate type

  • ISO 9001 Quality Management

    Certificate type

Acoustic underlay.

Jump to:
+44 (0)1925 577711 Website

Application

  • Suitable for apartments, education, hotels, commercial, leisure, bespoke architectural projects and care homes.
  • Designed for use with a wide range of floor finishes, including carpet, carpet tiles, wooden and laminate based floor finishes.

Description

sonus multi 4.5 is a tough and resilient acoustic underlay that has been developed to attenuate impact sound beneath a range of floor finishes, delivering acoustic performance without ageing or collapsing. Sonus Multi 4.5 meets the requirements of Approved Document E (England & Wales), Technical Booklet G (Northern Ireland) and Example Construction floors under Section 5 (Scotland).


sonus multi 4.5 is also available as a fire-retardant version.


Features and benefits:

  • Offers long term performance without collapse or “bottoming” out under high point loads.
  • Resistant to ageing and deformation.
  • Quick and easy to install - simply bond to the subfloor beneath the final floor finish.
  • Product manufactured using recycled materials and 100% recyclable.

General information

Color

Black

Brown

Finish

Smooth

Material

Polyurethane (PUR)

Cork

Shape

Rectangle

Length

18000 mm

Width

1000 mm

Height

4.5 mm

Warranty description

One year

Other

Uniclass

Pr_25_57_06_71 Resilient layer insulationPrimary

CAWS

K21/10 Wood laminate flooring

K21/111 Wood floating floor

K21/115 Wood laminate flooring

K21/145 Composite laminate flooring

K21/146 Laminate flooring

K21/20 Composite laminated flooring

M50/10 Resilient floor tiling

M50/110 Resilient floor tiling

M50/130 Carpet tiling

M50/15 Carpet tiling

M50/150 Sheeting

M50/155 PVC sheet flooring in special wet areas

M50/170 Carpeting

M50/20 Sheeting

M50/25 Carpeting

Specification data - Resilient layer insulation

Material

PUR foam and cork granules.

Density

420 kg/m³.

Thickness

4.5 mm.

Fire performance

To DIN EN 13501-1, Class E.

Guidance for specification option:

As standard.

To DIN EN 13501-1, Class Bfl-s1.

Guidance for specification option:

Available on request.

Sound insulation rating

-

Manufacturer guidance

Refer to manufacturer's literature for floor assemblies and acoustic values.

Elongation at break

To DIN EN ISO 1798, ≥20%.

Indoor Air Emissions (to EN 16516)

Compliant with EU-LCI list and German AgBB scheme; “A+” as per décret n°2011-321.

Temperature resistance

-20 to +60°C.

TensileStrength

≥1.0 N/mm².

ThermalConductivity

To BS 4745:2005, λ = 0.089 W/(mK).

Sustainability data

Contains Red List materials

No

Country of material origin

Germany

Country of product manufacture

Germany

Material

Polyurethane (PUR)

Cork

Recyclability

100% recyclable

Recycled content

As defined in clause 7.8 of BS EN ISO 14021

85 %

Third party certifications

Third party certifications

ISO 14001 Environmental Management Systems

ISO 14001 Environmental Management Systems

ISO14001

ISO 45001 Health and Safety Management

ISO 45001 Health and Safety Management

ISO 45001:2018

EPD

EPD

REGUPOL rolls and sheets - EPD

ISO 9001 Quality Management

ISO 9001 Quality Management

SIG ISO 9001

Literature

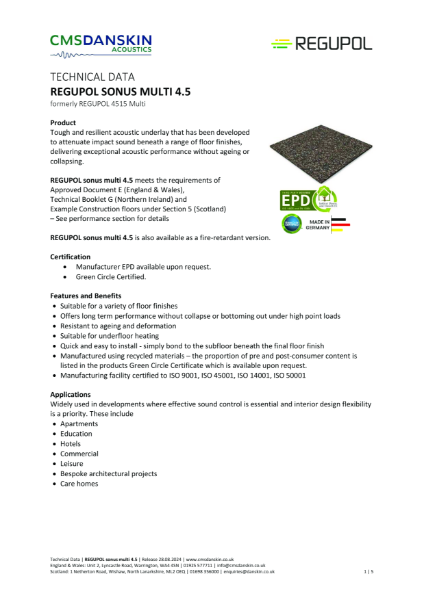

REGUPOL SONUS MULTI 4.5 - Technical Data Sheet

REGUPOL SONUS MULTI 4.5 - Technical Data Sheet
