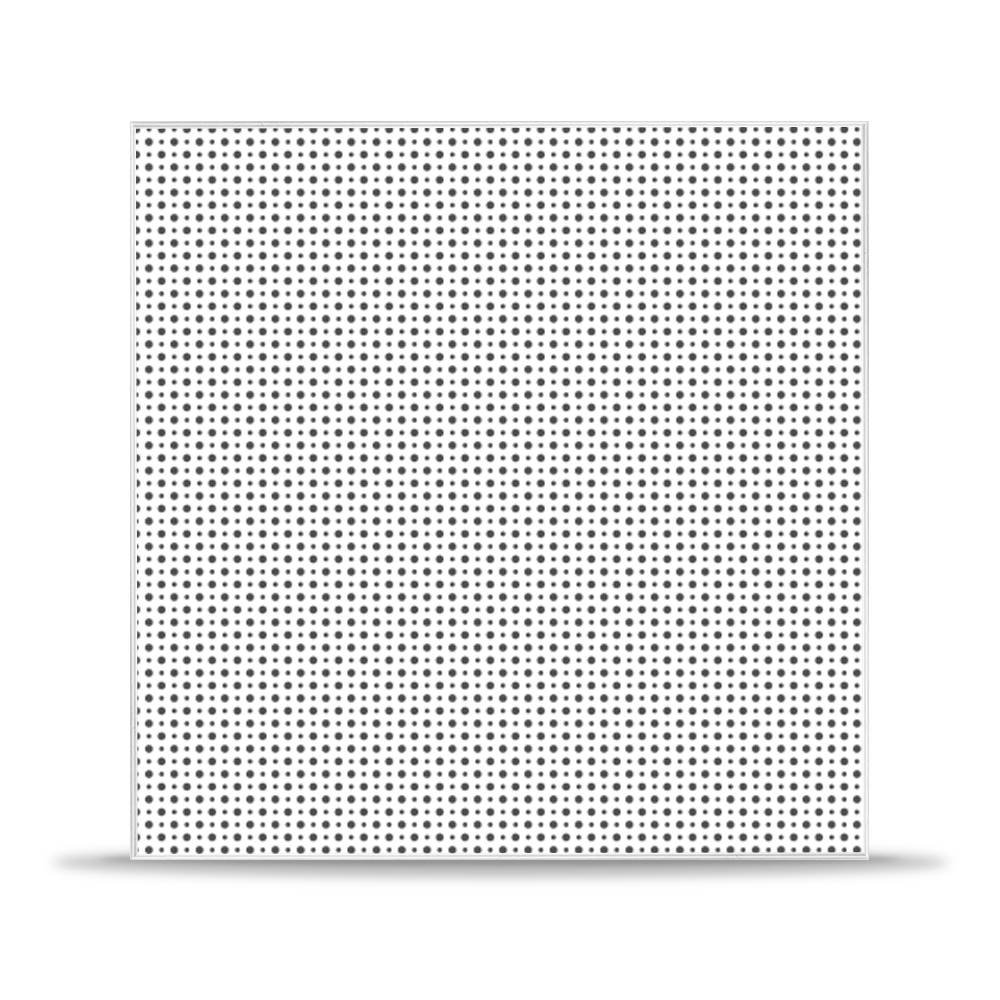

Rigitone / Quattro Acoustic Ceiling Access Panel

Verified by manufacturer 3 months ago

Access Building Products Ltd

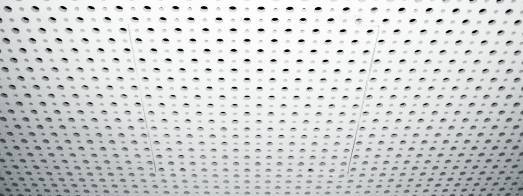

Ceiling access panels to house either Rigitone or Quattro acoustic board. Access panel to allow access to building services without disrupting the aesthetics of a Rigitone or Quattro acoustic ceiling

Jump to:
+44 (0)1423 874753 Website

Application

Ceiling mounted access panel suitable for use with either the Rigitone or Quattro acoustic board.

Description

Range of ceiling access panels to suit either the Rigitone or Quattro acoustic board.


Features and benefits:

  • Exposed edge frame.
  • Metal door tray to accept the board inlay.
  • Touch catch locks or budget lock available.
  • Depth 35 mm.

General information

Material

Metal

Shape

Square

Rectangle

Length

1200 mm

Guidance for specification option:

Maximum.

Bespoke

Guidance for specification option:

Made to order.

Width

600 mm

Guidance for specification option:

Maximum.

Bespoke

Guidance for specification option:

Made to order.

Height

35 mm

Warranty description

Two year

Uniclass

Pr_30_59_36_01 Access panelsPrimary

CAWS

K40/280 Access units

K10/50 Suspended ceiling system on metal framing

K10/430 Access panels

Specification data - Access panels

Position

Ceiling-mounted.

Size

Guidance for specification option:

Made to order, maximum size 1200 x 600 mm. Consult manufacturer and insert requirements.

Frame

Exposed picture frame type.

Panel

-

Material

Metal.

Latch or lock type

Touch catch.

Budget lock.

Integral accessories

Guidance for specification option:

Consult manufacturer and insert requirements or omit.

Depth

35 mm.

Sustainability data

Contains Red List materials

No

Country of material origin

United Kingdom

Country of product manufacture

United Kingdom

Recyclability

100%

Recycled content

As defined in clause 7.8 of BS EN ISO 14021

40 %

BIM objects

Platform Compatible Version
Revit
-

1

Literature

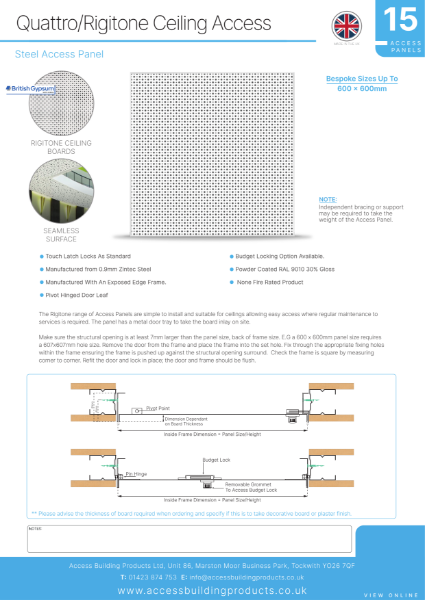

QUATTRO RIGITONE Brochure

QUATTRO RIGITONE Brochure
