Riser Door 2 hour Fire Rated Both Sides of the door [Duplex]

Verified by manufacturer 3 months ago

Access Building Products Ltd

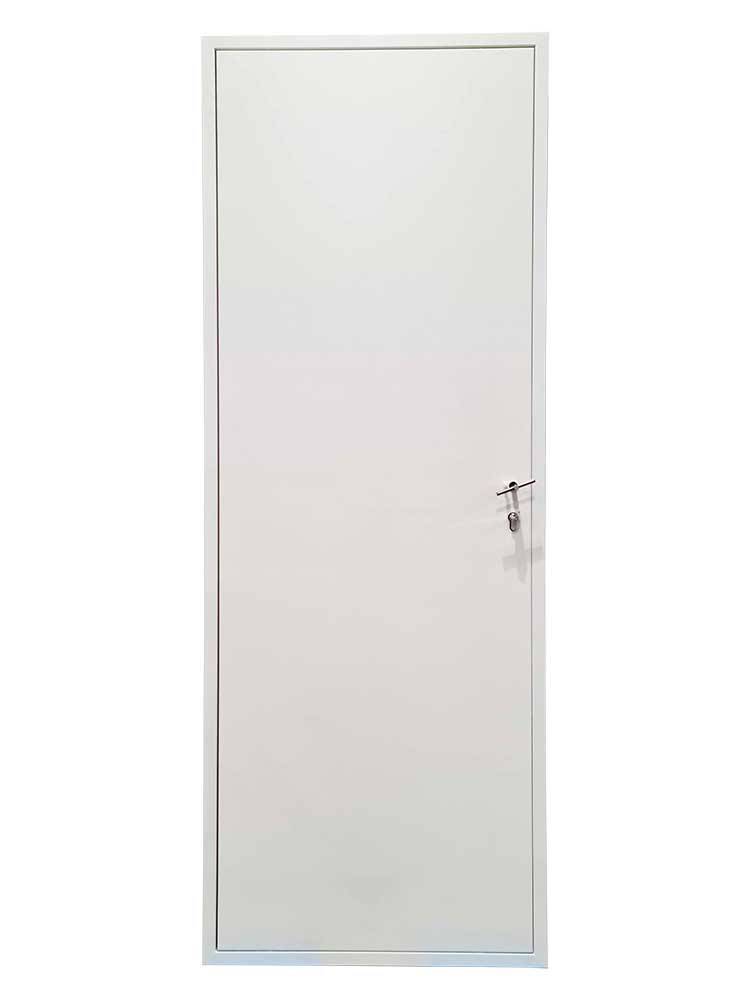

Riser Door access panel. Fire rated 2 hours tested from both sides of the door. Riser Doors are made to order, sizes up to 2000 x 750mm. Riser doors have been fire tested for wall use.

Jump to:
+44 (0)1423 874753 Website

Application

Suitable for walls where regular maintenance access to services is required.

Description

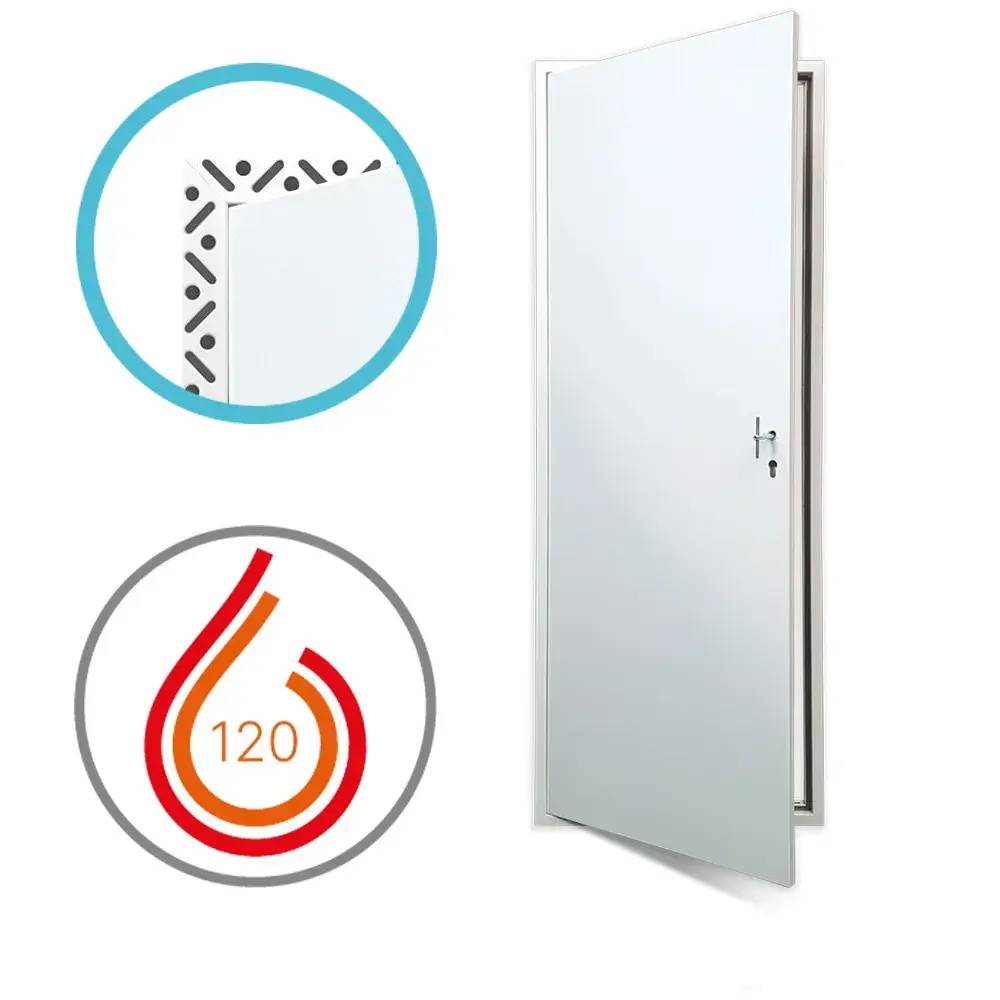

Riser Door 120-minute Duplex is a high-performance access solution that offers insulation, smoke resistance and acoustic properties. The door is constructed from steel, plasterboard and mineral wool and features a full-height piano hinge, allowing for easy removal of the door using a standard hex socket. This riser door is tested and certified to ensure bi-directional fire resistance for two hours. The 78 mm depth allows deeper fixing points, ensuring stability when installed with twin skin plasterboard walls.


Locking/ security:

For enhanced security, the riser door is equipped with a three-point locking system, complemented by a metal "T" budget lock key with a white flip-tab plastic bung. Further security is available with the addition of either a tamper-proof insert or Euro cylinder key lock configurations (budget lock remains installed).


Size information:

When specifying the size of your wall opening, subtract 10 mm. The access panel is custom-made to fit into the opening, with the outer frame extending an additional 25 mm on each side.


Frame options:

Picture frame or simulated beaded frame.


Other key details:

Smoke tested, Insulated (U-Value 0.78 W/m²K). Tested to provide 36dB acoustic reduction.

General information

Color

White

Black

Grey

Cream

Orange

Show more

Finish

Powder-coated

Material

Steel

Plasterboard

Mineral wool

Shape

Rectangle

Square

Width

750 mm

Manufacturer guidance

Maximum.

Height

2000 mm

Manufacturer guidance

Maximum.

Warranty description

Two year

Uniclass

Pr_30_59_36_01 Access panelsPrimary

CAWS

L20/630 Hatches

K10/430 Access panels

Specification data - Access panels

Fire performance

-

Fire resistance

120 minutes to BS 476-22.

Position

Wall-mounted.

Size

-

Manufacturer guidance

Up to 2000 x 750 mm. Insert requirements or refer to a schedule. When specifying the size of your wall opening, subtract 10 mm. The panel is custom-made to fit into the opening, with the outer frame extending an additional 25 mm on each side.

Frame

Exposed picture frame type.

Guidance for specification option:

25 mm.

Bead for taping and jointing.

Panel

-

Material

Zintec steel.

Integral finish

Powder-coated, white (RAL 9010).

Latch or lock type

Budget lock.

Tamper proof lock.

Europrofile lock.

Operation

Outward opening.

Smoke-resistance

To BS EN 1634-3:2004, 0.4 m3/m/h.

Sound insulation

To BS EN ISO 10140-2, 36 dB.

U-value

0.78 W/m²K.

Sustainability data

Contains Red List materials

No

Country of material origin

United Kingdom

Country of product manufacture

United Kingdom

Recyclability

Steel / Plasterboard 100%

Recycled content

As defined in clause 7.8 of BS EN ISO 14021

40 %

BIM objects

Platform Compatible Version
Revit
-

1

Literature

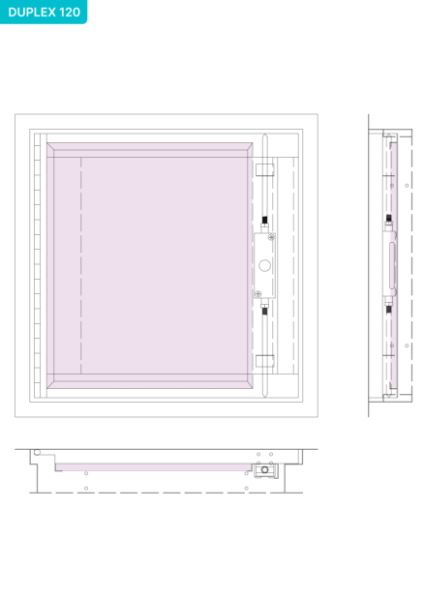

Duplex 120 Technical Drawing

Duplex 120 Technical Drawing

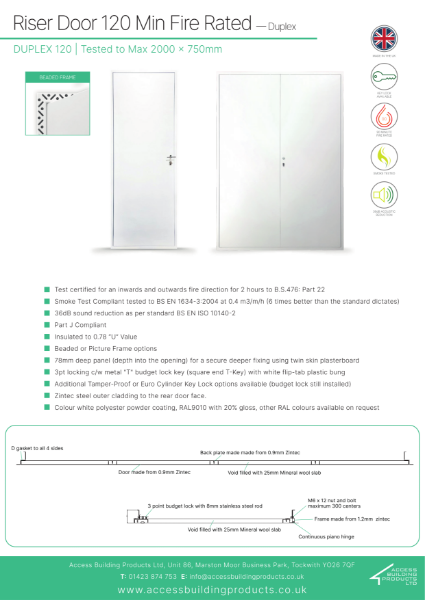

Duplex 120 Brochure

Duplex 120 Brochure
