Rockfon Humitec® Baffle

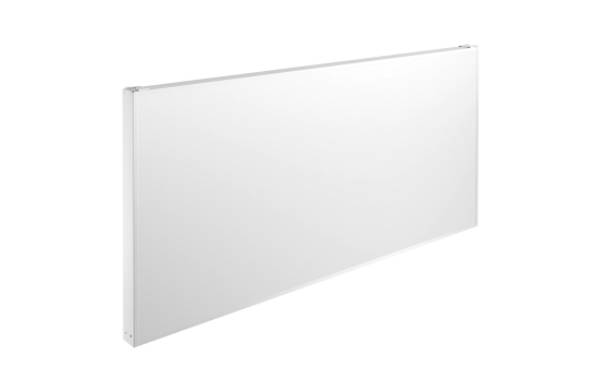

Rockfon System Humitec Baffle is an acoustic baffle system consisting of a 50 mm stone wool baffle and a variety of installation options. Its edges are encased in a robust, powder coated galvanized steel frame, which provides multiple installation options. Both sides of the baffle are covered with an aesthetically pleasing mineral fleece with a spray painted top coat.

These baffles are ideal for rooms and buildings where the use of a traditional suspended ceiling is technically not appropriate (e.g. where the principles of thermal mass are used in building design) and where the environment demands a ceiling system that can withstand humidity and regular cleaning. It is a flexible solution which can contribute to appropriate room acoustics in new buildings and make room acoustic improvements in existing buildings.

Features and benefits:

• Available in two suspension design possibilities: Rockfon Baffle ECR Direct Fixing & Suspended Bracket Solution and Rockfon Baffle ECR T24 Solution.
• Quick and easy to install.
• Class B safety against failure (EN13964:2014).
• Rockfon acoustic solutions are Cradle to Cradle Certified® Bronze.

Baffle row distance:

• 1200 mm: 0.69 pcs/m².
• 600 mm: 1.39 pcs/m².
• 300 mm: 2.78 pcs/m².
