Samson A24 System T24 A - 1200 x 1200 x 40 mm
Cradle to Cradle Certified
Certificate type
Tiles with a high impact resistant surface.

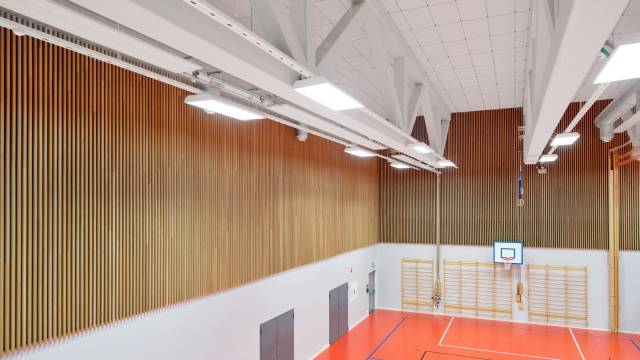

Suitable for use in schools, sports halls and other areas with a high activity level.
Tiles with a high impact resistant surface and exceptional sound absorption level, thereby contributing to a good acoustic environment in what can be noisy application areas.
Features and benefits:
Color | White |
Material | Stone wool |
Shape | Rectangle Square |
Length | 600 mm 1166 mm 1200 mm 1800 mm 2400 mm |
Width | 600 mm 1166 mm 1200 mm |
Height | 40 mm |
Warranty description | 15 year |
Uniclass | |
CAWS | K40/115 Unit/ modular suspended ceiling system K40/10 Unit/ modular suspended ceilings K40/265 Infill units |
Product range |
Third-party certification | Cradle to Cradle Certified® Bronze. |
Form | Infill unit. |
Rigidity | Rigid. |
Application | Ceiling mounting. |
Material | Stone wool. |
Acoustic performance | |
Purpose | Absorber. |
Sound absorption | Class A (to ISO 11654: 1.00 αw). |
Fire performance | |
Reaction to fire | Class A1 (to BS EN 13501-1). |
Dimensions | |
Size (length x width) | 1200 x 1200 mm. |
Thickness (overall) | 40 mm. |
Profile | Geometric profile. |
Edges | A24. |
Finish | Visible side: durable woven surface with painted edges; rear side: back fleece. |
Colour | White. |
Acoustic fireboxes | Not required. 700 x 700 x 200 mm. 1300 x 700 x 200 mm. |
ThermalConductivity | 37 W/mK (K-Value, to EN 12667). Guidance for specification option: Minimum thickness 30 mm. |
Impact resistance | Class A1 (to EN 13964 Annex D). Guidance for specification option: Tested for mechanical impact resistance while directly mounted in System OlympiaPlus A. |
Fire performance (BS476: Part 21) | 60 minutes. Guidance for specification option: Also to part 23. |
Fire performance (to BS 476-22) | 30 minutes. |
Light reflectance | 72%. |
Contains Red List materials | No |
Country of product manufacture | Poland |
Embodied carbonA1-A3 (production stage) as defined in BS EN 15804 | 3.47 kg CO₂ eq/kg Self declared |
Recyclability | 100% |
Recycled contentAs defined in clause 7.8 of BS EN ISO 14021 | 36 % |
