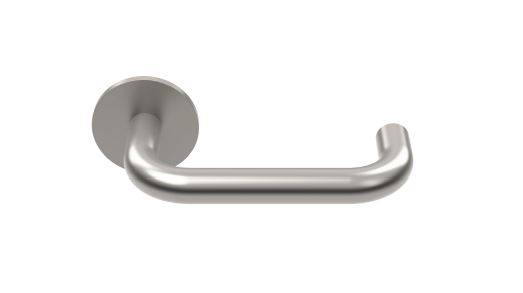

RTD Lever Handle (HUKP-0101-01) - Door handle

Verified by manufacturer 20 hours ago

Hafele UK Ltd

Stainless steel door handle.

Jump to:
+44 (0)800 171 2907 Website

Application

Suitable for high frequency of use and fire resisting doors.

Description

Stainless steel door handle.


Features and benefits:

  • Return to door design lever handle in solid bar stainless steel.
  • Ball bearing concealed fixed rose with four point back to back fixing.
  • Unsprung, for use with heavy duty followers.
  • 52 mm diameter and 4 mm thick rose, 38 mm centres for bolt through fixings.
  • To suit door thickness from 35–54 mm.
  • EN 1634-1:2000 suitable for use on fire resisting doors.

General information

Color

Black

Bronze

Gold

Silver

Manufacturer guidance

Any RAL colour available to special order.

Finish

Matt

Guidance for specification option:

Black.

Polished

Guidance for specification option:

Brass or stainless steel.

Satin

Guidance for specification option:

Brass or stainless steel.

Manufacturer guidance

RAL colours also available.

Material

Stainless steel

Steel

Length

65 mm

Width

135 mm

Height

16 mm

Guidance for specification option:

Diameter.

Warranty description

25 year

Uniclass

Pr_30_36_59_25 Door lever handle setsPrimary

CAWS

P21/610 Lever handles

P21/38 Lever handles

Specification data - Door lever handle sets

Standard

To BS EN1906: 2012.

Classification grades (minimum)

-

Category of use

4.

Durability

7.

Fire resistance

1.

Guidance for specification option:

Up to 60 minute fire rating.

Safety

1.

Corrosion resistance

4.

Security

0.

Type of operation

U.

Style

Round pattern with return to door.

Size

16 mm diameter.

Material and finish

Stainless steel, grade 1.4404 (316L).

Colour

Satin stainless steel.

Polished stainless steel.

RAL colour.

Guidance for specification option:

Special order.

Matt black.

Light bronze.

Guidance for specification option:

Special order.

Dark bronze.

Guidance for specification option:

Special order.

Hafele black.

Polished brass.

Satin brass.

Mounting

Ball bearing concealed fixed rose with four point back to back fixing.
