Rutland ITS.11205 - Concealed Arm Door Closer - Concealed Cam Action door closer

Verified by manufacturer 1 month ago

Rutland Third party certifications:
  • IFCC

    IFCC

    Certificate type

Power-adjustable concealed cam action door closer, EN 2–5.

Jump to:
+44 (0)1246 261491 Website

Application

Concealed overhead door closer. Assists BS 8300 for Doc M contracts.

Description

Power-adjustable concealed cam action door closer.


Features and benefits:

  • Fully concealed when door is closed.
  • Variable power size: EN 2–5.
  • Cam action assists BS 8300 for Doc M contracts.
  • Adjustable closing speed/ latch speed.
  • Maximum door weight/width: 110 kg/ 1250 mm.
  • Minimum door width: 595 mm; minimum thickness: 54 mm.
  • Range of finishes - five finishes available for next day delivery.
  • CE marked.
  • Fire tested to EN 1634-1.
  • Opening angle: 120°.
  • Universal fitting.
  • Easy to install.
  • 35-year guarantee.

General information

Color

Silver

Black

Other

Finish

Satin

Polished

PVD

Electro polished

Material

Aluminium

Shape

Rectangle

Length

255 mm

Width

40 mm

Height

60 mm

Warranty description

35 year

Uniclass

Pr_30_36_59_15 Controlled door closersPrimary

CAWS

P21/12 Controlled door closers

P21/410 Controlled door closers

Specification data - Controlled door closers

Standard

To BS EN 1154.

Classification grades (minimum)

-

Category of use

4.

Durability

8.

Door closer power size

2-5.

Suitability for use on fire and smoke doors

1.

Safety

1.

Corrosion resistance

3.

Form

Overhead, concealed.

Closer functions

Controlled closing.

Back check.

Guidance for specification option:

Optional back check.

Cushion stop - SA.CS.

Materials and finishes

-

Bodies

Manufacturer's standard (silver).

Arms

Concealed door closer to slide arm connector bar.

Colour

Silver.

Guidance for specification option:

ITS.11205.2.5.SE.

Satin Nickel.

Guidance for specification option:

ITS.11205.2.5.SNP.

Polished Nickel.

Guidance for specification option:

ITS.11205.2.5.PNP.

Black.

Guidance for specification option:

ITS.11205.2.5.BK.

Polished Brass.

Guidance for specification option:

ITS.11205.2.5.PVD.

Angle

120º.

Maximum weight

110 kg.

Manufacturer guidance

Maximum door weight.

Door width

1250 mm.

Manufacturer guidance

Maximum door width.

Arm

Concealed door closer-to-slide arm - Silver.

Guidance for specification option:

Complete with single action connector bar - CB.5.

SA.2.5.SE.

Concealed door closer-to-slide arm - Satin Nickel.

Guidance for specification option:

Complete with single action connector bar - CB.5.

SA.2.5.SNP.

Concealed door closer-to-slide arm - Polished Nickel.

Guidance for specification option:

Complete with single action connector bar - CB.5.

SA.2.5.PNP

Concealed door closer-to-slide arm - Polished Brass.

Guidance for specification option:

Complete with single action connector bar - CB.5.

SA.2.5.PVD.

Concealed door closer-to-slide arm - Black.

Guidance for specification option:

Complete with single action connector bar - CB.5.

SA.2.5.BK.

Mounting

Concealed mounting frame - Silver.

Guidance for specification option:

For hollow metal or aluminium door frames.

SA.2.MF.

Block ends

Slide arm block.

Guidance for specification option:

SA.1.BLOCK.

Accessories

Intumescent Pack.

Guidance for specification option:

IP.115.

Anti-Ligature - Black.

Guidance for specification option:

FIX.AL.

Sustainability data

Contains Red List materials

No

Third party certifications

IFCC

IFCC

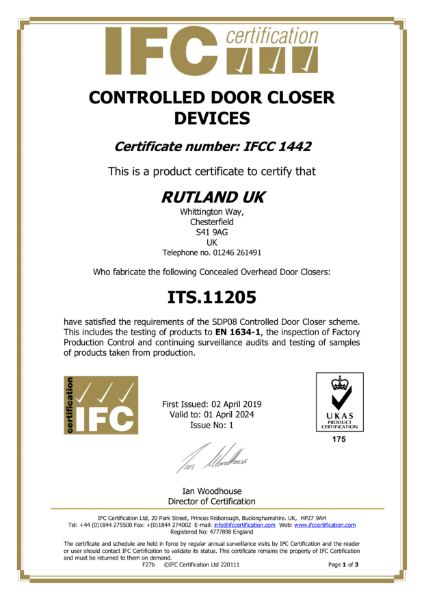

ITS.11205 - BS EN 1634-1 Fire Test - IFC Certificate

Literature

ITS.11205 - Datasheet

ITS.11205 - Datasheet

ITS.11205 Dimensional Line Drawing

ITS.11205 Dimensional Line Drawing

ITS.11205 Fitting Instructions

ITS.11205 Fitting Instructions

Cushion Stop Installation Instructions - Slide Arm

Cushion Stop Installation Instructions - Slide Arm
