Rutland TS.11205 - Slide Arm Cam Action Door Closer - Cam Action - Slide Arm
Verified by manufacturer 1 month ago
Standard Unit - TS.11205
Standard Unit - TS.11205
Certificate of Approval
Certificate type
IFCC
Certificate type
Certificate of constancy of performance
Certificate type
Power-adjustable cam action door closer, EN 2–5.
Application
Overhead door closer that can be adjusted to suit almost all types of doors. Assists BS 8300 for Doc M contracts.
Corrosion grade 3: recommended for internal use.
Description
Power-adjustable cam action door closer.
Features and benefits:
- Variable power size: EN 2–5.
- Available with optional back check and adjustable delayed action.
- Assists BS 8300 for Doc M contracts, helping to assist doorsets with ease of opening.
- Adjustable closing speed/ latch speed.
- Maximum door weight/width: 110 kg/ 1250 mm.
- Range of finishes - 4 finishes available for next day delivery.
- CE and UKCA marked; UL listed.
- Fire tested to EN 1634-1.
- Opening angle: 120°.
- Universal fitting.
- Easy to install.
- 35-year guarantee.
General information
Color | Silver Other |
Finish | Polished Electro polished Satin Other Guidance for specification option: Anti-corrosion (marine environments). PVD |
Material | Aluminium |
Shape | Rectangle |
Length | 257 mm |
Width | 43 mm |
Height | 68 mm |
Warranty description | 35 year |
Uniclass | |
CAWS | P21/12 Controlled door closers P21/410 Controlled door closers |
Specification data - Controlled door closers
Standard | To BS EN 1154. |
Classification grades (minimum) | |
Category of use | 3. |
Durability | 8. |
Door closer power size | 2–5.Guidance for specification option: Variable power size (by spring). |
Suitability for use on fire and smoke doors | 1. |
Safety | 1. |
Corrosion resistance | 3. |
Form | Overhead, face fixed. |
Closer functions | Controlled closing.Guidance for specification option: Standard. |
Materials and finishes | |
Bodies | Manufacturer's standard (silver).Guidance for specification option: Cam action with square cover. |
Arms | Door closer to slide arm connector bar.Guidance for specification option: Colour as below (specify otherwise if required). |
Casings | Square cover.Semi-radius cover. |

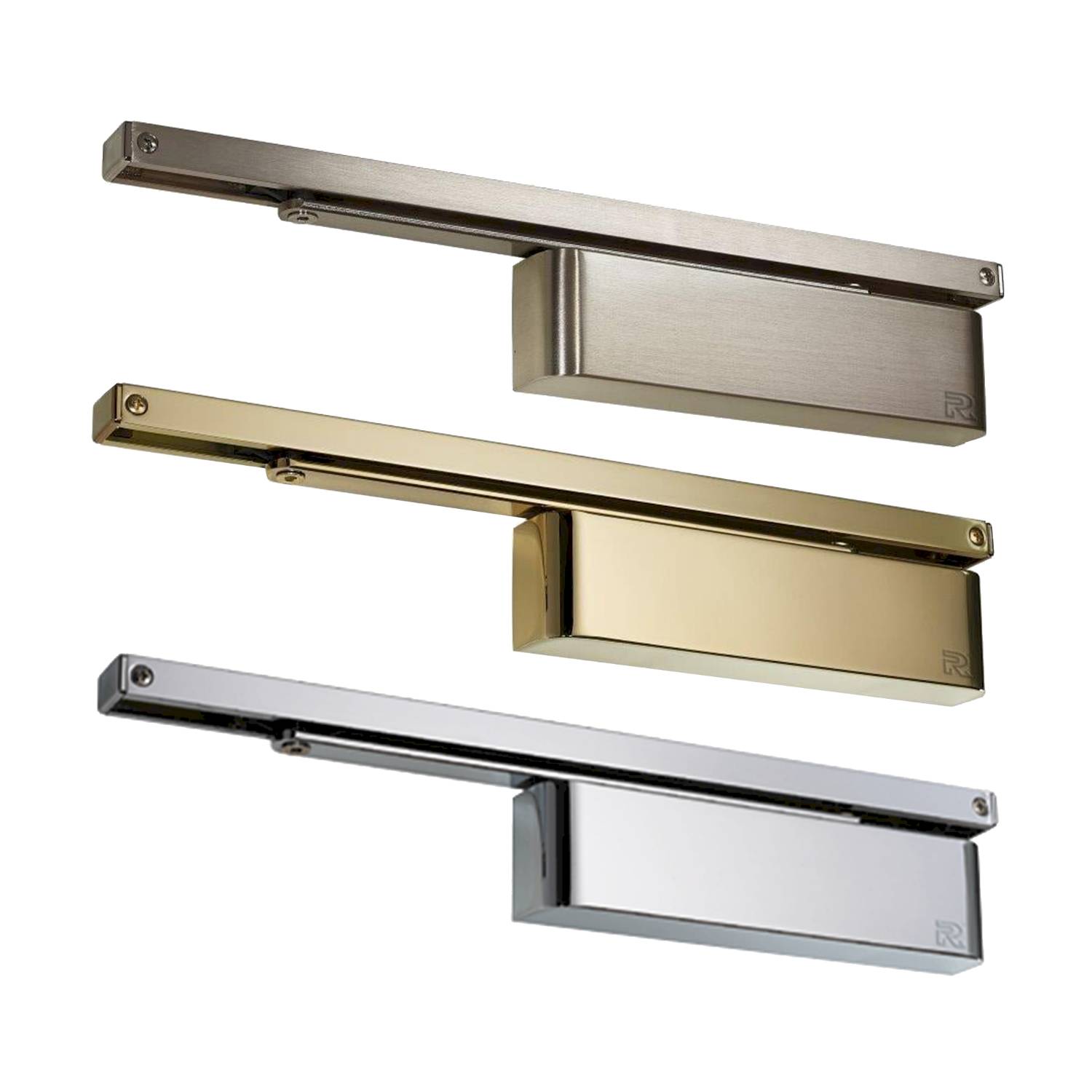

Colour | Silver.Satin Nickel.Polished Nickel.Polished Brass. |
Accessories | Mechanical hold-open slide rail. Guidance for specification option: Not to be used on fire doors; not covered by CE. 461 mm long, colour to match other components unless specified otherwise. Slide rail drop plate, silver. Slide rail drop plate, white. Hold open device, silver. Guidance for specification option: Not for use on fire doors. Cushion stop, white. Guidance for specification option: Acts as back check; consult manufacturer for details. |
Sustainability data
Contains Red List materials | No |
Recyclability | Yes |
BIM objects
| Platform | Compatible | Version |
|---|---|---|
 Revit | - | 1 |
Third party certifications
Certificate of Approval

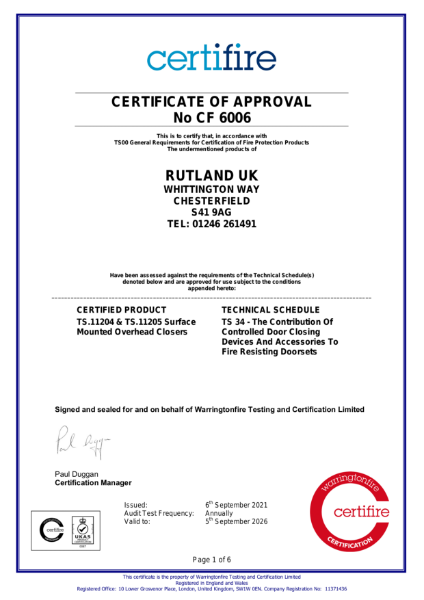

TS.11205 - BS EN 1634-1 Fire Test - Certifire Certificate
IFCC

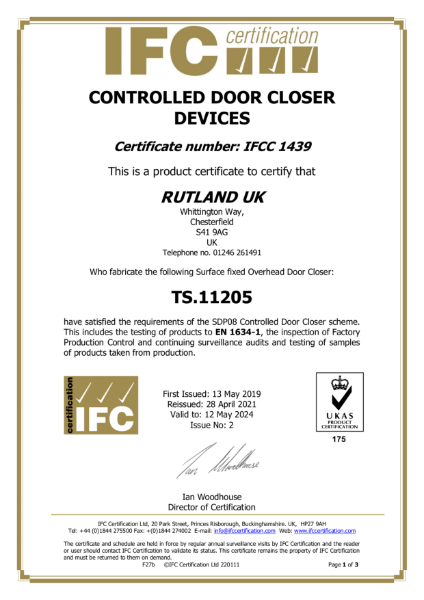

TS.11205 - BS EN 1634-1 Fire Test- IFC Certificate
Certificate of constancy of performance

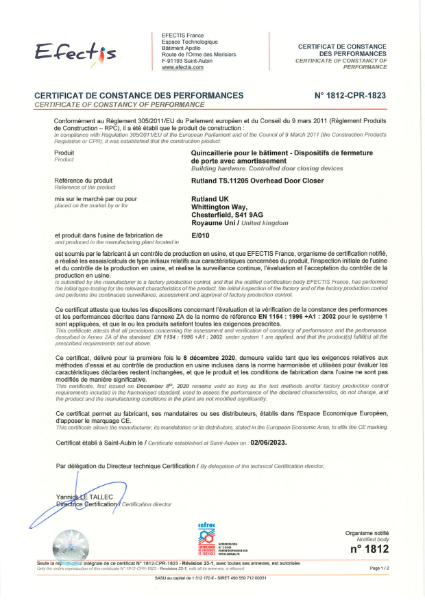

TS.11205 - BS EN 1154 - CE - Certificate of Constancy of Performance - Efectis
Certificate of constancy of performance

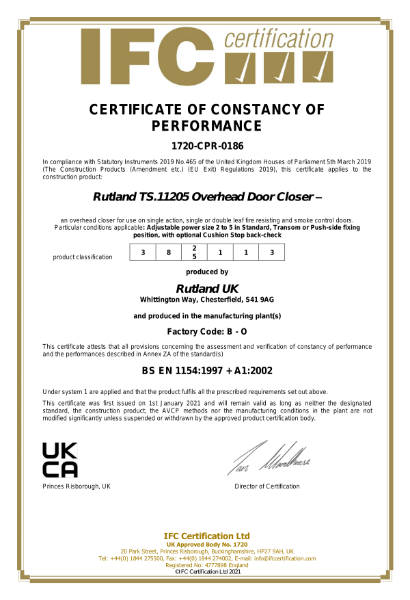

TS.11205 - BS EN 1154 - UKCA - Certificate of Constancy of Performance - IFC
Literature
Operations & Maintenance Manual - Slide Arm Door Closers
TS.11205 Dimensional Line Drawings

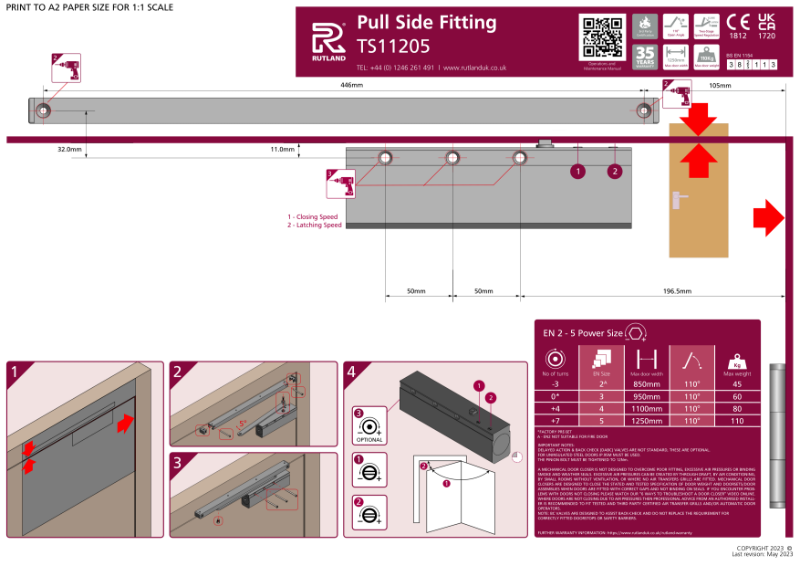

TS.11205 Fitting Instructions – Pull side (standard arm)

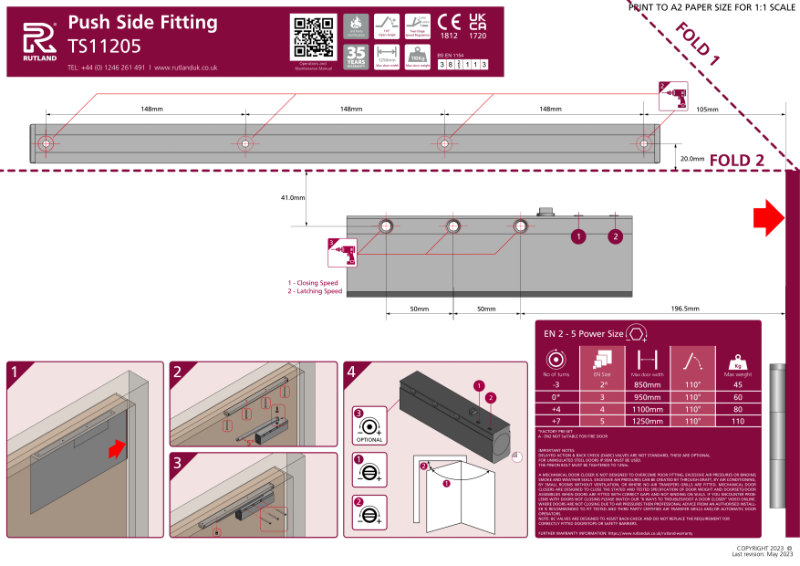

TS.11205 Fitting Instructions – Push side (parallel arm)
Cushion Stop Installation Instructions - Slide Arm
Hold-open Installation Instructions - Slide Arm
