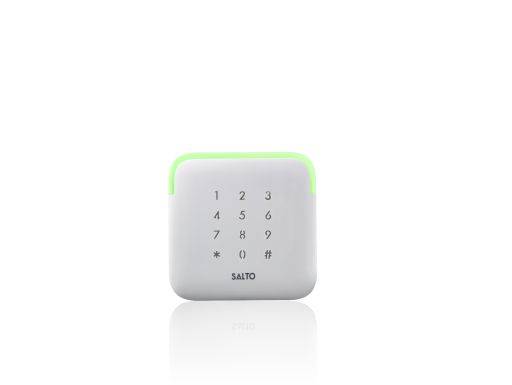

SALTO XS4 2.0 Wall Reader with Keypad
Verified by manufacturer over a year ago
Hard wired wall-mounted access control card reader with keypad.
Application
Designed for heavy-duty outdoor use. Suitable for a wide range of access control requirements. Suitable for doors where escutcheons/cylinders cannot be fitted, e.g. automatic doors, barriers, elevators, shutters or speed gates where control must be boosted by online real-time access control.
Description
Hard wired wall reader used as an update terminal in a SALTO Virtual Network (SVN) to write updated access rights information onto the carrier. Allows for additional use of a Personal Identification Number (PIN) keypad option, increasing security by using a double authentication and enhanced opening modes. The wall readers read encrypted data contained on the carrier and communicate it to the door controller. They also allow for updating of the carrier via SALTO SVN technology, making it possible to cancel lost or stolen cards remotely.
Features and benefits:
- Available in two versions: European and ANSI.
- Available in two colours.
- Completely sealed.
- IP 66 rated.
General information
Color | Black White |
Finish | Acrylic |
Material | Plastic |
Shape | Rectangle |
Length | 83.5 mm |
Width | 95.5 mm |
Height | 22 mm |
Warranty description | One year |
Uniclass |
Specification data - Access control units
Enclosure | |
Colour | Black.White. |
Product Reference | SALTO XS4 2.0 Wall Reader with Keypad |
Sustainability data
Contains Red List materials | No |
Country of material origin | Spain |
Country of product manufacture | Spain |
Recyclability | 100 |
Recycled contentAs defined in clause 7.8 of BS EN ISO 14021 | 40 % |
BIM objects
NBS BIM Object Standard
This BIM object has been authored to meet the requirements of the NBS BIM Object Standard.
Find out more about the NBS BIM Object Standard.
| Platform | Compatible | Version |
|---|---|---|
 IFC | IFC2X3 | 2 |
 Revit | Revit 2016 | 3 |
