SanCeram Clinical Healthcare Lever Tap
Verified by manufacturer 5 months ago

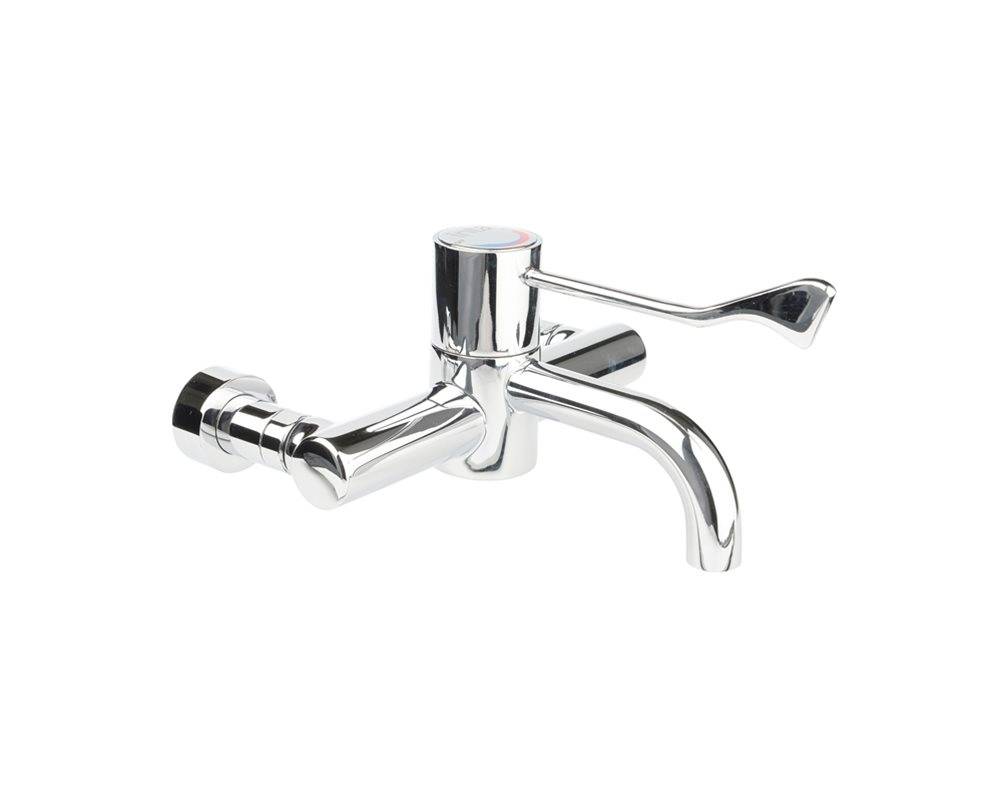

Thermostatic wall mounted clinical healthcare lever tap.
Application
Suitable for wall-mounting in healthcare applications.
Description
SanCeram lever operated sequential thermostatic wall-mounted clinical mixer tap with or without a detachable spout.
Features and benefits:
- Lever operated.
- Full safe touch body.
- Integral isolation valves.
- Smooth internal surfaces.
- Long paddle lever for ease of operation.
- Isolation, check valves and filters accessible institute.
- Sterilisation function.
- SCBW111 option has a fixed spout.

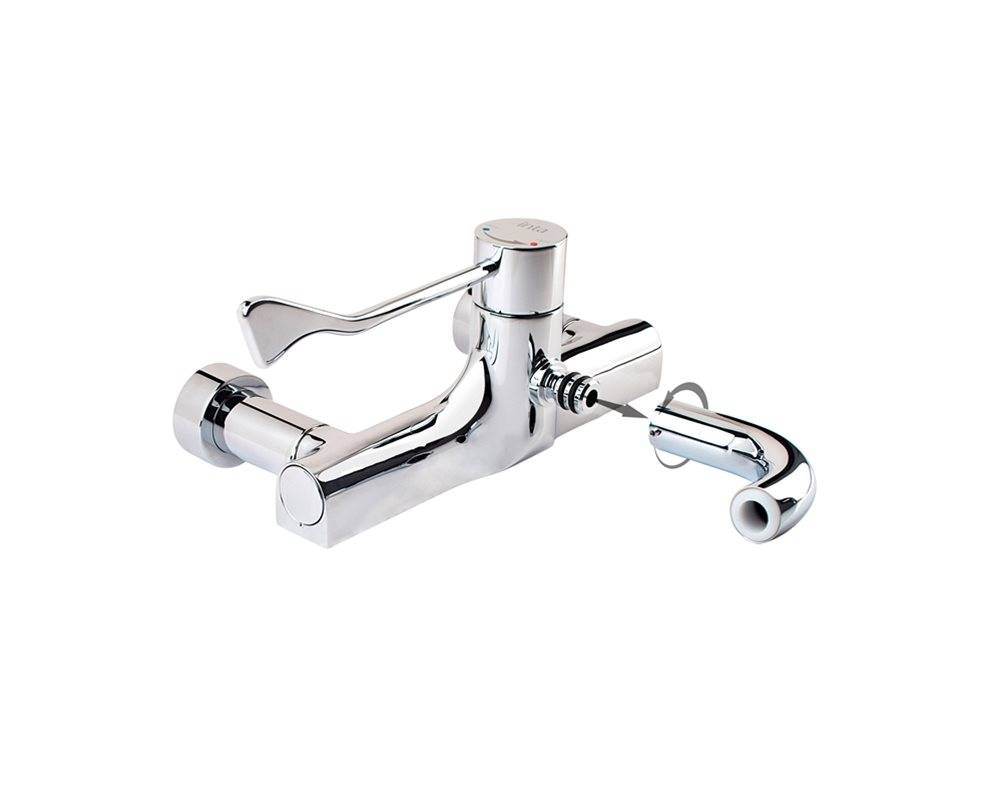

- SCBW122 option has a detachable spout for autoclaving.
- Optional purge feature.
- HTM and HBN compliant.
- Water Regulations Advisory Scheme (WRAS)-approved and TMV3 approved.
General information
Color | Silver |
Finish | Chrome |
Material | Brass |
Shape | Other |
Width | 246 mm |
Height | 120 mm |
Uniclass | |
CAWS | N13/335 Washbasins N13/30 Washbasins |
Specification data - Washbasin thermostatic water supply sets
Approval | Water Regulations Advisory Scheme (WRAS)-approved and TMV3. |
Form | Lever operated thermostatic mixer taps with detachable spout.Guidance for specification option:
|
Materials | |
Body | Brass. |
Finish and colour | Chrome-plated. |
Water supply temperature (maximum) | 41°C. |
WaterInletTemperatureRange | 85°C. Manufacturer guidanceMaximum inlet temperature. |
Operating pressure (maximum) | 5.0 bar (dynamic); 10.0 bar (static). Guidance for specification option: 1.0 bar dynamic (minimum operating pressure). |
Flow regulator | 5 L/min flow regulators fitted to hot and cold inlet. |
Accessories | Not required. SCBW117. Guidance for specification option: Purge kit for HBN clinical taps. |
Sustainability data
Material | Brass |
Literature
Bushboard Washrooms Brochure
Healthcare Brochure
Case studies
University Hospital Coventry
