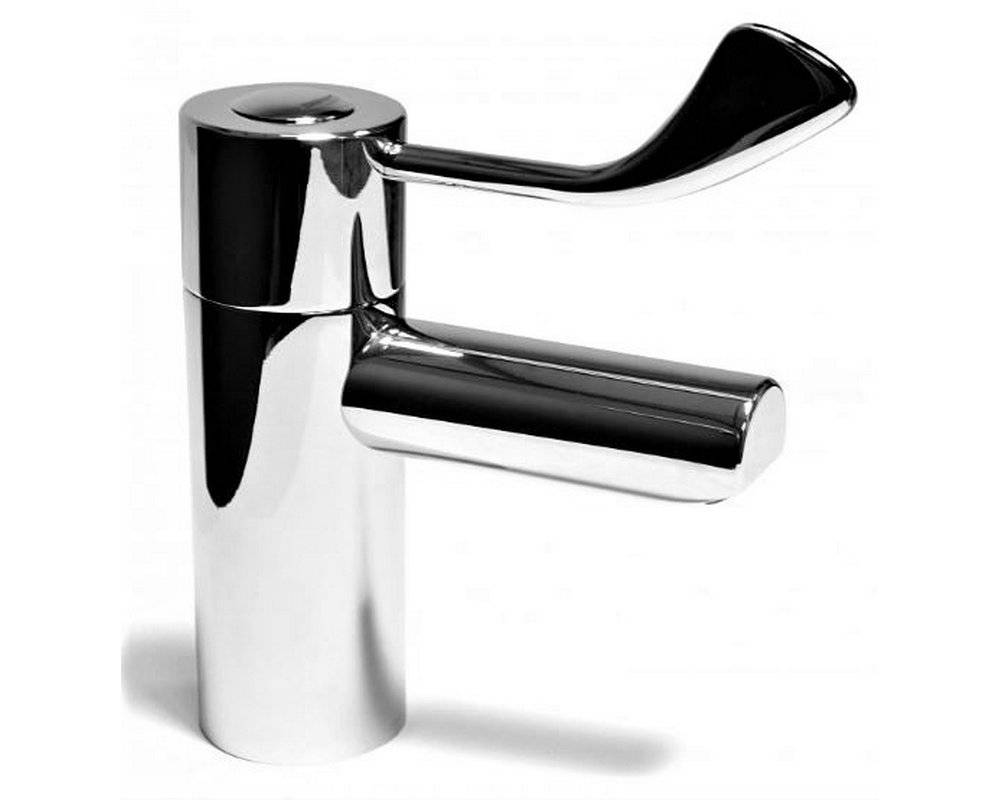

SanCeram Sequential Thermostatic Basin Mixer Tap
Verified by manufacturer 6 months ago
Lever operated sequential thermostatic deck mounted mixer tap.
Application
Suitable for deck-mounting in basin areas.
Description
Chrome plated lever operated sequential thermostatic deck mounted mixer tap.
Features and benefits:
- Simple smooth operation.
- Safe touch body.
- Supplied with flexi-tails.
- Self draining spout.
- HTM and HBN compliant.
- Water Regulations Advisory Scheme (WRAS)-approved and TMV3 approved.
General information
Color | Silver |
Finish | Chrome |
Material | Brass |
Shape | Other |
Height | 151.5 mm |
Warranty description | Ten year |
Uniclass | |
CAWS | N13/335 Washbasins N13/30 Washbasins |
Specification data - Washbasin thermostatic water supply sets
Approval | Water Regulations Advisory Scheme (WRAS)-approved and TMV3. |
Form | Thermostatic mixer taps. |
Materials | |
Body | Brass. |
Finish and colour | Chrome-plated. |
Flow rate (maximum) | 22 L/minute at 3.5 bar (un-regulated); 5 L/minute at 3.5 bar (regulator fitted). |
Water supply temperature (maximum) | 43°C. |
Integral accessories | Flexi-tails.Guidance for specification option: Supplied. |
WaterInletTemperatureRange | 85°C. Manufacturer guidanceMaximum inlet temperature. |
Operating pressure (maximum) | 10.0 bar static. Guidance for specification option: 0.2 bar dynamic (minimum operating pressure). |
Thermostatic mixing valve | TMV3 approved integrated thermostatic mixing valve. |
Height | 151.5 mm. |
Depth | 140 mm. |
Accessories | Not required. SCBW115. Guidance for specification option: Copper tail pack for HBN compliance. |
