Sargas Granite Paving

Verified by manufacturer 4 months ago

Flamed

Marshalls plc Variant:

Sawn granite paving from Portugal, with grey and blue colourings.

Jump to:
+44 (0)330 0574472 Website

Application

Available across all product areas including Paving, Setts, Kerbs, Tactile, Steps, Water Management, Bespoke Street furniture, Masonry & Specials – allowing for the creation of unified schemes.


Suitable for use as both pedestrian and vehicular trafficked areas.

Description

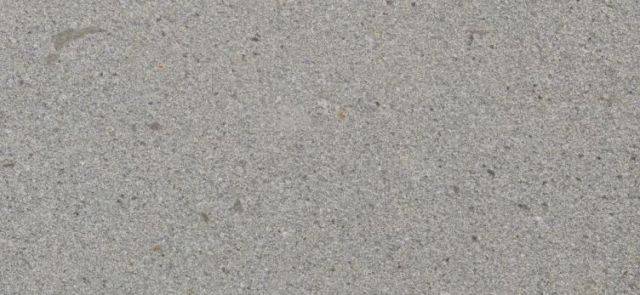

Sawn granite paving from Portugal, with a grey and blue grained finish.


Features and benefits:

  • Durable and hardwearing
  • Available in three finishes to suit project requirements
  • Matching kerbs and tactile paving are also available (specified separately). Colour variations and markings are characteristic of natural stone.
  • Allows for the creation of unified schemes.
  • UKCA marked, and manufactured in accordance with BS EN 1341:2012.

General information

Color

Grey

Blue

Manufacturer guidance

Includes a grey and blue grained finish.

Finish

Flamed

Honed

Shot blasted

Material

Granite

Size

-

Manufacturer guidance

To suit requirements, consult manufacturer for more information.

Length

200 mm

300 mm

450 mm

600 mm

Bespoke

Width

100 mm

150 mm

200 mm

450 mm

600 mm

Show more

Height

50 mm

60 mm

70 mm

Bespoke

Uniclass

Pr_25_93_60_58 Natural stone paving slabsPrimary

CAWS

Q25/26 Natural stone slab paving systems

Q25/310 Natural stone slabs

Specification data - Natural stone paving slabs

Standard

To BS EN 1341.

Stone denomination

-

Petrological family

Granite.

Colour

Grey to grey/blue.

Manufacturer guidance

A grey and blue grained finish.

Origin

Portugal.

Physical properties

-

Dimensions and associated tolerances

-

Nominal sizes

200 x 100 x 50 mm.

200 x 100 x 60 mm.

200 x 100 x 70 mm.

300 x 100 x 50 mm.

300 x 100 x 60 mm.

300 x 100 x 70 mm.

300 x 150 x 50 mm.

300 x 150 x 60 mm.

300 x 150 x 70 mm.

300 x 200 x 50 mm.

300 x 200 x 60 mm.

300 x 200 x 70 mm.

450 x 450 x 50 mm.

450 x 450 x 60 mm.

450 x 450 x 70 mm.

450 x 900 x 50 mm.

450 x 900 x 60 mm.

450 x 900 x 70 mm.

600 x 600 x 50 mm.

600 x 600 x 60 mm.

600 x 600 x 70 mm.

600 x 900 x 50 mm.

600 x 900 x 60 mm.

600 x 900 x 70 mm.

Tolerances on plan dimension and thickness (nominal)

Class 1.

Guidance for specification option:

Paving Class 1, Setts Class 2 tolerances to all dimensions as standard. Others by agreement.

Tolerances on diagonals

Class 1.

Guidance for specification option:

Paving Class 1, Setts Class 2 tolerances to all dimensions as standard. Others by agreement.

Tolerances on thickness

Class 1.

Guidance for specification option:

Paving Class 1, Setts Class 2 tolerances to all dimensions as standard. Others by agreement.

Finish

Flamed.

Performance requirements

-

Slip resistance

To BS 14231, 87 (dry); 79 (wet).

Breaking load

To EN 12372, 18.92 MPa.

Guidance for specification option:

(Lev = 15.84 MPa).

Water absorption (maximum)

To EN 13755, 0.22%.

Guidance for specification option:

(Hev = 0.24%).

Abrasion resistance

To EN 14157, 15.5 mm.

Guidance for specification option:

(Hev = 17 mm).

Durability

To EN 12371, 20.2/21.5 MPa.

Manufacturer guidance

Freeze-thaw.

Density

To EN 1936, 2720 kg/m³.

Porosity

To EN 1936, 0.4%.

Manufacturer guidance

Open porosity.

CompressiveStrength

To EN 1926, 131 MPa.

Light reflectance

30.78.

Surface roughness

54.79 Rz-μm.

Sustainability data

Country of material origin

Portugal

Embodied carbon

A1-A3 (production stage) as defined in BS EN 15804

-

Manufacturer guidance

Carbon footprint available on request.
