Series 3000 Recessed (High Output) CG-S - Central Battery Safety Luminaire

Verified by manufacturer 4 months ago

3503.1 Stainless Steel - 40071352900

Eaton Electric Variant:

Central battery safety luminaire with LED technology.

Jump to:
01753 608 700 Website

Application

Recessed and surface-mounted safety luminaires.

Description

The 3000 series of central battery safety luminaires enable especially efficient escape route illumination with a low connected load and thus low energy costs. Despite the small construction size, the range achieves similar values to the more watt-intensive luminaires with fluorescent lamps.


The service life of up to 50 000 hours of the LEDs significantly reduces maintenance costs. The wide light distribution optics of the high power LEDs enable wide light point spacing for both escape routes and for wide-area illumination.


Features and benefits:

  • Safety luminaire with LED technology for recessed mounting with round or quadratic bezel.
  • Typical ceiling cut-out diameter of 68 mm and low profile of only 30 mm.
  • Compact housing for LED supply (required height for entering the ceiling only 100 mm) including through-wiring clamp and strain relief.
  • Wide light point spacing due to wide light distribution optics and high power LEDs.
  • Up to 18 m from luminaire to luminaire for escape route illumination and wide-area illumination (3x03.1).
  • Up to 20 m from luminaire to luminaire for escape route illumination and wide-area illumination (3x04.1).
  • Minimum service requirement due to high service life of the LEDs (up to 50 000 hours).
  • Available in stainless steel and white housing.

General information

Color

White

Silver

Finish

Brushed

Material

Polycarbonate

Stainless steel

Steel

Shape

Circle

Square

Length

80 mm

Width

80 mm

Height

30 mm

Uniclass

Pr_70_70_48_71 Recessed luminairesPrimary
Pr_70_70_48_25 Emergency luminaires

CAWS

V90/510 General-purpose luminaires

V90/510 General purpose luminaires

V90/510 Luminaires

Specification data - Recessed luminaires

Third-party certification

ENEC mark.

Luminaire description

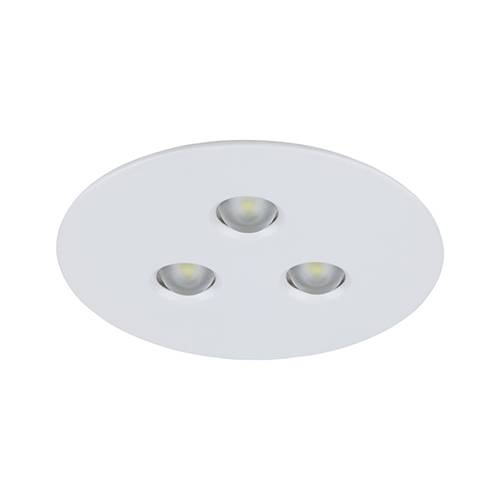

Round LED recessed luminaire with wide beam optics and three HighPower LEDs.

Classification

-

Ingress protection (minimum)

IP20.

Circumstances of use

Normal.

Rated maximum ambient temperature

40°C.

Guidance for specification option:

Permissible ambient temperature: -10 °C to +40 °C.

Controlgear position

Integral within luminaire.

Supply circuit conductor connections

Guidance for specification option:

Connection terminals: loop terminals 3 x 2.5 mm².

Nominal voltage

220–240 V a.c (50/60 Hz).
176–275 V d.c.

LED luminaires

-

Initial LED luminaire efficacy (minimum)

Guidance for specification option:

Light source: HighPower LEDs 3 x 1.1 W.

Wattage

4.4 W.

Guidance for specification option:

Power consumption mains operation (effective power): 7.6 VA.

Manufacturer guidance

Power consumption mains operation (apparent power).

Useful life

Luminous flux at end of rated operating time, 100%.

Emergency version

-

Classification

-

Type

Z.

Luminous flux

470 lm.

Inrush current

1.5 A.

Current

19 mA.

Manufacturer guidance

Current consumption - battery operation (220 V).

Housing

Bezel: stainless steel.
Module: polycarbonate.

Housing colour

Brushed stainless steel.

Dimensions

Ø80 mm.

Mounting

Recessed ceiling mounting.

Weight

Luminaire: 0.13 kg.
Module: 0.12 kg (incl. enclosure).

Literature

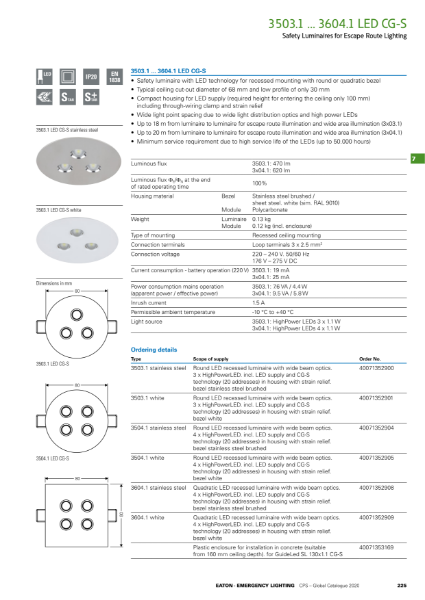

Series 3000 Recessed (High Output) CG-S
