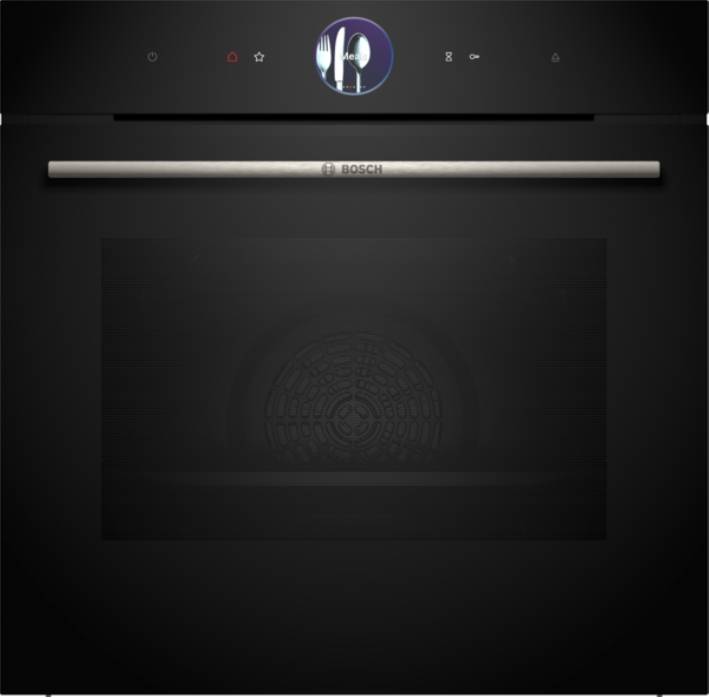

Built-in oven with steam function - HSG7584B1
Built-in oven with steam function - HSG7584B1
A range of built-in ovens with full steam/ no steam, digital control ring and TFT-touch display.
Application
For domestic applications.
Description
A range of built-in ovens with full steam/ no steam, digital control ring and TFT-touch display. Assist function for meals, air fry and Home Connect for control via the app. The steam versions include PerfectBake Plus and PerfectRoast Plus.
Features and benefits:
- Digital control ring: simple and intuitive oven control.
- Automatic switch-off: stops cooking as soon as the dish is done.
General information
Color | Black |
Material | Glass |
Shape | Rectangle |
Length | 548 mm |
Width | 594 mm |
Height | 595 mm |
Warranty description | Two year |
Uniclass | |
CAWS | N11/360 Appliances N11/40 Appliances N12/330 Cooking equipment N12/330 Cooking equipment |
Specification data - Built-in electric ovens
Arrangement | Single oven. |
Material and finish | Black. |
Dimensions | |
Height (maximum) | 595 mm. |
Width (maximum) | 594 mm. |
Depth (maximum) | 548 mm. |
Capacity (minimum) | 71 L – single oven. |
Shelving | One enamel baking tray; one grid; one universal pan; one steam container, punched, size XL; one steam container, punched, size M; one steam container, unpunched, size M. Five shelf positions. |
Doors | Drop down, soft open/ close. |
Features | Electronic, 23 functions including full steam, Digital Control Ring with TFT touchDisplay Pro, PerfectRoast Probe, PerfectBake Sensor. |
Rating | 3.6 kW. |
Electrical supply | 220–240 V, 50/60 Hz. |
EU energy label rating (minimum) | A+. |
Accessories | None. HEZ530000 Half tray. HEZ531010 Baking tray, non-stick ceramic coated. HEZ532010 Universal pan, non-stick ceramic coated. HEZ617000 Pizza pan, enamelled. |
BIM objects
NBS BIM Object Standard
This BIM object has been authored to meet the requirements of the NBS BIM Object Standard.
Find out more about the NBS BIM Object Standard.
| Platform | Compatible | Version |
|---|---|---|
 Revit | - | 1 |
 IFC | - | 1 |
Literature
Series 8, Built-in oven with steam function, 60 x 60 cm, Black HSG7584B1

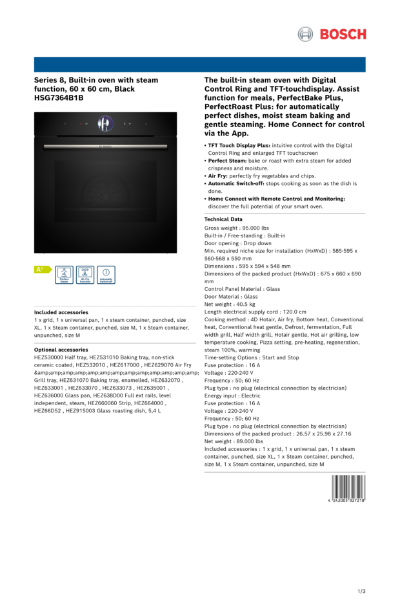

Series 8, Built-in oven with steam function, 60 x 60 cm, Black HSG7364B1B
Series 8, Built-in oven, 60 x 60 cm, Black HBG7341B1B
