Shadbolt Flush Fire Resisting Doorset FD90, FD120 - Fire doors

Verified by manufacturer 19 days ago

FD90

Shadbolt International Variant:

Fire resisting doorset achieving either 90 or 120 minute rating.

Jump to:
+44 (0)1376 333376 Website

Application

Suitable as internal flush doorsets providing 90 minutes or 120 minutes fire resistance.

Description

Shadbolt FD90 and FD120 are internal flush doorsets providing 90 minutes or 120 minutes fire resistance, fully tested and certificated. Supplied as factory-assembled doorsets only, to ensure fire performance.


Features and benefits:

  • Wide range of veneer species selection.
  • Lipping: Concealed or exposed edge lippings of 9 mm thickness in near matching hardwood, applied using radio-frequency glue without tongue to the two long edges. No rebates permitted to vertical edges of door.

General information

Finish

Matt

Guidance for specification option:

Door leaf and frame.

Gloss

Guidance for specification option:

Frame.


Satin

Guidance for specification option:

Frame.

Stained

Guidance for specification option:

Frame.

Material

Wood

Guidance for specification option:

Wood veneer, hardwood, and plywood.

Chipboard

Glass

Laminate

Guidance for specification option:

Plastic laminate.

Medium density fibreboard (MDF)

Shape

Rectangle

Length

Bespoke

Width

Bespoke

Manufacturer guidance

Maximum size.

Height

Bespoke

Manufacturer guidance

Maximum size.

Warranty description

One year

Uniclass

Pr_30_59_24_97 Wood doorsetsPrimary

CAWS

L20/410 Wood doorsets

L20/55 Doorsets

Product range

Non Fire Rated and Fire Rated Doors and Doorsets

Specification data - Wood doorsets

Third-party certification

QA Certificate.

Performance

-

Fire resistance

-

Integrity

To BS 476-22, 90 minutes.

Strength and durability

To BS EN 1191, 1192 and 12400, Class 4.

Guidance for specification option:

Severe duty.

Manufacturer guidance

Mechanical performance

Frame

-

Material

Hardwood.

Guidance for specification option:

640 kg/m³ (minimum).

Finish

Enamel satin lacquer.

High gloss clear polyester.

Semi-matt lacquer.

Stain, colour.

Guidance for specification option:

Insert requirements.

As door leaf.

Manufacturer guidance

Finish as delivered.

Consult manufacturer details of finishes that complement veneered doors.

Door leaf

-

Thickness

64 mm.

Core

Timber-based core.

Guidance for specification option:

With non-combustible mineral fibre insulation sub-facings, enclosed in high quality hardwood stiles and rails, faced overall with MDF, plywood or chipboard.

Facings

Plastic laminate, colour.

Guidance for specification option:

Alternative facing.

Insert requirements.

Wood veneer, species.

Guidance for specification option:

Insert requirements.

Manufacturer guidance

Consult manufacturer available facings, details, and product references.

Species

-

Manufacturer guidance

Consult manufacturer's available species.

Lippings

Lip two vertical edges concealed.

Lip two vertical edges exposed.

Finish

Semi-matt lacquer.

Guidance for specification option:

For wood veneer facings.

Two coats of high-solid acid-catalysed semi-matt (20% gloss).

Semi-matt polyurethane lacquer.

Guidance for specification option:

For wood veneer facings.

Two coats of high-solid acid-catalysed semi-matt (20% gloss).

Semi-matt UV cured lacquer.

Guidance for specification option:

For wood veneer facings.

Two coats of high-solid acid-catalysed semi-matt (20% gloss).

Coloured plastic laminate.

Guidance for specification option:

For plastic laminate finish.

Consult with manufacturer for exact details and product references.

Manufacturer guidance

Finish as delivered



Hardware

As schedule.

Guidance for specification option:

Insert requirements.

Architraves

-

Material

Hardwood.

Guidance for specification option:

640 kg/m³ (minimum).

Glazed aperture

Not required.

Clear laminated.

Guidance for specification option:

Insert thickness and style requirements.

Clear toughened.

Guidance for specification option:

Insert thickness and style requirements.

As drawing.

Guidance for specification option:

Insert requirements.

Rounded vertical edges

Not required.

Required.

Sustainability data

Contains Red List materials

No

Country of material origin

Europe

Country of product manufacture

United Kingdom

Embodied carbon

A1-A3 (production stage) as defined in BS EN 15804

0.72 kg CO₂ eq/m³

Self declared

Literature

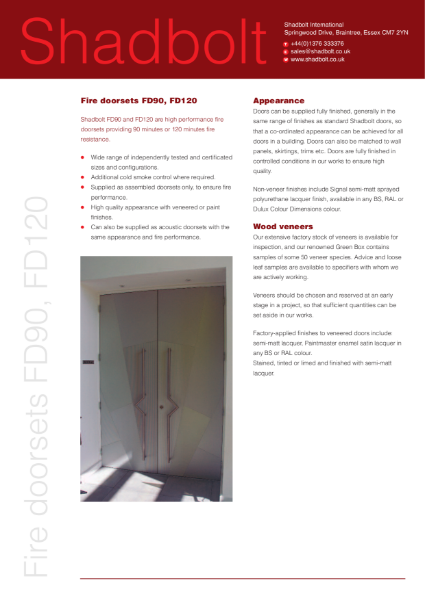

Fire doorsets FD90, FD120

Fire doorsets FD90, FD120
