Shadmaster Fire Doorset FD30, FD60 - Fire doors

Verified by manufacturer 19 days ago

FD30/ E30

Shadbolt International Variant:

Solid core flush doorset.

Jump to:
+44 (0)1376 333376 Website

Application

Suitable for large door sizes that require 60 minutes fire rating and other top performances.

Description

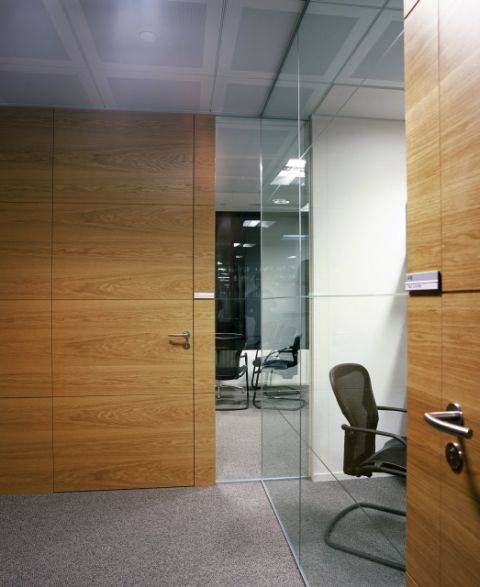

Shadmaster doors have a laminboard core construction and may be used where exceptionally large sizes or greater fire resistance (up to 60 minutes) are required.

They also provide a quality surface for veneering and good mechanical and acoustic performance.


Features and benefits:

  • Door leaf accuracy: maximum permitted deviations in flatness and squareness are less than half those permitted by BS 5277 and 5278 (up to 60 minutes performance).
  • Door leaves can be supplied in extended sizes, including storey height, without compromising performance.
  • The standard Shadmaster construction combines high performance for fire resistance, sound insulation and mechanical properties (up to 60 minutes performance).
  • Door leaves of co-ordinated appearance can be used throughout a scheme, irrespective of performance for individual doors.
  • Glazed apertures can be included without compromising performance.
  • Can be supplied as doorsets complete with frames, seals and ironmongery, glazing where required, with validated fire performance, and generally fully finished.

General information

Finish

Satin

Guidance for specification option:

Frame.

Gloss

Guidance for specification option:

Frame.

Matt

Guidance for specification option:

Frame and door leaf facing.


Stained

Guidance for specification option:

Frame.

Material

Laminate

Guidance for specification option:

Plastic laminate.

Wood

Guidance for specification option:

Wood veneer, hardwood, and softwood.

Glass

Medium density fibreboard (MDF)

Shape

Rectangle

Length

Bespoke

Guidance for specification option:

Maximum size.

Width

Bespoke

Guidance for specification option:

Maximum size.

Height

Bespoke

Warranty description

One year

Uniclass

Pr_30_59_24_97 Wood doorsetsPrimary

CAWS

L20/410 Wood doorsets

L20/55 Doorsets

Product range

Non Fire Rated and Fire Rated Doors and Doorsets

Specification data - Wood doorsets

Third-party certification

QA Certificate.

Doorset size

As drawing.

As schedule.

Manufacturer guidance

Maximum 1500 x 3000 mm.

Performance

-

Fire resistance

-

Integrity

To BS 476-22 and BS EN 1634-1, 30 minutes.

Acoustic performance

Not applicable.

Strength and durability

To BS EN 1191, 1192 and 12400, Class 4.

Guidance for specification option:

Severe duty.

Manufacturer guidance

Mechanical performance.

Frame

-

Material

Hardwood.

MDF.

Softwood.

Manufacturer guidance

Non fire, FD30, FD60 and Sound insulating.

Manufacturer's choice to comply with performance and appearance required.

Finish

Enamel satin lacquer.

High gloss clear polyester.

Semi-matt lacquer.

Stain.

Guidance for specification option:

Insert requirements.

As door leaf.

Manufacturer guidance

Finish as delivered.

Consult manufacturer details of finishes that complement veneered doors.

Door leaf

-

Thickness

44 mm.

54 mm.

Core

Solid core.

Guidance for specification option:

Solid timber comprising narrow laminated spruce sections.

Facings

Plastic laminate, colour.

Guidance for specification option:

Alternative facings.

Insert requirements.


Wood veneer, species.

Guidance for specification option:

Available in wide ranges.

Insert requirements.

Paint lacquer.

Guidance for specification option:

Alternative facings.

Manufacturer guidance

Consult with manufacturer for exact details and product references.

Species

Guidance for specification option:

Consult manufacturer's available species.

Lippings

Lip two vertical edges concealed.

Lip two vertical edges exposed.

Lip four edges concealed.

Lip four edges exposed.

Manufacturer guidance

Minimum 7 mm thickness in near matching hardwood, applied using radio-frequency glue without tongue to the two long edges or all four edges.

Finish

Semi-matt lacquer.

Guidance for specification option:

For wood veneer facings.

Two coats of high-solid acid-catalysed semi-matt (20% gloss).

Semi-matt polyurethane lacquer.

Guidance for specification option:

For wood veneer facings.

Two coats of high-solid acid-catalysed semi-matt (20% gloss).

Semi-matt UV cured lacquer.

Guidance for specification option:

For wood veneer facings.

Two coats of high-solid acid-catalysed semi-matt (20% gloss).

Coloured plastic laminate.

Guidance for specification option:

For plastic laminate finish.

Consult with manufacturer for exact details and product references.

Coloured paint lacquer.

Guidance for specification option:

Consult with manufacturer for exact details and product references.

Manufacturer guidance

Finish as delivered.

Hardware

As schedule.

Guidance for specification option:

Insert requirements.

Architraves

-

Material

Hardwood.

MDF.

Softwood.

Manufacturer guidance

Non fire, FD30, FD60 and Sound insulating.

Manufacturer's choice to comply with performance and appearance required.

Glazed aperture

Not required.

FD30 clear glass 7.2 mm.

As drawing.

Guidance for specification option:

Insert requirements.

Rounded vertical edges

Not required.

Required.

Sub frame

18 mm MDF/ softwood assembled and braced.

Sustainability data

Contains Red List materials

No

Country of material origin

Europe

Country of product manufacture

United Kingdom

Embodied carbon

A1-A3 (production stage) as defined in BS EN 15804

0.72 kg CO₂ eq/m³

Self declared
