Siderise CVB/C10 Acoustic Cavity Barrier for Curtain Walling - Stonewool Acoustic Cavity Barrier
Verified by manufacturer 1 month ago
The Siderise CVB/C10 is a stonewool acoustic cavity barrier incorporating a central polymeric mass barrier layer. It is designed for use as a mass line below horizontal firestopping in curtain walls.
Application

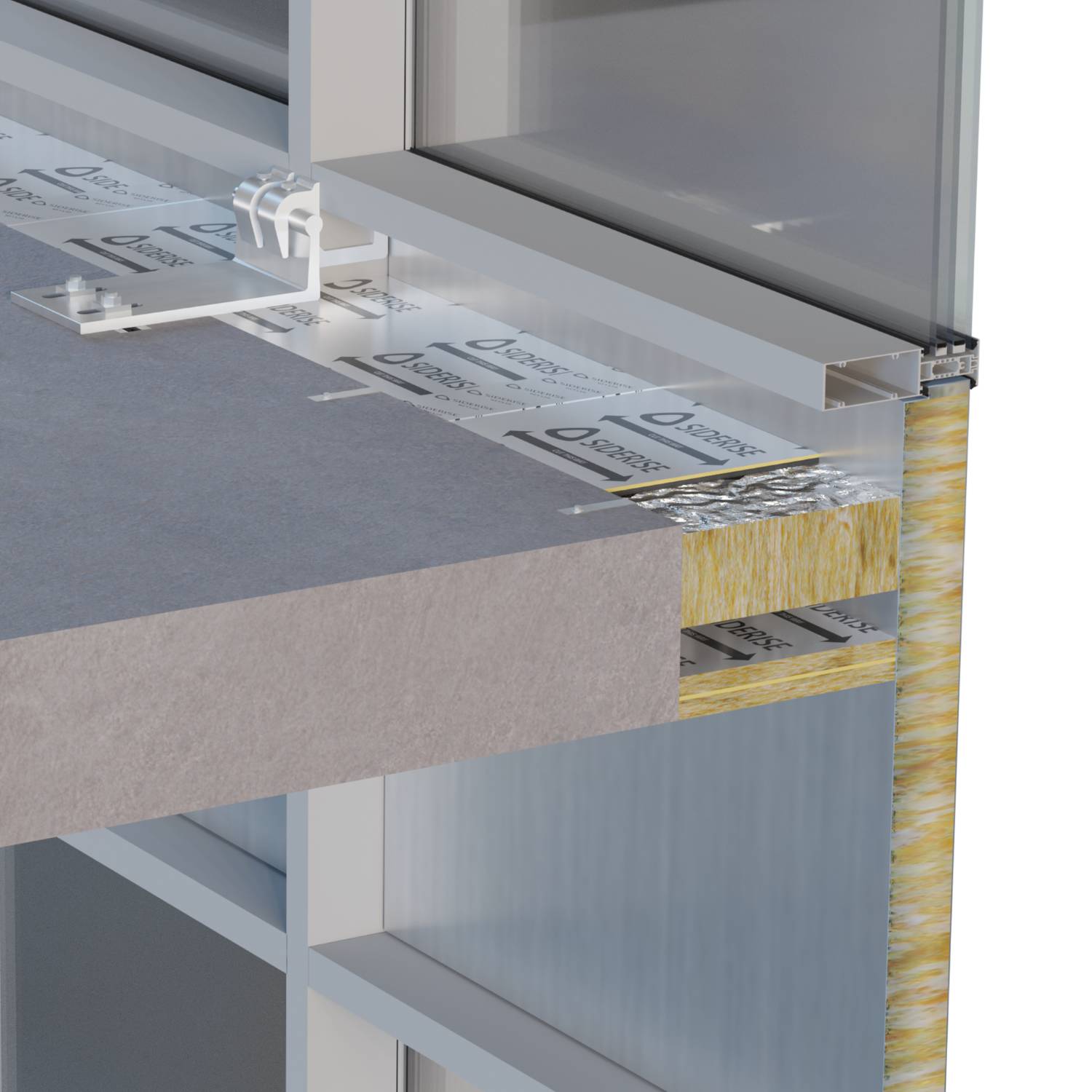

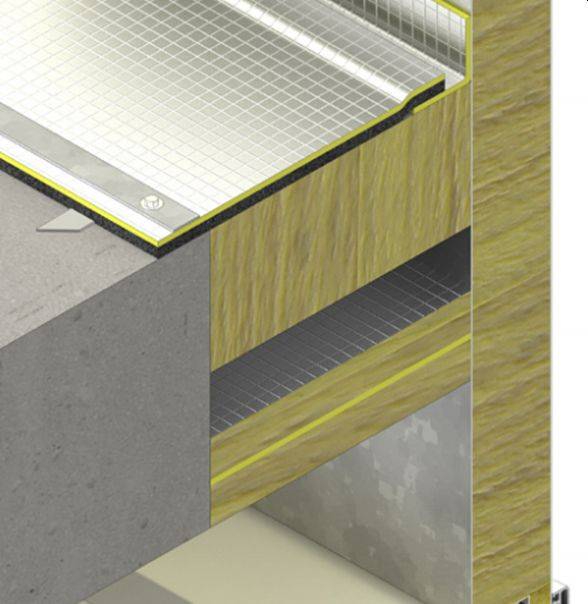

The Siderise CVB/C10 is a stonewool cavity barrier incorporating a central polymeric mass barrier layer. It is designed for use as a mass line below horizontal firestopping in curtain walls to improve acoustic performance via the critical slab edge void.
Using this acoustic upgrade can offer a significant improvement to the acoustic performance of the firestop. Incorporating mass barriers such as the Siderise CVB/C10 into slab-edge details is often crucial for controlling floor-to-floor sound transmission.
Siderise CVB/C10 is quick and easily to install, and is suitable for use in all curtain walls. The product is thin and flexible, and is designed to accommodate façade movement, unlike traditional mass-barrier materials such as steel or plasterboard.
Description
Siderise CVB/C10 consists of a thin, flexible polymeric mass barrier core offering 10 kg/m² of surface mass to resist sound transmission. This is surrounded by high density stonewool on both sides. The faces are reinforced with aluminium foil. The entire product is 55 mm thick.
Acoustic considerations
The fire stop between the floor slab and façade represents a point of significant potential weakness in vertical sound transmission between floors.
Our facades technical team can provide guidance around using this acoustic upgrade to meet the project acoustic performance requirements.
Features and benefits:
- The Siderise CVB/C10 reduces floor-to-floor sound transmission.
- The Siderise CVB/C10 is Ideal for remedial treatment after installation of fire stops.
- The Siderise CVB/C10 accommodates façade movement.
- Quick and easy to install.
- Offering 32 dB(Rw); (mass barrier layer only).
General information
Color | Silver Other Manufacturer guidanceOther coloured facing options also available, consult manufacturer for details. |
Finish | Foil |
Material | Aluminium Guidance for specification option: aluminium foil facing to both sides. Rock fibre Guidance for specification option: High-density resin bonded rock fibre insulation core. |
Shape | Rectangle |
Length | 1200 mm |
Width | 1000 mm |
Height | 55 mm |
Uniclass | |
CAWS | P10/432 Cavity barriers H11/780 Thermal insulation |
Product range |
Specification data - Mineral wool sound insulation
Density | Manufacturer's standard. |
Thickness (minimum) | 55 mm. |
Facing | Foil to both sides. |
Fire performance | To BS EN 13501-1, B-s2, d0. |
Weighted sound reduction index, Rw | 32 dB Rw. Manufacturer guidanceCVB/C10 (mass barrier layer only). The following arrangement provided the Weighted Sound Reduction Index (RW) value as stated, when tested in a sound laboratory in accordance with BS EN ISO 140-3 and rated to BS EN 717-1:
|
Material and finish | High-density resin bonded rock fibre insulation core with aluminium foil facing to both sides. |
Weight | 10.5 kg/m². |
Width (nominal) | 1000 mm. Guidance for specification option: Length: 1200 mm. |
Sustainability data
Material | Aluminium Guidance for specification option: aluminium foil facing to both sides. Rock fibre Guidance for specification option: High-density resin bonded rock fibre insulation core. |
Literature

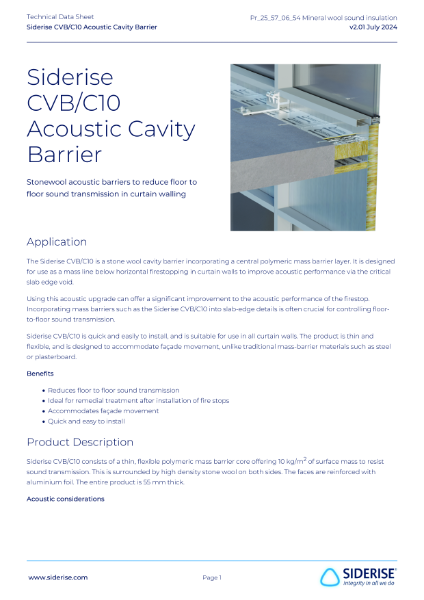

Siderise CVB/C10 Acoustic Cavity Barrier for Curtain Walling – Technical Data v2.02
