Sika® CarboShear L - Carbon Fibre Shear Links
Verified by manufacturer 27 days ago

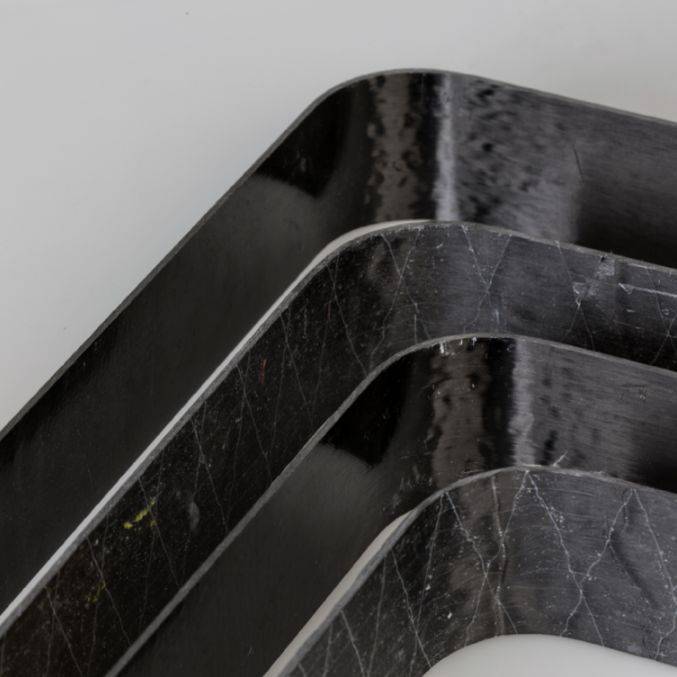

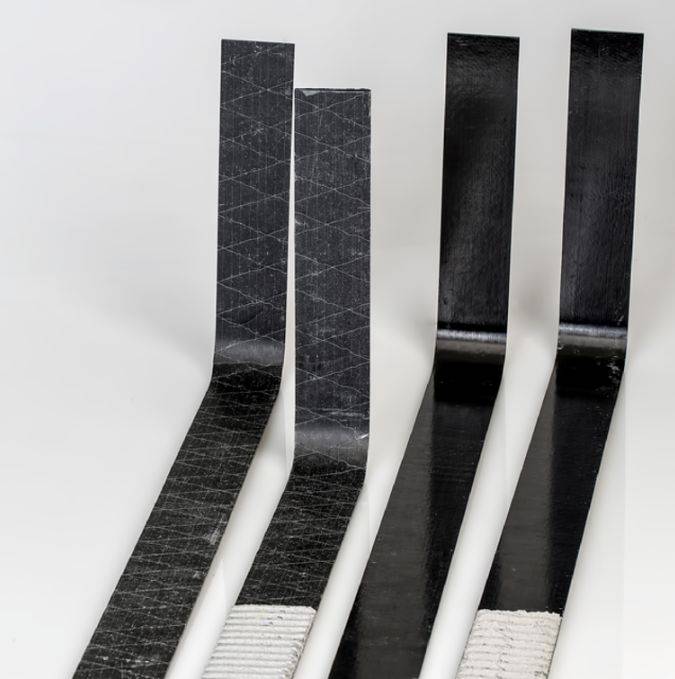

Sika® CarboShear® L, type 4/20/50
Sika® CarboShear® L, type 4/20/50
Carbon fibre shear links for structural strengthening as part of the Sika® CaroboDur® carbon fibre-reinforced polymer (CFRP) strengthening system.
Application
Used to improve, increase or repair the performance and shear resistance of structures for:
Increased load carrying capacity:
- Increasing the load capacity of beams;
- For the installation of heavier machinery;
- For changes in building use.
Damage to structural elements due to:
- Deterioration of the original construction materials;
- Steel reinforcement corrosion;
- Accidents: vehicle impact, earthquakes, fire etc.
Improvement of serviceability and durability:
- Reduced deflection and crack width;
- Stress reduction in the steel reinforcement;
- Improved fatigue resistance.
Change of the structural system:
- Removal of walls and/or columns;
- Removal of floor and wall sections to create access/openings;
- Changed design philosophy.
To repair design or construction defects such as:
- Insufficient / inadequate reinforcement;
- Insufficient / inadequate structural depth.
Description
Carbon fibre shear links for structural strengthening as part of the Sika® CaroboDur® carbon fibre-reinforced polymer (CFRP) strengthening system.
Designed for strengthening concrete structures in shear and to anchor Sika® CarboDur® plates at their ends.
Features and benefits:
- Tested anchorage system.
- Non-corroding.
- Very high strength and durability.
- Shear and bursting enhancement.
- Well defined anchoring.
- Lightweight.
- Low overall thickness, can be over coated.
- Easy transportation.
- Easy installation – no heavy handling and installation equipment.
- Outstanding fatigue resistance.
- Minimal preparation of the shear links is required.
- Minimal aesthetic impact.
- Sika® CarboShear L shear links are bonded as external reinforcement using Sikadur®-30 epoxy resin-based adhesive for normal temperatures during application.
General information
Color | Black |
Material | Polymer Guidance for specification option: Carbon-fibre-reinforced with an epoxy matrix. |
Shape | Other Guidance for specification option: L-shape. |
Length | 500 mm Guidance for specification option: Short leg length: 200 mm. 700 mm Guidance for specification option: Short leg length: 300 mm. 1000 mm Guidance for specification option: Short leg length: 500 mm. 1500 mm Guidance for specification option: Short leg length: 800 mm. Manufacturer guidanceLong leg length (product is L-shaped. |
Width | 40 mm |
Height | 2 mm Guidance for specification option: Nominal thickness. |
Uniclass | |
CAWS | E30/240 Proprietary prefabricated reinforcement F30/265 Support system G10/135 Hollow steel sections G12/330 Proprietary metal members G20/230 Structural softwood (strength class not specified) G20/210 Structural softwood (graded direct to strength class) G20/250 Structural hardwood (graded direct to strength class) G20/260 Structural hardwood (strength class not specified) G20/345 Proprietary structural wood composite G20/336 Structural wood composite G20/7 Structural hardwood G20/5 Structural softwood G10/17 General steel sections G20/17 Structural wood composite G12/30 Proprietary |
Specification data - Fibre-reinforced polymer plates
Accessories | Guidance for specification option: Consult manufacturer for options and insert requirements or omit. |
Form | Carbon fibre reinforced polymer with an epoxy matrix, black. Guidance for specification option: Fibre volume content: >56%. |
Width | 40 mm. |
NominalThickness | 2 mm. |
Tensile strength | >1350 N/mm² (mean). Guidance for specification option: Value in the longitudinal direction of the fibres, considering a nominal thickness of 2 mm. |
Modulus of elasticity | 95 000 MPa (mean). Guidance for specification option: Value in the longitudinal direction of the fibres, considering a nominal thickness of 2 mm. |
Elongation at break | >1.3% (mean). Guidance for specification option: Value in the longitudinal direction of the fibres, considering a nominal thickness of 2 mm. |
Fixing | Sikadur®-30 epoxy resin-based adhesive. Guidance for specification option: For normal temperatures during application and/or service. Sikadur®-33. Guidance for specification option: Consult manufacturer for details. Other. Guidance for specification option: Consult manufacturer for options and insert requirements. |
Dimensions | Short leg length: 200 mm; long leg length: 500 mm. |
Literature
Product Data Sheet - Sika® CarboShear L
